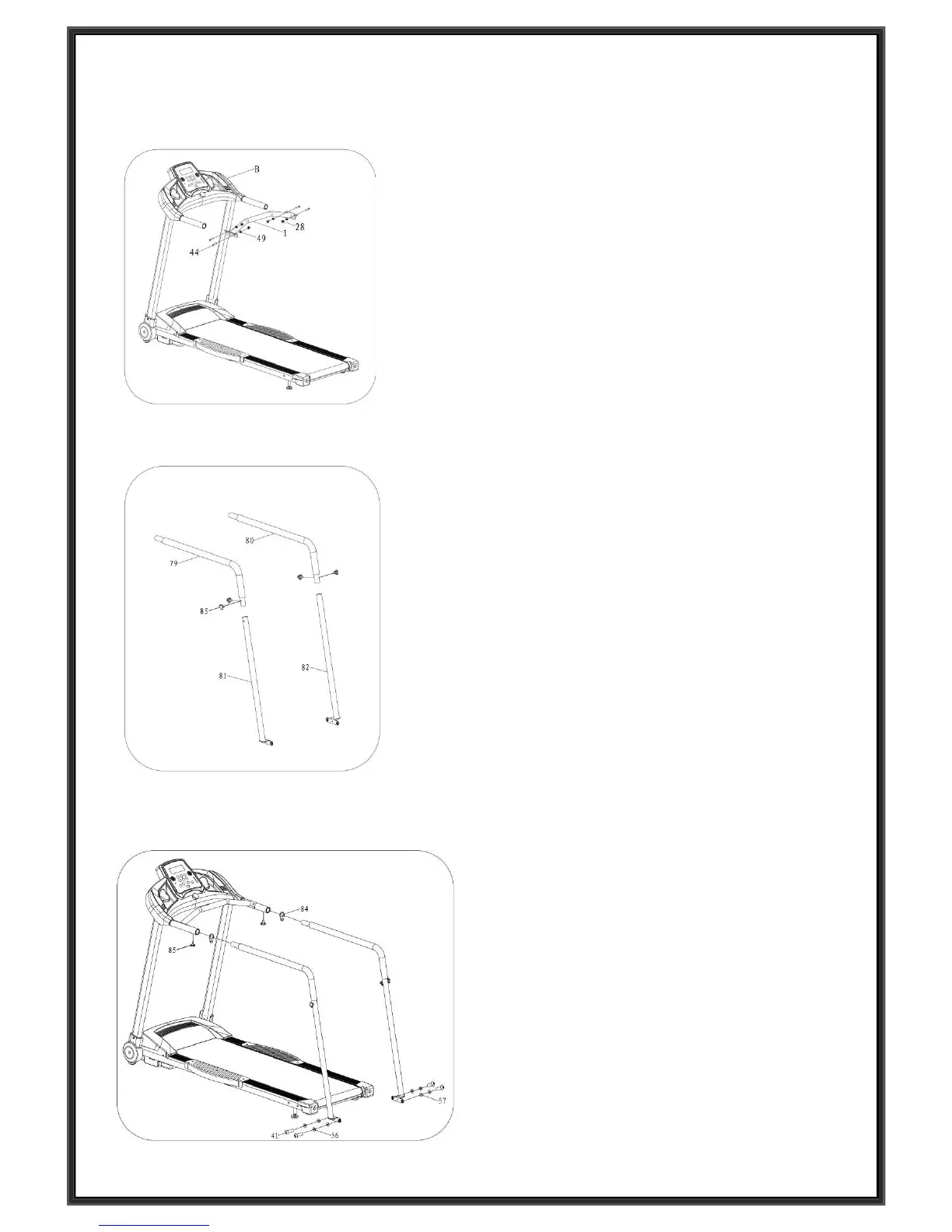

Fix the connecting tube (1) to the
console handle bar with Bolt M8*50(44),
arc washer (49) and nut (28).
Connect Left handlebar (79) with Left
support tube (81) and Right handlebar
(80) with Right support tube (82).
Note: Don’t mix the parts of left and
right handlebar.
1、 Fix the left and right handlebar assembly (79,
80) to the console handlebar with Triangle knob
M6*10(85).
2. Fix the left and right handlebar assembly (79,
80) to the base frame with bolt M8*25(41) and
spring washer (56), flat washer (57.)
To Next Page
