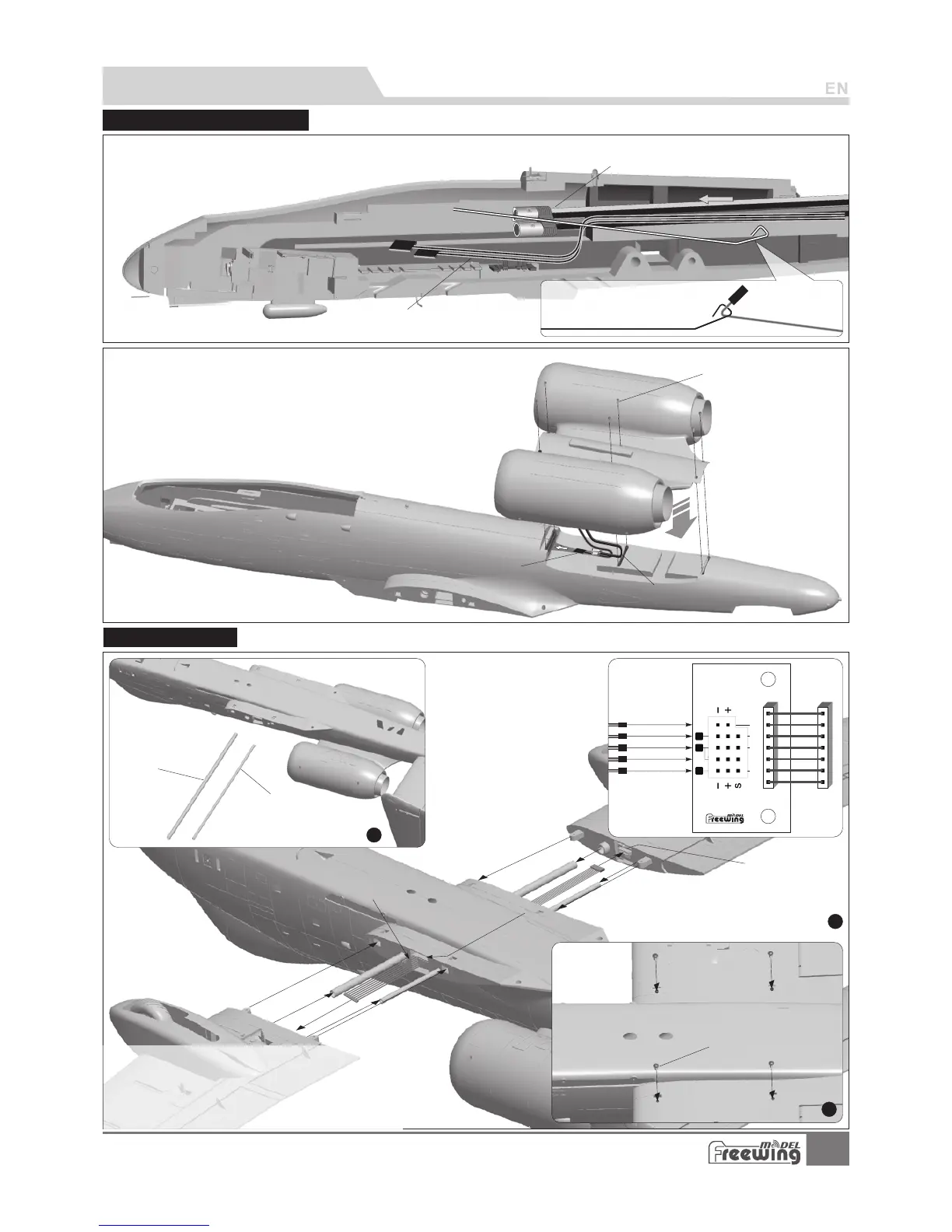

Freewing 80mm A-10 - Engine Compartment Assembly; Main-Wing Assembly

Engine compartment assembly
Step
2
4
EC5
1.Use the metal wire to pull the ESC cable and throttle cable to the battery compartment.
2.Assemble the engine compartment to the rear of fuselage.
3.Use 6 screws to secure it。
Screw ( 6pcs)PA3x12
Step
1
A I L
FLAP
GEAR
LIGHT
1
6
5
Airleron
Flap(Two)
Landing gear
Wing tip lights
Flap(One)
Mai
n w
ing trough port
Carbon tube A
(Ø12x570mm)
Carbon tube B
(Ø8x650mm)
Step
3
Ribbon wire
Control board
1.Insert the carbon tubes
A and B into the fuselage.
2.Insert the connection cable to the control board,
then install the left and right main wings to the
fuselage.
3.Use 4 screws to secure the main wing.
Screw
(PWM4x8 4pcs)
Throttle wire
Battery compartment
Steel wire
ESC/Battery wire
Back of fuselage
ESC/Battery wire
Throttle wire
PNP Assembly instructions
Mainwing assembly
A-10 Thunderbolt II
Item No.:FJ311
