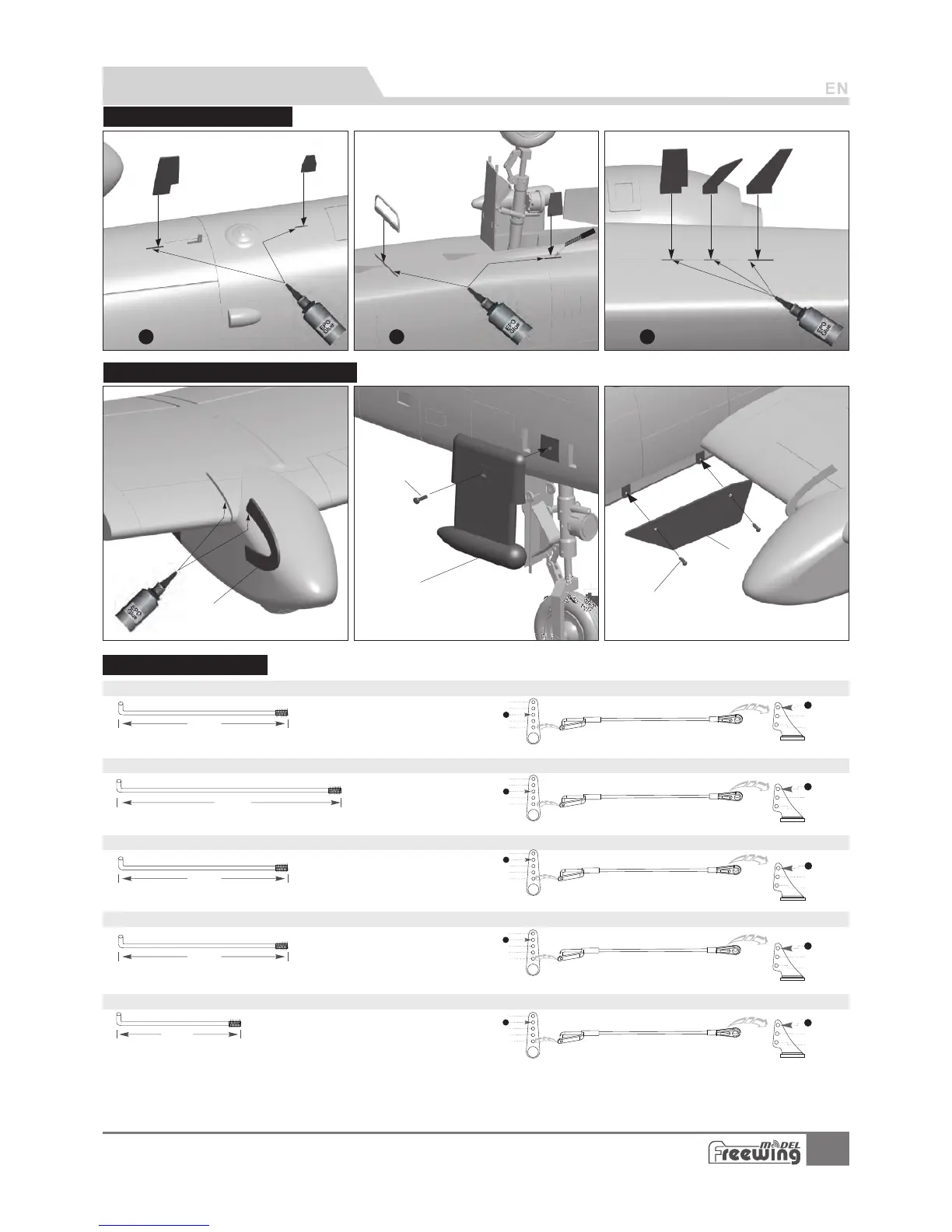

Freewing 80mm A-10 - Pushrod Installation

Step
1
Step
2
Step
3
Screw
(PM3x6 1pcs)
Radar
Screws
(PA3x8 2pcs)
Wing fence
34mm
63mm
(2-1/2")
2
3
1
4
5
1
2
3
48mm
(1-7/8")
2
1
4
5
3
1
2
3
76mm
(3")
63mm
(2-1/2")
2
1
4
5
3
1
2
3
63mm
(2-1/2")
PNP Assembly instructions
Antennalnstallation
Pushrod instructions
Flap pushrod size(Outside) Flap pushrod mounting hole(Outside)
Flap pushrod size(Inside) Flap pushrod mounting hole(Inside)
Aileron pushrod size
Aileron pushrod mounting hole
Rudder pushrod size
2
3
1
4
5
1
2
3
Rudder pushrod mounting hole
Elevator pushrod size
Elevator pushrod mounting hole
Pushrod diameter Ø1 .5 mm
Pushrod diameter Ø1 .5 mm
Pushrod diameter Ø1 .5 mm
Pushrod diameter Ø1 .5 mm
Pushrod diameter Ø1 .5 mm
2
3
1
4
5
1
2
3
Radar and Wing Fence Installation
6
A-10 Thunderbolt II
Item No.:FJ311
Stabilizer wing
