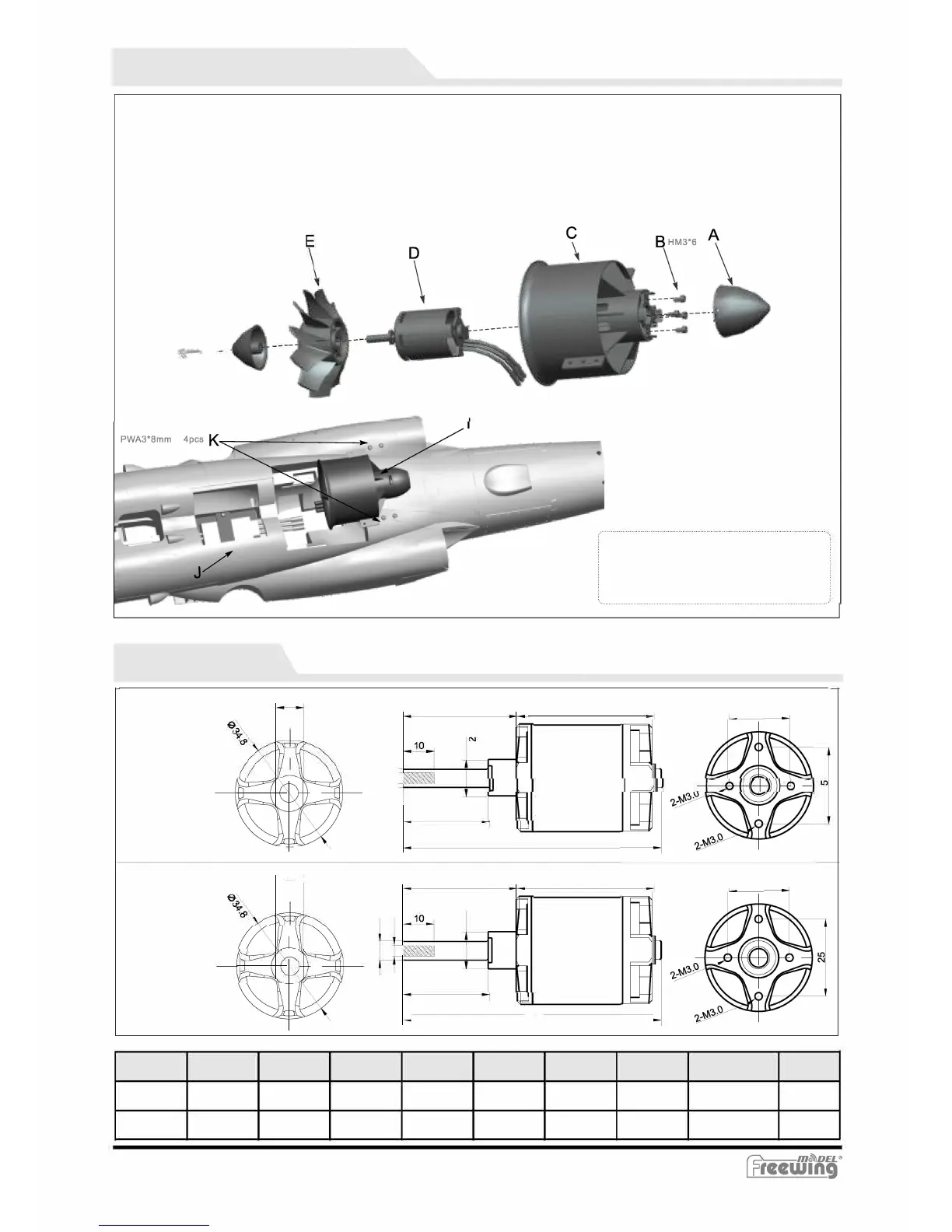

Power System Installat
i
on
EN
1.
Slide the "Motor(D)" into the "Ducted fan housing(C)".
2.
Join the "Motor(D)" to the "Ducted fan housing(C)" using 4 "Cup head screws(B)".
3.
Slide the "Rotor(E)" onto the motor shaft.
( During this process, please note the flat spot of rotor should align with the flat spot of the motor shaft )
4.
Use "Spinner(F)" to cover the rotor, and use the "Cup-head-screw(G)"to secure it to the motor shaft.
5.
Place the "Tail air-deflector(A)" onto the "Ducted fan housing(C)", and use 2 "Grub screws(H)" to secure it.
6.
Connect the motor to the ESC.
7.Put the "assembled "EDF(I)" into the fuselage.
8.Use 4 "Screws(K)" to secure the "EDF (I)" to the fixed wood platform.
Motor Parameters
MOJ35251
0
0 0
M
For 4S Battery
r
Standard
Version
MOJ35301
0
0
0
M
For 6S Battery
N
Upgrade
Version
I
I
I
/.
H
&
Note: When the ESC and battery are
connected, keep your fingers at a safe
distance and do not attempt to touch
the unit. When testing the EDF, use a
safety test stand. Failure to do so
may cause injury.
N
-10-
