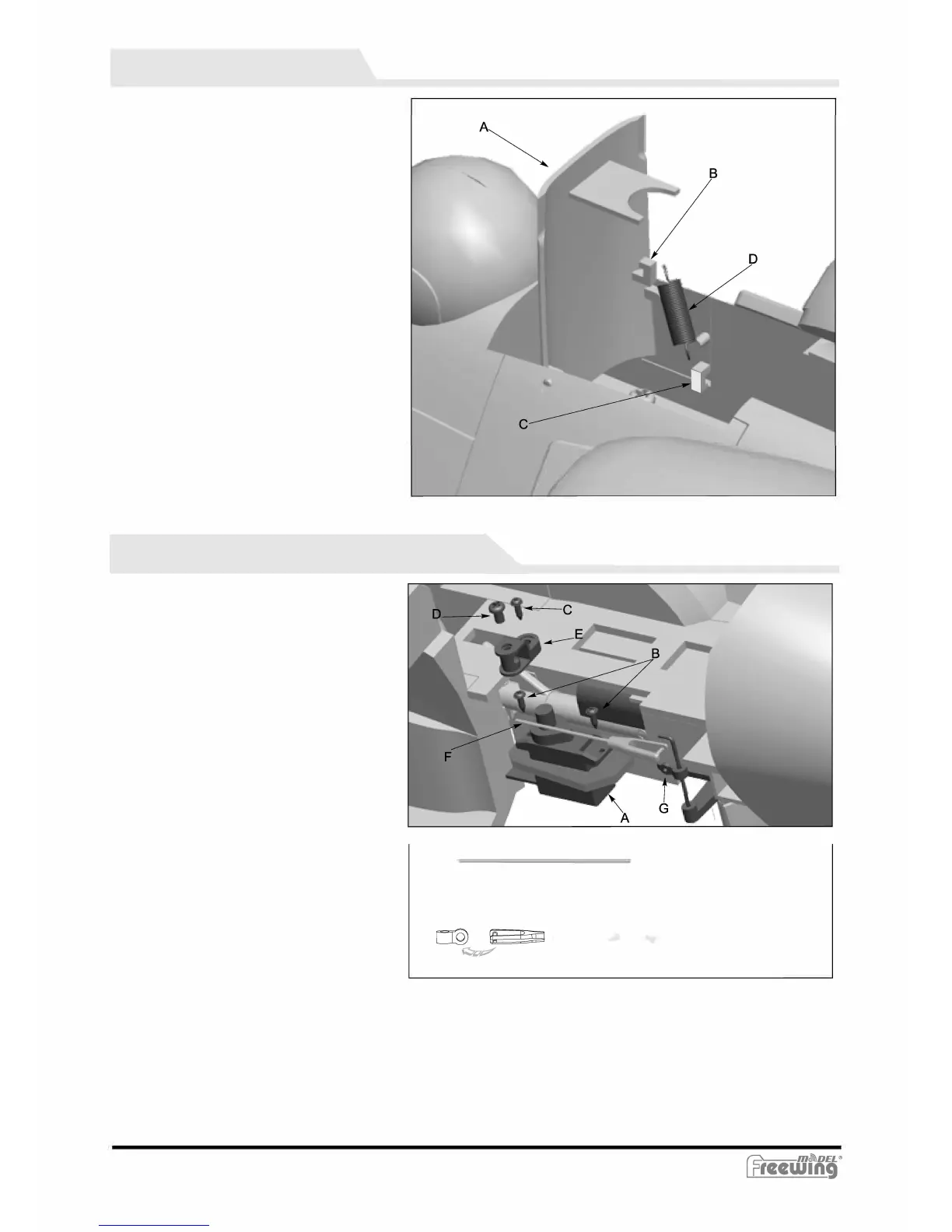

Nose cabin door list:
A- Nose gear door
B - Door hook1
C - Door hook2
D- Spring
1.
Attach the "Nose gear door(A)" to the fuselage.
2.
Use "Spring
(D)"
to connect the "Door hook1(B)" o
the "Door hook 2
(C)".
Accessories list
A- 9g servo
B - Screw
(PWA2'B)
C - Screw
(PWA1.7'5)
D - Screw
(PM3'6)
E - U-shape servo arm
F - Push rod
G - Landing gear steering control ring.
EN
A-BE Intruder
-7-
-►I
t
□
Nose Gear Door Installation
Nose Gear Steering Servo Installation
Place the "9g servo(A)" onto the wooden
mount.
Use "Screws(B)" to secure the servo.
Place the "Servo arm(E)" on the pin of the
servo and use "Screw(C) to anchor it.
4.
Snap the clevis onto the "Pushrod
collar(G)"and slide the open end of the
"Pushrod(F)" into the "Servo arm(E)".
5.
Center the nose wheel then lock the
pushrod into place using "Screw(D)".
