Hor
i
zo
ntal
S
ta
b
ili
zer
Installati
o
n
we have installed all the servo boxes
in the
aircraft,
when
pilots remove the servo,
it
will
not damage thefoam surface. If you need to
replace servo, please purchase Freewing
servo ,or refer to the following drawing to
choose the correct size servo.
3 3 3 3
3 3
3 3
01111
in)
-4-
2
t.
A. Screws (PT3x5mm 2pcs)

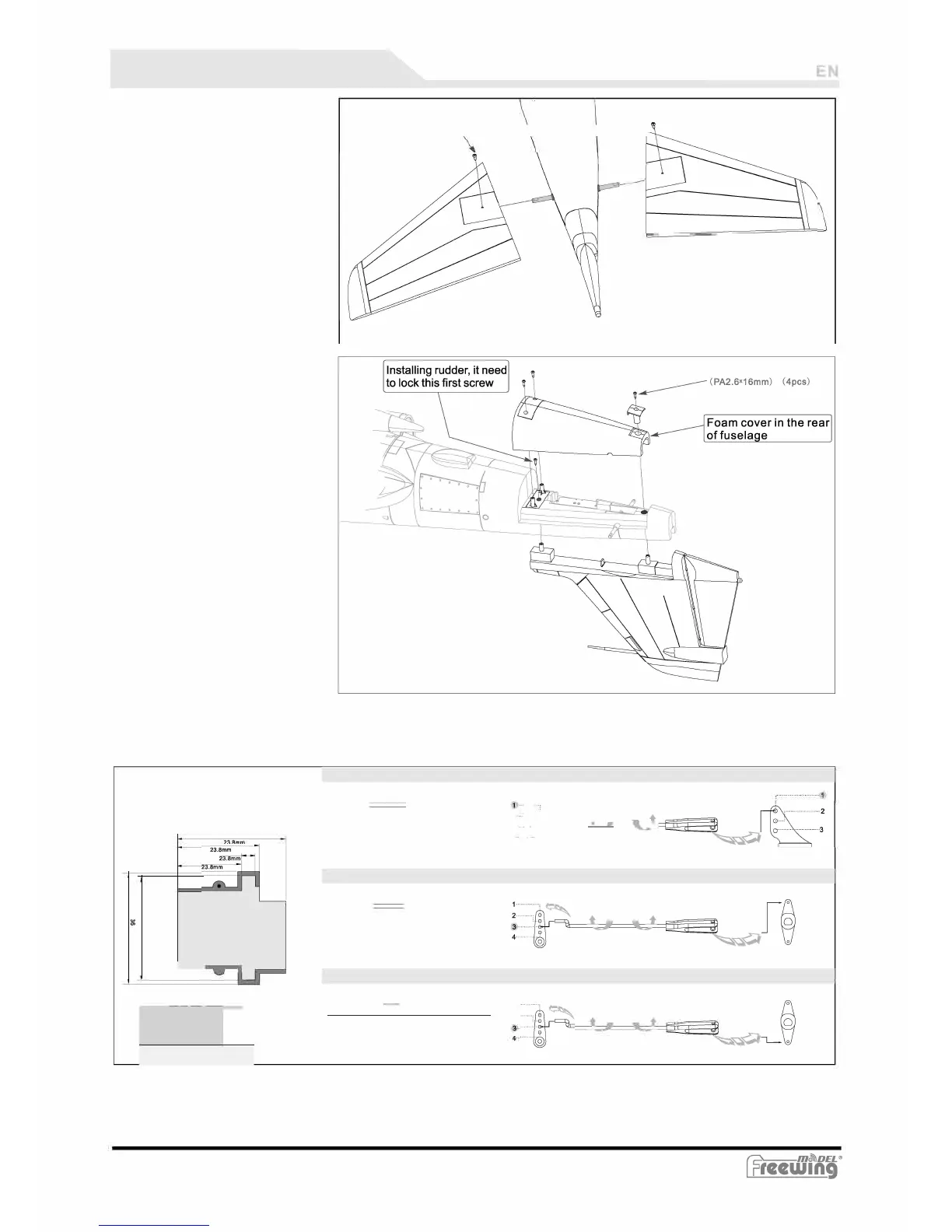

1. Ensure that the flat points of the
"Elevator rotation shaft" are aligned
with the screws that anchor the
Horizontal Stabilizers. If they aren't
aligned, the surfaces will not be
securely anchored and there is a
possibility of them coming loose
during flight.
2. Connect the rudder servo cable to
the extension cable in the fuselage.
3. Slide the Vertical Stabilizer into the
rear of the fuselage and insert the
screw into the bottom of the
fuselage and tighten it to anchor the
Vertical Stabilizer.
4. Place the foam cover over the
fuselage anchor port and secure it
with the 3 screws. Note the plastic
hard points that the screws feed
into.
Refer to the diagrams on the right
