M
ain Gear
A
sse
mbly
and
I
nsta
ll
ati
o
n

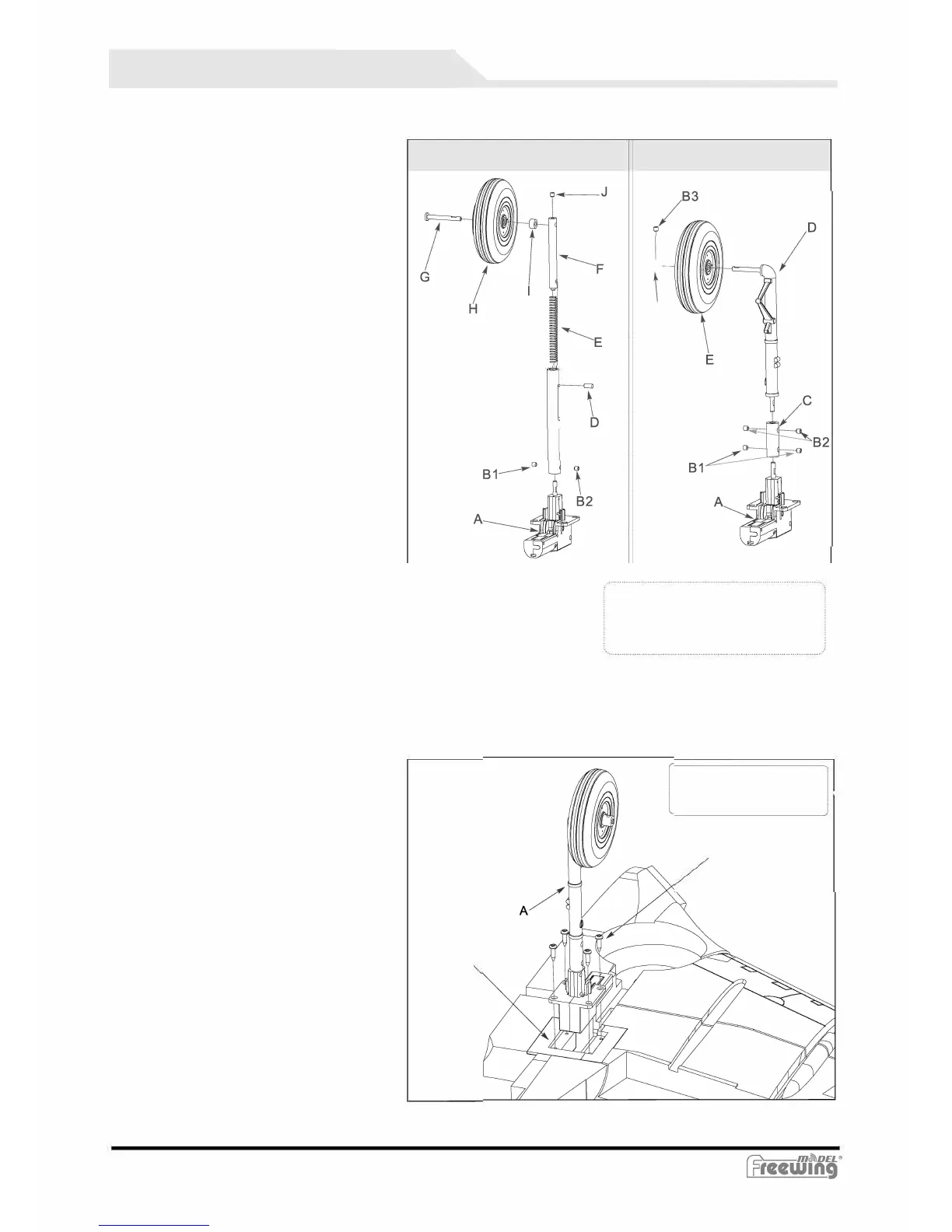

Main gear list (6S upgrade version)
A-Electric retract
B -Grub screws (M4x3mm)
C -Main gear strut
D-Pin
E -Spring
F -Main gear dampening pin
G -Main gear wheel axle
H -Rear wheel (06Ox16mm)
I -Spacer
J -Grub screw (M3x3mm)
1.Put the " Main gear strut (C)" onto the metal pin of
"Electric retract(A)" and use the 2"Grub screws(B)" to
secure it.
2.Insert the "Spring(E),and "Main gear damping pin (F)"
into the "Main gear strut(C)", and press the" Main gear
damping pin(F)" down. Through the slot of the "Main gear
strut(C)", slide the "Pin (D)" into the hole of the"Main gear
dampening pin(F)" to lock it in place.
3.Put the "Rear wheel(H)" and "Spacer(I)" onto the " Main
gear wheel axle(G)", then slide the "Main gear wheel
axle(G)" into the hole of the "Main gear strut (C)" and
use "Grub screw (J)" to secure it.
Rear landing gear list (4S standard version)
A-Electric retract
B -Grub screw (M3x3mm)
C-Main gear metal collar
D -Main gear strut
E-Main wheel (0sox1 smm)
F -Wheel collar
Full aluminium damping landing gear
instruction
c�
EN
4S standard version metal landing gear
(no damping) instruction
F
1.
Put the "Main gear metal collar(C)" in the "Electric
retract(A)" and use 2 "Grub screws(B1 )" to secure it.
2.
lnsert the "Main gear strut(D)" into the "Main gear
metal collar(C)", and use 2 "Grub screws(B2)" to
secure it.
3.
Put the "Main wheel(E)" and "Wheel collar(F)" onto
the "Main gear strut(D)", and use "Grub screw
(B)" to lock the "Wheel collar(F)"onto the axle.
1.Place the assembled "Main landing gear
set(A)"onto the "Landing gear mount((B)".
Secure the gear to the wing with 4
"Screws(C)"
A-BE Intruder
B
-8-
& Note: When assembling, ensure that
the flat position of the part aligns with the
screw hole, this will lock the piec
e in place.
Failure to do so could result in the piece
coming off during flight.
A- Main landing gear set
B - Landing gear mount
C- Screws (PA2.sx1omm)
C
