If there are no active faults, the ICU3/ICU3 ’07 dis-
plays the odometer. However, if the ICU3/ICU3 ’07
has received active fault codes from other devices, it
displays them one after the other until the parking
1
2
3
10
11
12
16
17
18
22
23
4
5
6
78
9
13 14
15
19
20
21
26 27
25
24
f610231a
11/10/2006
1. Stop Engine Warning
2. Engine Fan On Indicator (optional)
3. Do Not Shift Indicator (optional)
4. ECAS Failure Warning (optional)
5. ECAS Transfer Indicator (optional)
6. Low Washer Fluid Indicator
(optional)
7. Wheel Spin Indicator (optional)
8. EBS Warning (optional)
9. Water In Fuel Indicator (optional)
10. Check Engine Indicator
11. Engine Protection Warning
(optional)
12. No Charge Indicator (optional)
13. Tractor ABS Warning
14. Transmission Temperature
Warning (optional)
15. Trailer ABS Warning
16. Low Oil Pressure Warning
17. High Coolant Temperature
Warning
18. Fasten Seat Belt Warning
19. Parking Brake On Warning
20. Recirculated Air Indicator
(optional)
21. Air Restriction Indicator (optional)
22. Left-Turn Signal
23. Low Battery Voltage Warning
24. Dash Driver Display Screen
25. High Beams On Indicator
26. Low Air Pressure Warning
27. Right-Turn Signal

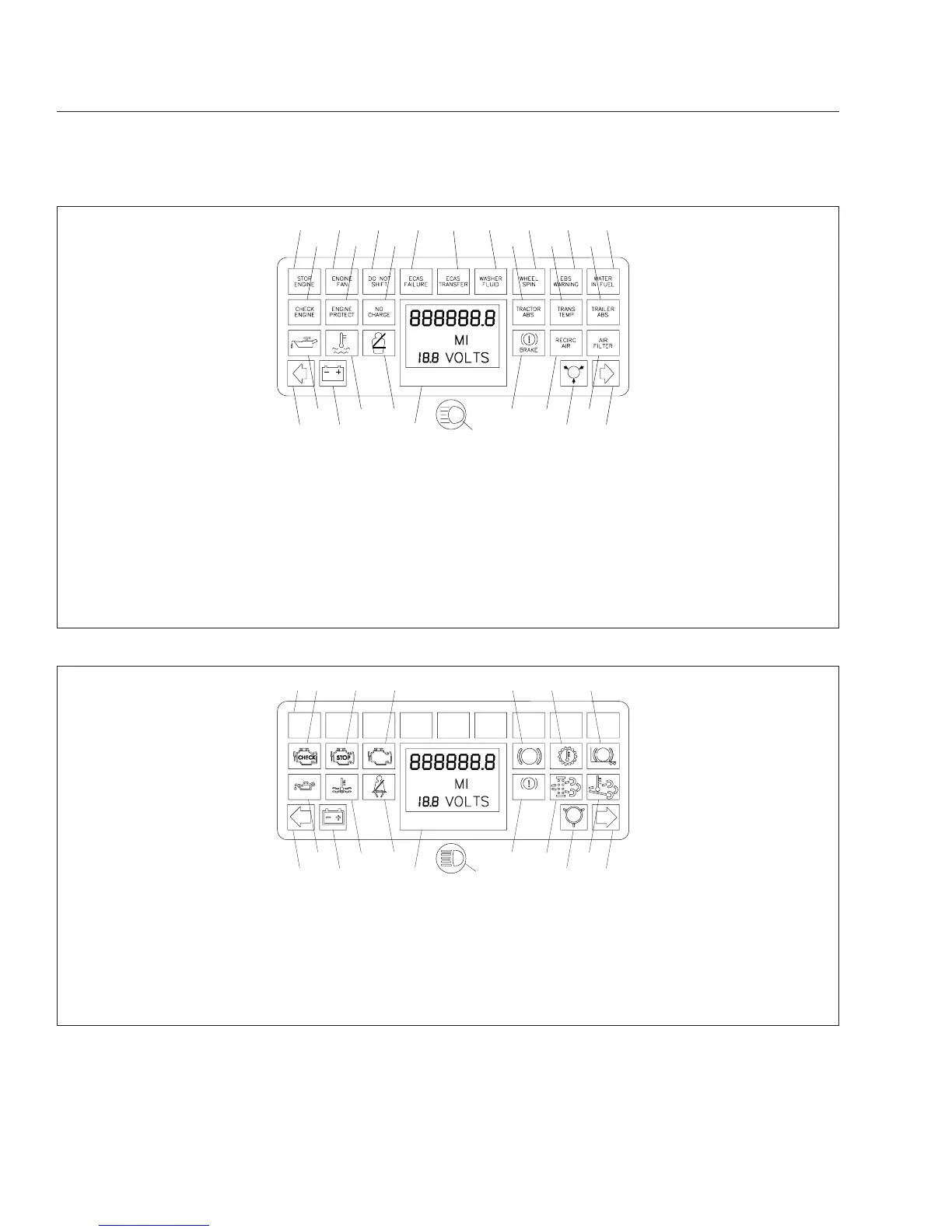

Fig. 2.8, ICU3 Dash Message Center, Pre-2007
f610836
08/31/2006
1
2
3
4
8
9
10
14
15
56
7
11
12
13
18 19
17
16
ABS
ABS
OPT OPT OPT OPT OPT OPT OPT OPT OPT
BRAKE
1. Optional Indicator
2. Check Engine Indicator
3. Stop Engine Indicator
4. Malfunction Indicator Light (MIL)
5. Tractor ABS Indicator
6. Transmission Temperature
Indicator
7. Trailer ABS Indicator
8. Low Oil Pressure Warning
9. High Coolant Temperature
10. Fasten Seat Belt Warning
11. Parking Brake On Warning
12. Diesel Particulate Filter (DPF)
Status Lamp
13. High Exhaust System
Temperature (HEST) Warning
14. Left-Turn Signal
15. Low Battery Voltage Warning
16. Driver Display Screen
17. High Beams On Indicator
18. Low Air Pressure Warning
19. Right-Turn Signal
Fig. 2.9, ICU3 ’07 Dash Message Center, EPA07 Compliant
