Frick XJS 95 - Installation

S70-101SM
Page 23
Frick XJS and XJF Rotary Screw Compressor
Service Manual
F
M
1
22 3
1
2
2
WHEN SHIMS ARE REQUIRED, INSTALL
BETWEEN OUTER RACES TO DECREASE
DISCHARGE END CLEARANCE - INSTALL
BETWEEN INNER RACES TO INCREASE
DISCHARGE END CLEARANCE.
INSTALL BALL BEARINGS
WITH IDENTIFICATION
MARK ON THIS SIDE ONLY.
INSTALL BALL BEARING
WITH IDENTIFICATION
MARK ON THIS SIDE ONLY.
INSTALL BALL BEARING
WITH IDENTIFICATION
MARK ON THIS SIDE ONLY.
BEARING INSTALLATION
MALE ROTOR
BEARING INSTALLATION
FEMALE ROTOR
LOCATION OF .002" SHIM
1. Roller Bearing
2. Angular Contact Ball Bearing
3. Four-Point Contact Ball Bearing

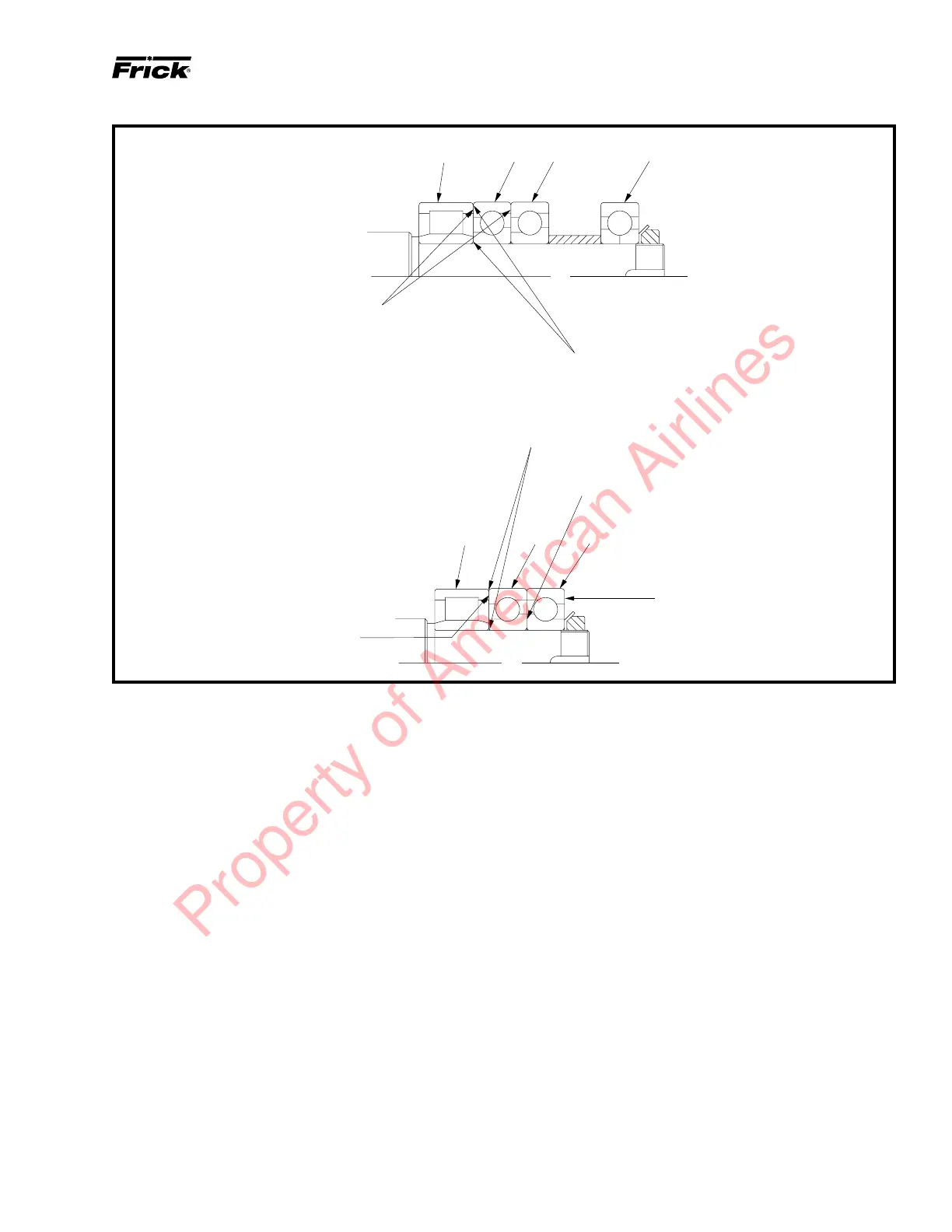

Figure 1-6. Bearing Orientation.
