Frick XJS 95 - Slide Valve and Slide Stop Sectional View

S70-101SM
Page 10
Frick XJS and XJF Rotary Screw Compressor
Service Manual
31
32
11
1
2
3
10
30
29
28
27
10
11
26
11
10
25
24
23
22
1
21
20
19
33
18
17
15
16
8
14
11
12
10
9
8
7
6
5
4
1. Socket Head Capscrew 2. Gear Cover 3. Rotor Casing 4. Pipe Plug 1/4 x 18 NPTF 5. Socket Head Capscrew 6. Spring Pin .125 x .375 7. Discharge Casing 8. Socket Head Capscrew 9. Spring Pin .187 x .625 10. Glyd-Ring 11. O-Ring 12. O-Ring 14. Cylinder Cover 15. Slyd-Ring 16. Check Valve Retainer 17. Internal Check Valve
18. O-Ring 19. Slide Valve Piston 20. Fastener for 19 21. Slide Valve 22. Unloader Spring 23. Spring Support 24. Pipe Plug 25. Slide Stop 26. Slide Stop Piston 27. Stepper Piston 28. Glyd-Ring 29. O-Ring 30. Slide Stop Cover 31. Key 32. O-Ring 33. Washer

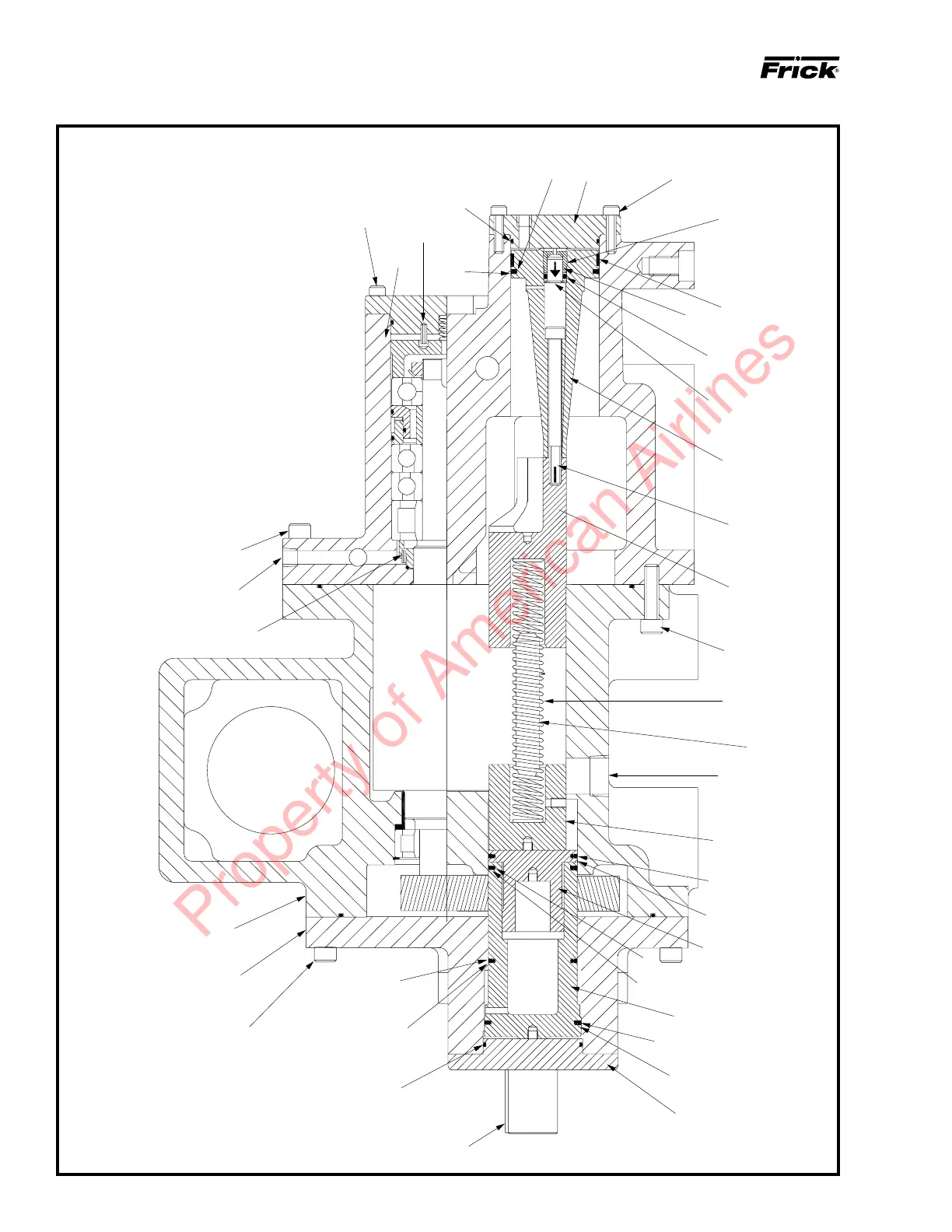

Figure 1-4. Slide Valve and Slide Stop Sectional View.
