S70-101SM
Page 25
Frick XJS and XJF Rotary Screw Compressor
Service Manual

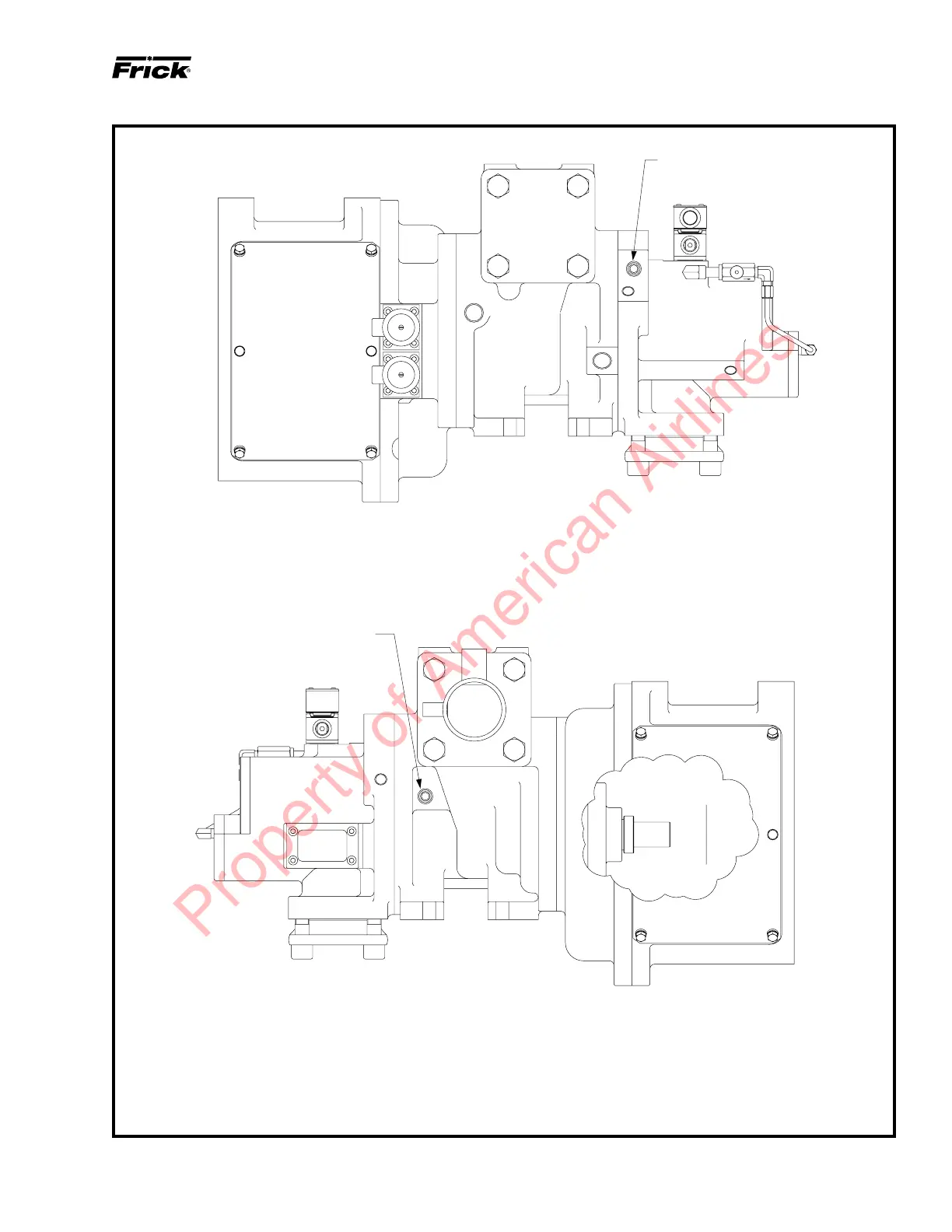

Figure 1-8. Orifice Hole Location for XJS and XJF 95.
DISCHARGE BEARING
ORIFICE
MAIN OIL INJECTION
ORIFICE
The orifice holes shown require cleaning to ensure proper oil flow.
See Figure 1-9 for location of oil feed orifice hole.
