COMPONENTS TESTING
Field Settings (Outdoor 24k and 36k)
Running Parameter Query

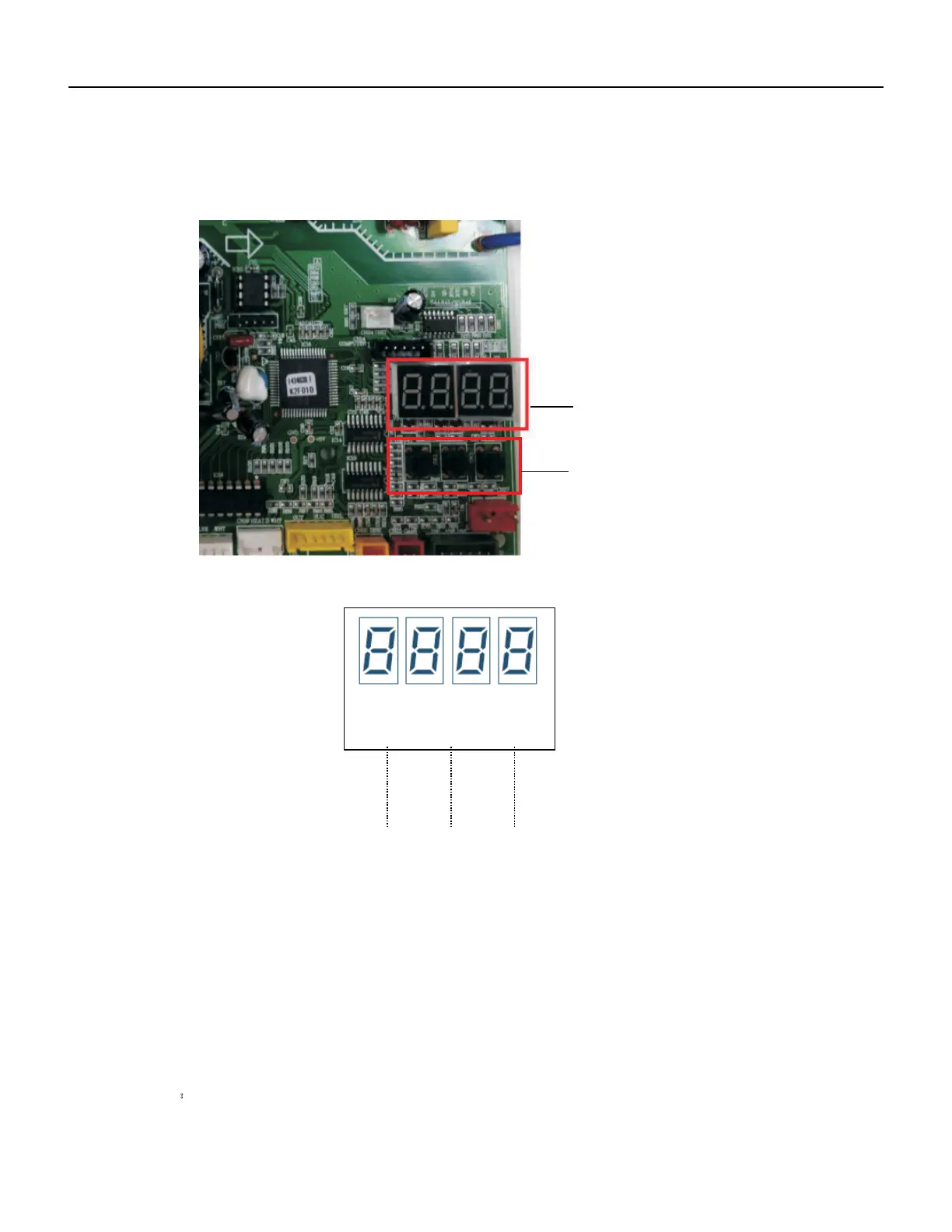

Outdoor Running parameters can be checked by 7 segment display.
7 segment display
Digital Display Switch
Outdoor control board
"P." -- Parameter of outdoor unit
"A." -- Parameter of indoor unit A
"b." -- Parameter of indoor unit B
"C."-- Parameter of indoor unit C
"d."-- Parameter of indoor unit D
"E."-- Parameter of indoor unit E
There are 3 buttons on the digital display board ：
1) Sel ect button: Select to display outdoor/indoor unit parameter.
2) INCREASE button ：Each time it is pressed, the number rises by 1.
3) DECREASE button ：Each time it is pressed, the number lowers by 1.
The parameter content will automatically displayed after the pa rameter code is selected for 3s.
● ● ●
Parameters can be checked as following table below .
Note ：
S1
S2
Select
Increase
Decrease
S3
(1) ●:Valid ；
: Invalid.
(2) The right is therefore reserved to EE changing without notice.
To Next Page
