21 PB
OPERATION
User Interface - Kuhl Q
All of the control panel function buttons and mode icons can be viewed in Figure 305.
Power On – Press the button to turn on the air conditioner. The power button illuminates to indicate that the power is on. The backlight on
the power switch will automatically turn off after 20 seconds of inactivity. The remote control can also be used to turn power ON / OFF (see
Remote Control).
Display – The display is a high efciency LCD with a built-in backlight. After 20 seconds of inactivity, the display switches off. Touching any
button automatically changes the display to full brightness.
There are three control push buttons on each side of the display.
-AUTO-
Automatically switches
between cool & heat
CONTROL
LOCKED
STATE
TEMPERATURE
UP
TEMPERATURE
DOWN
2 DIGIT DISPLAY
Shows Setting for:
- Set Point (Temperature)
FILTER
Check / clean
FAN SPEED
Sets fan speed:
LOW, MED, HIGH,
OR MAX
(Actual settings are
model dependant)
FAN
Sets fan to either:
- Automatically cycle
- Continuously run
COOL HEAT FAN ONLY DISCONNECTED FROM
POWER BOARD
MODE
Cycles between
COOL, HEAT, FAN
ONLY or -AUTO-
(if equipped)
ON / OFF
Turns unit on/off
TIMER
shows on or off

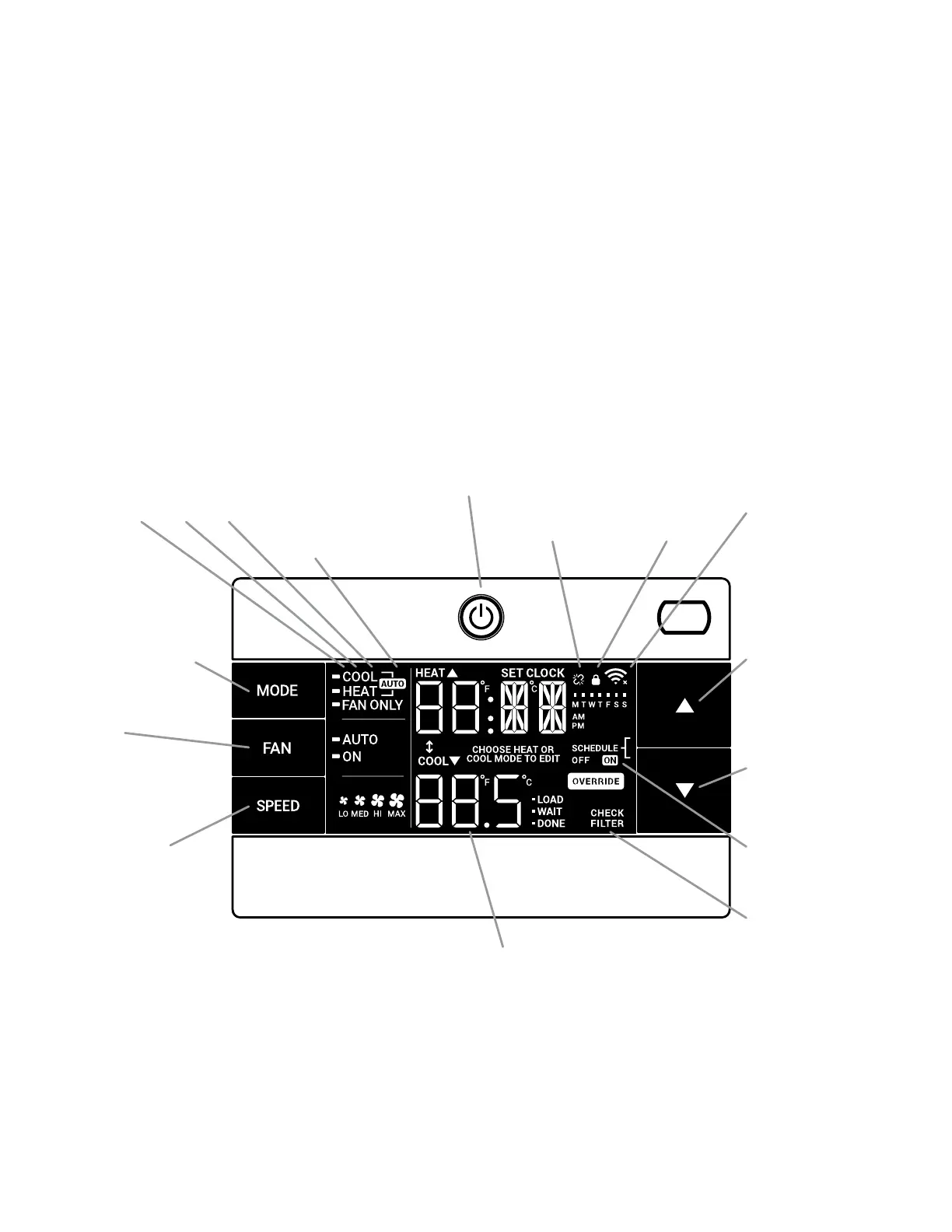

Figure 305 (Control Panel and Display)
