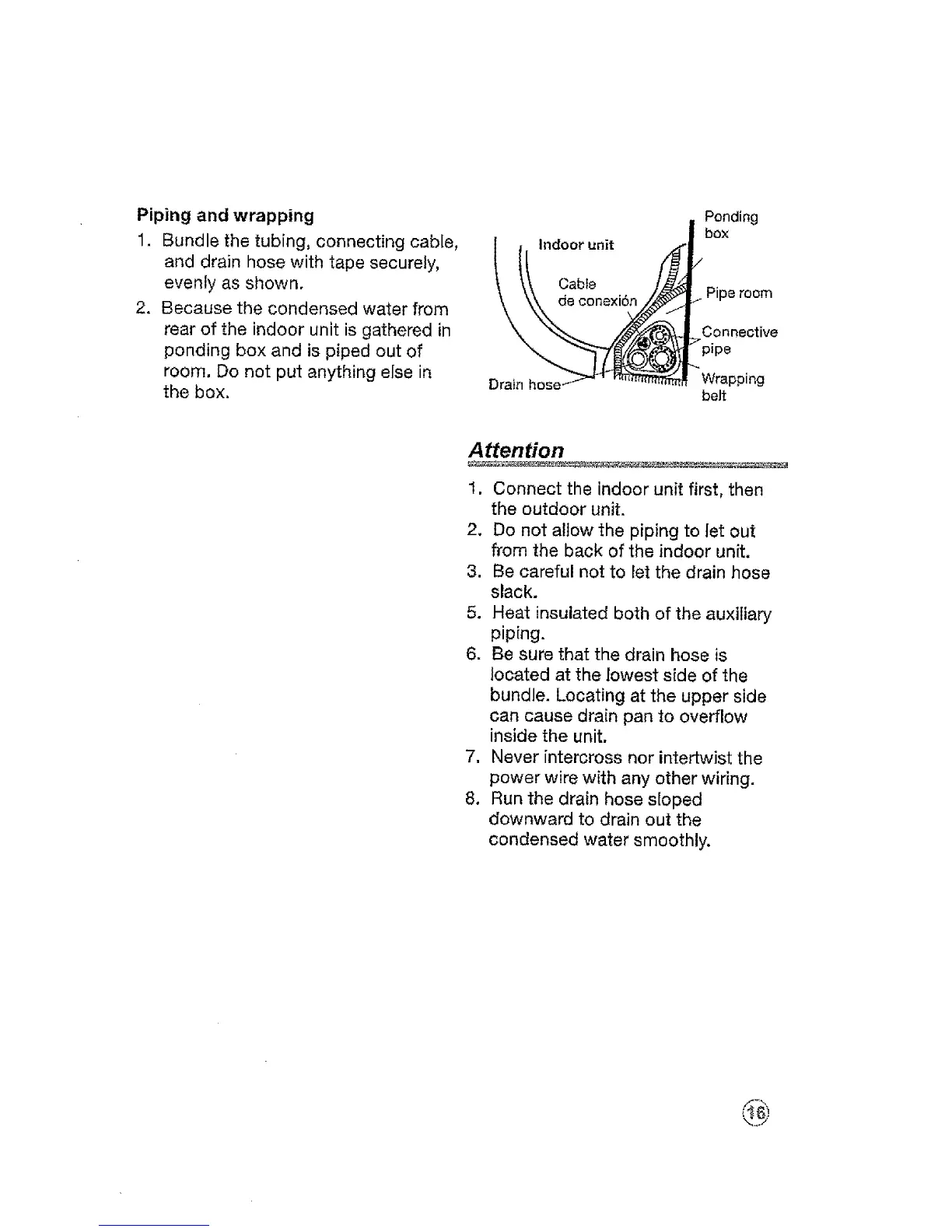

Piping and wrapping
1. Bundle the tubing, connecting cable,
and drain hose with tape securely,
evenly as shown.
2. Because the condensed water from
rear of the indoor unit is gathered in
ponding box and is piped out of
room. Do not put anything else in
the box.
l . Indoor unit
Ponding
box
Pipe room
Connective
_pipe
_Wrapping
belt
Attention
1. Connect the indoor unit first, then
the outdoor unit.
2. Do not allow the piping to let out
from the back of the indoor unit.
3. Be careful not to let the drain hose
slack.
5. Heat insulated both of the auxiliary
piping.
6. Be sure that the drain hose is
located at the lowest side of the
bundle. Locating at the upper side
can cause drain pan to overflow
inside the unit.
7. Never intercross nor intertwist the
power wire with any other wiring.
8. Run the drain hose sloped
downward to drain out the
condensed water smoothly.
