Frigidaire FES366EC Installation Instructions

2

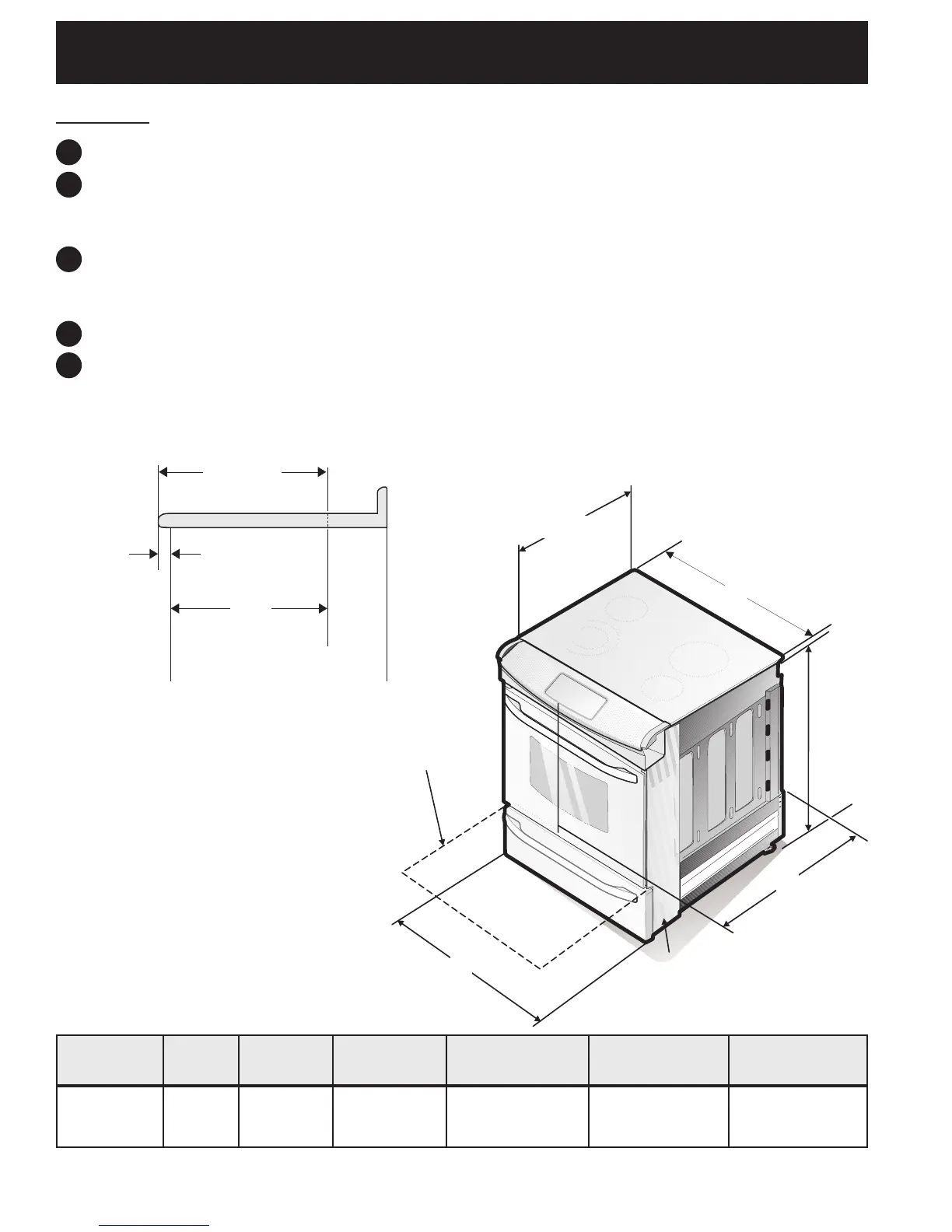

30" ELECTRIC SLIDE-IN RANGE INSTALLATION INSTRUCTIONS
NOTES:
Do not pinch the power supply cord between the range and the wall.
Do not seal the range to the side cabinets.
24" (61 cm) minimum clearance between the cooktop and the bottom of the cabinet when
the bottom of wood or metal cabinet is protected by not less than 1/4" (0.64 cm) flame
retardant millboard covered with not less than No. 28 MSG sheet metal, 0.015" (0.4 mm)
stainless steel, 0.024" (0.6 mm) aluminum, or 0.020" (0.5 mm) copper.
30" (76.2 cm) minimum clearance when the cabinet is unprotected.
For cutouts below 22 7/8"(58.1 cm), appliance will slightly show out of the cabinet.
Allow at least 19 ¼" (48.9 cm) clearance for door depth when it is open.
35 5/8" (90.5 cm) -
36 5/8" (93 cm)
30"
(76,2 cm)
28 5/16" (71,9 cm) 30±1/16"
(76,2±0,15 cm)
21 3/4" (55,2 cm) Min.
22 1/8" (56,2 cm) Max
24" (61 cm) Min. with
backguard
36 5/8" (93 cm) Max.
35 5/8" (90.5 cm) Min.
A. HEIGHT
(Under Cooktop)
B.WIDTH D. TOTAL DEPTH
TO FRONT OF
RANGE
E. CUTOUT WIDTH***
(Countertop
and cabinet)
F. CUTOUT
DEPTH
G. HEIGHT
OF COUNTERTOP
31 5/16"
(79.5 cm)
C. COOKTOP
WIDTH
A
C
B
21¾”
(55.25 cm)
D
Door Open
(see note 5)
Side Panel
1 1/8"
(2.86 cm)
FRONT
OF
CABINET
F
Ref.
22 7/8" (58.1 cm) min.
23 1/4" (59.05 cm) max.
(see Note 4)
1
2
3
4
5
