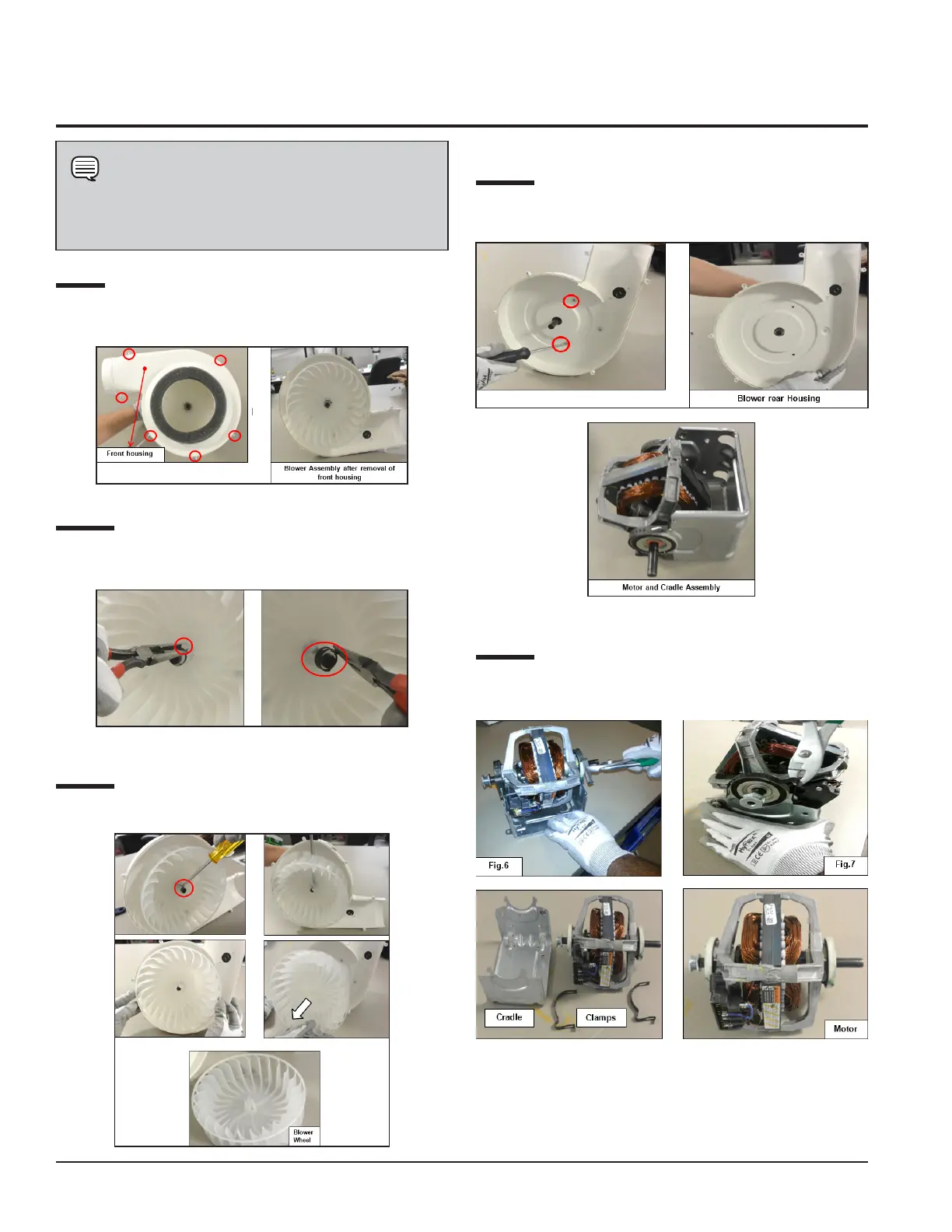

Step: 9
Loosen the screws (6) to remove the Front housing of the
Blower.
Step: 10
Remove the clamp that tightly holds the snaps of the Blower
wheel with the Motor shaft.
Step: 11
Detach the Blower wheel snaps to separate the Blower
wheel from the Motor shaft.
Step: 12
Loosen the screws (2) to remove the Motor and Cradle
Assembly from the Blower rear housing.
Step: 13
Remove the Motor clamps (2) with the help of the Plier,
from the Cradle projection as shown in Figures (6 and 7).
NOTE
To separate the motor from the Blower Assembly,
follow these steps:
