14.10 Solenoid / Water Valve Accessibility
Step: 1

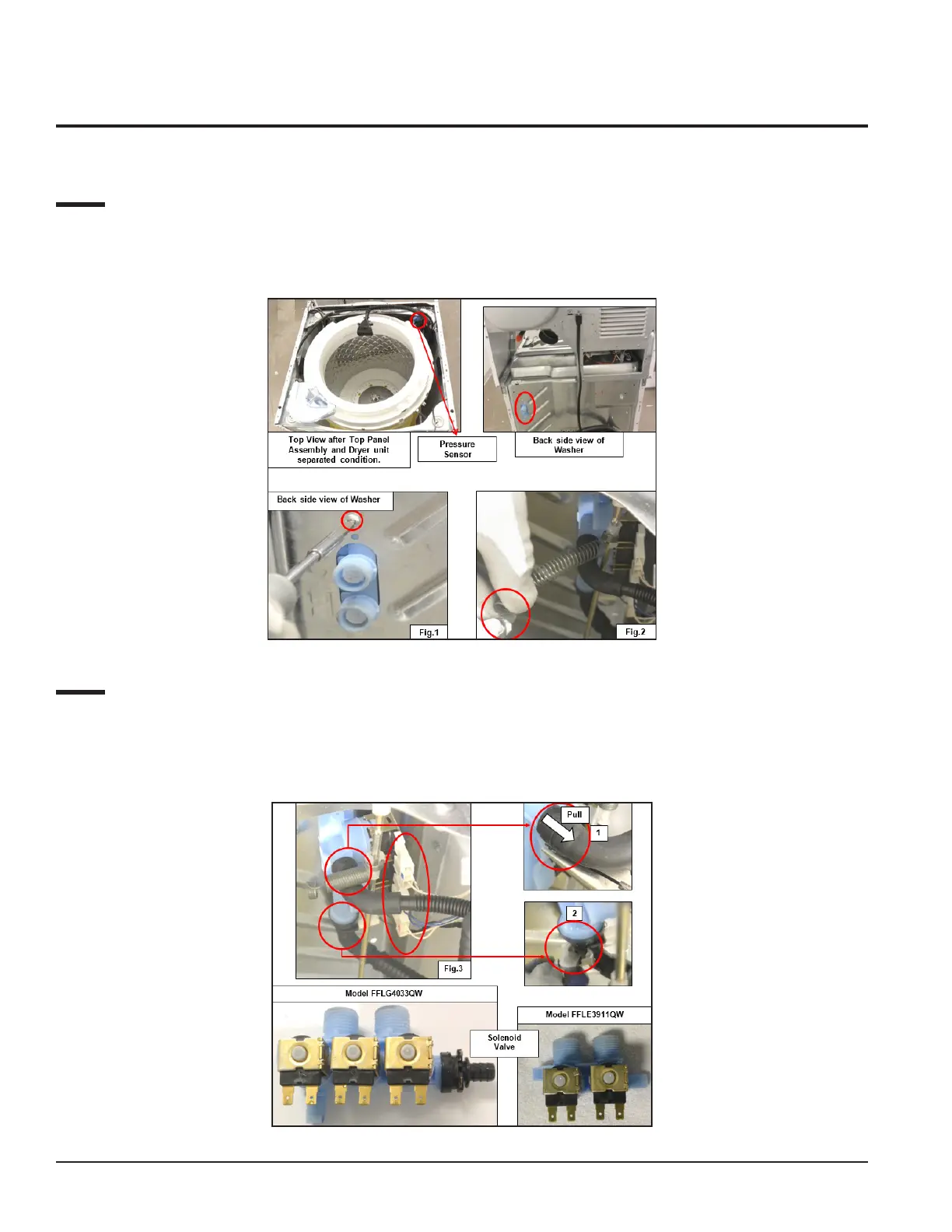

Loosen the Solenoid Valve screw that fits with the Rear Panel of the washer (See Fig.1).
Then detach the Suspension Spring from the Tub hook (See Fig.2), which has been attached to the Motor Tub for easy
accessibility of the Solenoid Valve.
Step: 2
Detach the hot, cold, and Secondary Coil connectors and valve outlet to the Tub Connector from the Solenoid Valve.
Remove the two Solenoid Valve outlet hose clips (1, 2) and pull out the hoses (Dispenser Hose and Tub Fill Hose) to
separate the Solenoid Valve (See Fig.3).
