14. Electrical Component Accessibility - FFLE3911QW and
FFLG4033QW (Washer)

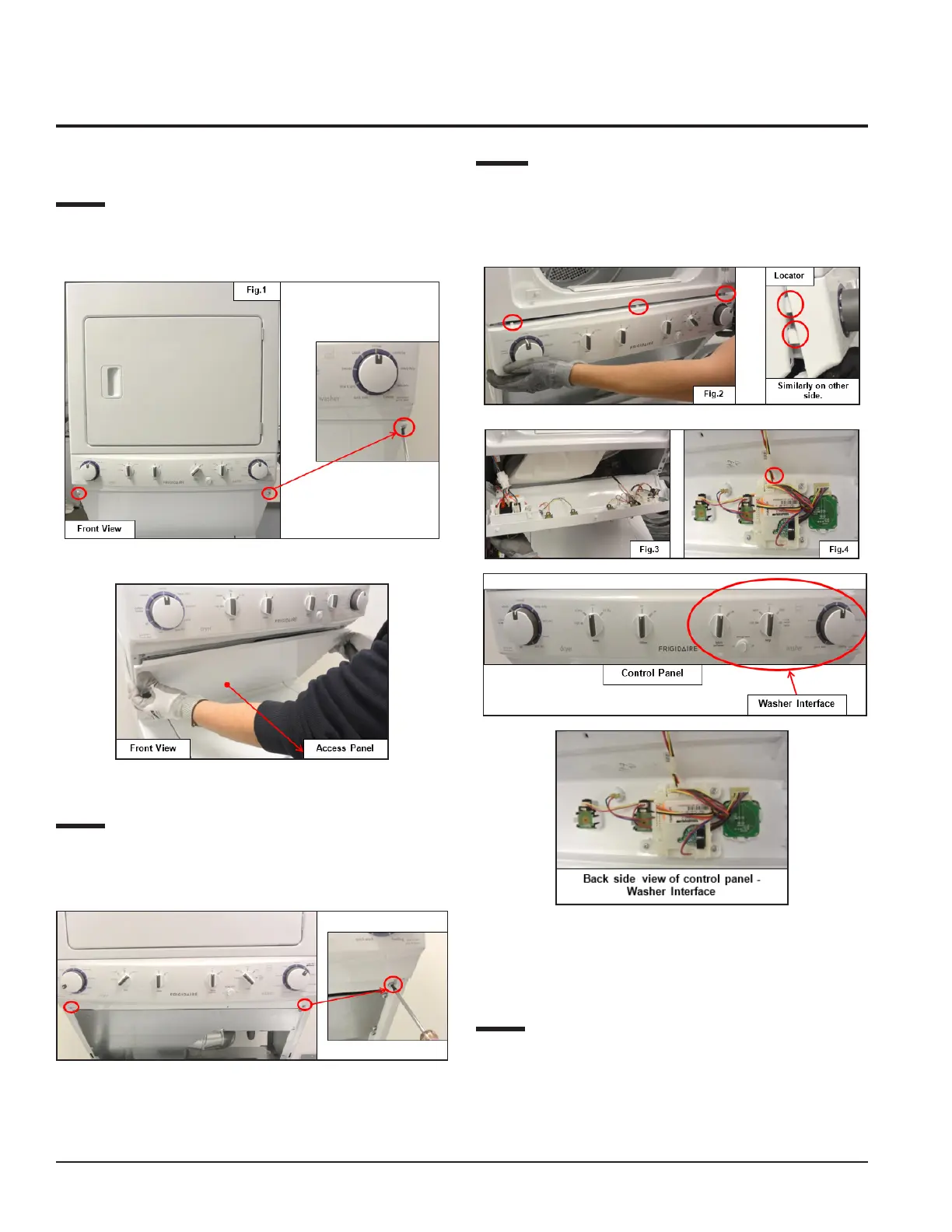

14.1 Control Panel Accessibility
Step: 1
Loosen the screws (2) (Fig.1) that fixes with left and right
Panel of the Laundry Center Dryer to remove access panel.
Step: 2
Loosen the Control Panel screws (2) that fixes with the left
and right panel of the Laundry Center Dryer.
Step: 3
Hold the Control Panel at the bottom and pull it out Figs.
2 and 3, then detach the connector (See Fig. 4) to remove
the Control Panel.
14.1.1 User Interface (UI) Board
Accessibility
Step: 1
Loosen the Screws (3) from the Control Panel console (See
Fig.1) and then detach the connectors Figs. 2a and 2b to
separate the Washer User Interface (UI) Board Assembly
from the Control Panel console.
