176

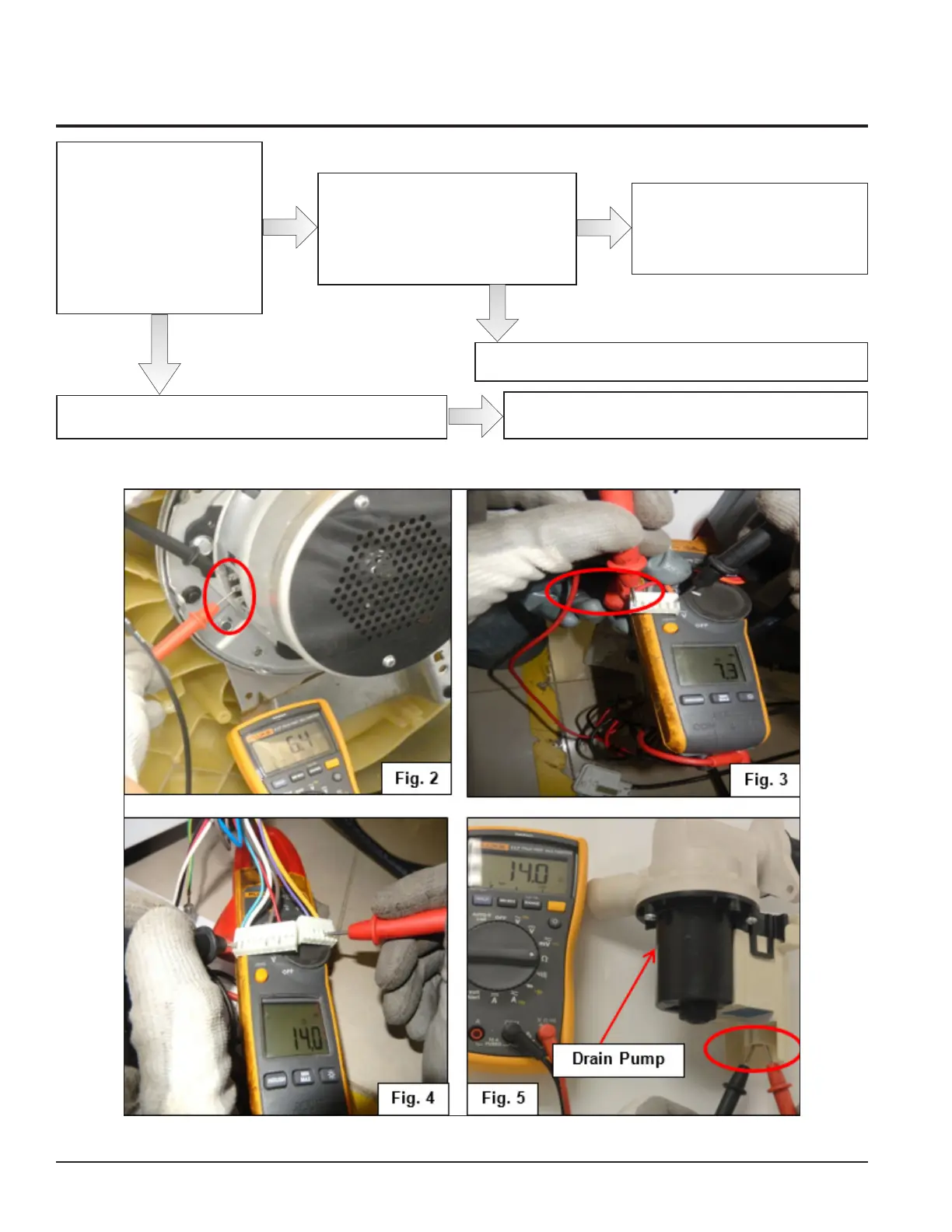

Is the resistance measurement
of the Drain pump
approximately 12Ω to 17Ω?
(Measure it directly on the
connector on the Main Control
Board side between terminals
J15-3 & J15-4). (See Fig. 4)
Is the resistance measurement of the
Drain pump approximately 12Ω to
17Ω? (Measure it directly on the Drain
pump). (See Fig. 5)
Replace the Drain pump and repeat
the Diagnostic Cycle to check for
any further alarms.
Replace the Motor Control Board and check for further
alarms. Is the appliance ok?
Check / Replace the wiring and repeat the Diagnostic Cycle
to check for any further alarms.
Replace the Main Control Board and repeat the
Diagnostic Cycle to check for any further alarms.
NO
NO
Y
E
S
Y
E
S
NO
