S.NO Component Specifications
1 Pressure Sensor
Nominal Voltage : 5 ± 0.25 VdC; maximum current: <5 mA;
Maximum Operating Temperature: 85 ºC (65 ºC for UL application);
Pressure working range 0 - 600 mm of H2O.
Specifications

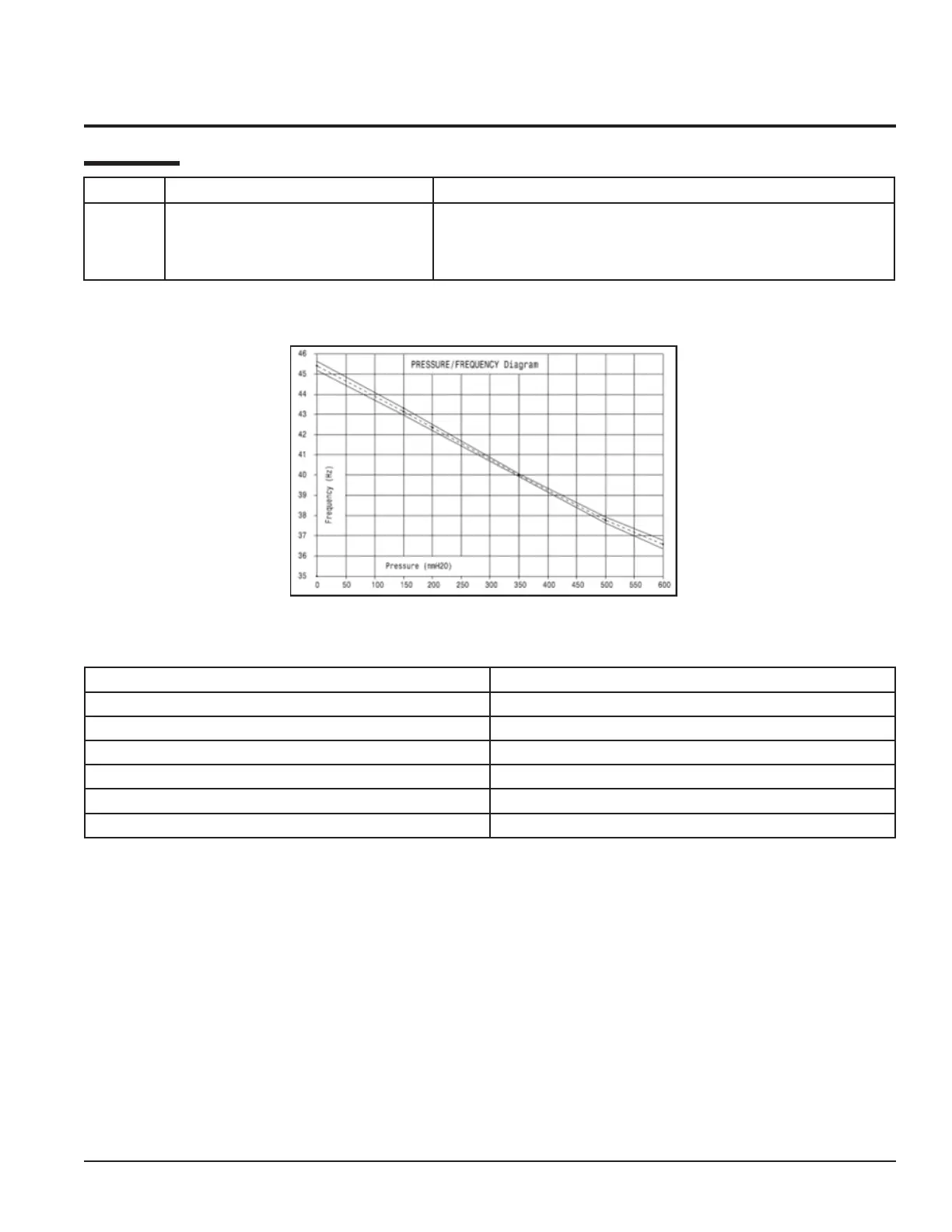

Presssure Frequency Diagram
( At Water Level “0” mm (empty tub) Frequency will be 45.4 Hz )
Mm H20* - Hz* : Points with 100% control of frequency output on assembly line
Pressure (mm H2O) Nominal frequency (Hz)
Water Level at 0* 45.400*
150* 43.140*
200* 42.350*
350* 39.990*
500* 37.772*
600 36.560
