Frigoboat MS SERIES - Measures

Page
10
3. INSTALLATION
Fridges & Freezers Boxes
SERIE MS
STAINLESS STEEL
Series

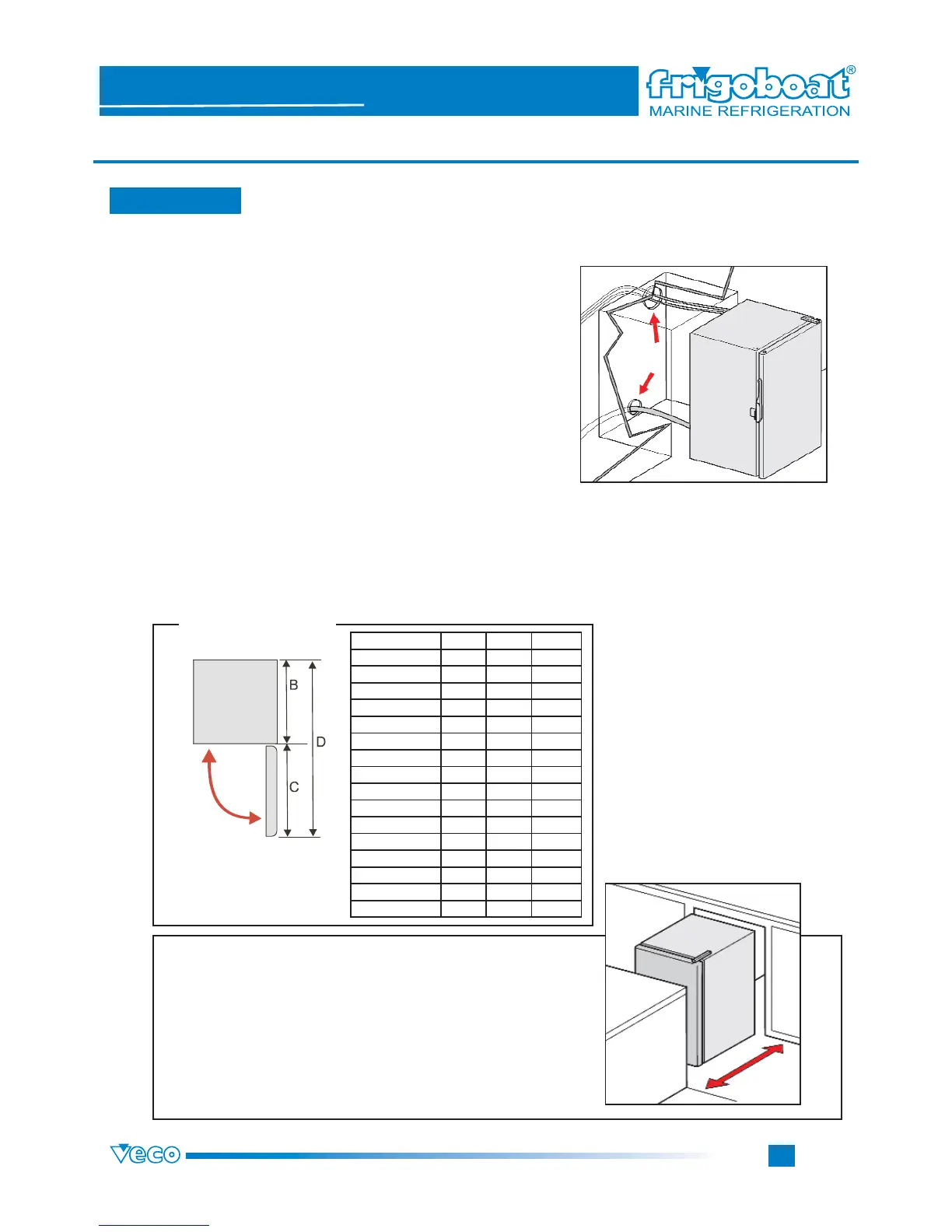

3.3 Measures
Respect area for an easy use
Locating the fridge/freezer, it is necessary to respect the surrounding area to open completely the door and
so eventually drawers and to execute easily all operations inside.
Respect area
To locate the fridge/freezer you must
consider the bulk measures on page
9, corresponding to the chosen cabi-
net.
Mounting instructions:
The fridge/freezer must be located easily.
Moving it, it is better to keep its protection and pay any-
way great attention. If necessary, take off the door.
IMPORTANT
To locate the fridge/freezer, you must consider not only the
bulk measures on page 9 (and in the table 3.5 on pages 11-
12) but also the holes for the electrical connection wires and
for the eventual condensation outlet. Since precharged pipes
protude from the box, it is necessary a respect area: avoid
sharp bends (their radius must be superior to 50 mm).
During the fridge/freezer installation, for its maintenance, it is
IMPORTANT to make as easy as possible the accessibility to
connections, unions and waste pipes.
Model (litres)
FRIDGE C / mm B / mm D / mm
42 400 342 792
80 490 415 955
115 500 465 1015
130 500 510 1060
160 565 530 1145
180 500 465 1015
FREEZER
60 500 515 1065
80 550 560 1160
90 565 580 1195
110 565 580 1195
WINE COOLERS
115 500 515 1065
130 550 560 1160
160 565 580 1195
