3. INSTALLATION

Fridges & Freezers Boxes

SERIE MS

STAINLESS STEEL

Series

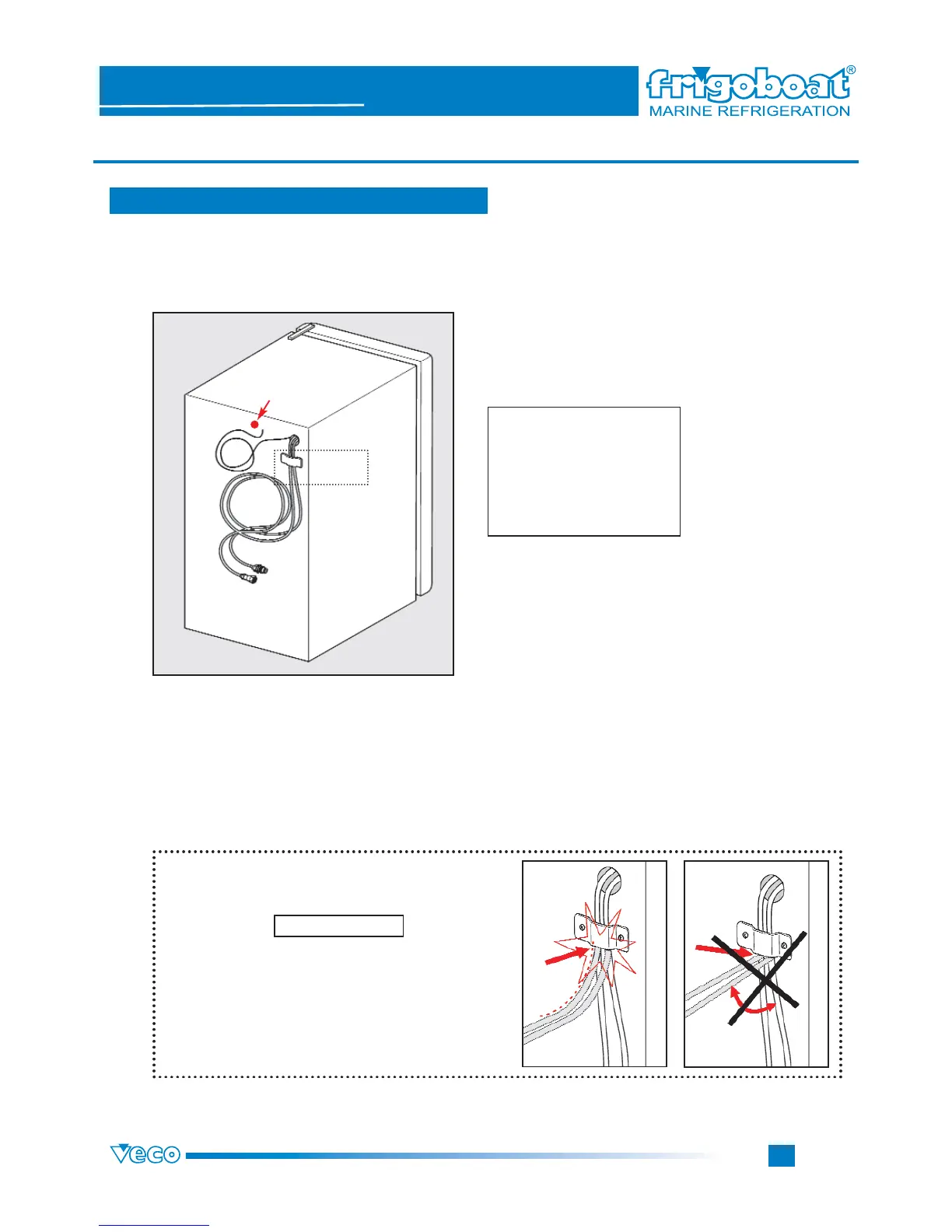

3.7 Fridge/freezer - compressor connection

PAY ATTENTION BENDING PIPES (AS WE CAN

SEE IN THE PICTURE). AVOID ANGLES AND

BEND PIPES FORMING A WIDE RADIUS.

A SHARP BEND COULD IMPAIR THE GOOD

FUNCTIONING OF THE EVAPORATOR.

To install a fridge/freezer with evaporator compartment and condensation tray,

it is necessary to connect:

1) the pipes to the compressor unit (A)

2) the thermostat wires (B)

3) the internal light wires (C - 12 or 24 V)

CONNECTIONS FOR CABINETS OF MS SERIES

WITH EVAPORATOR COMPARTMENT AND CONDENSATION TRAY

ATTENTION

FRIDGE

SEE

BOX 1

A = RAPID HOOK-UPS

B = THERMOSTAT

C = LIGHT

D = RECHAUFFAGE PORTE

(FILO CALOR)

E = CONDENSATION OUTLET

G = VOLTAGE WARNING LIGHT
