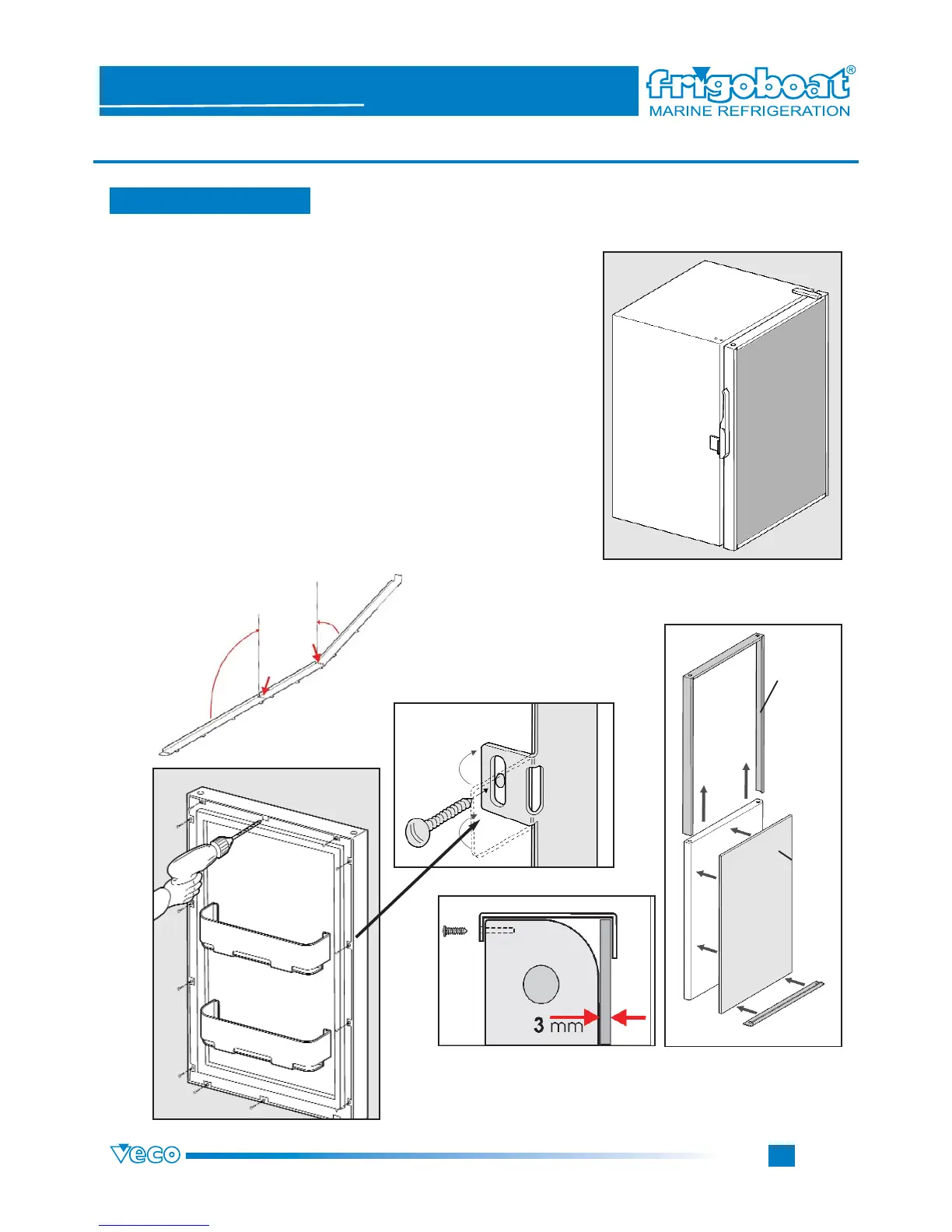

It is possible to panel both the fridge and the freezer door.
The kit includes one single profile to be bent.
To fasten them, follow these instructions:
1 - take down the door (instructions on page 7 - 3.1);
2 - bend the profile along the arranged line (picture 1);
3 - bend inside tongues to 90° (picture 2);
4 - drill a hole into the door inside next to the tongues (picture 3);
5 - locate the panel (3 mm thick) (picture 4);
6 - locate the panel C and the frame composed by the two ele-
ments: A and B (picture 5);
7 - tighten the screws;
8 - take up the door (instructions on page 7 - 3.1)
Page
20
3. INSTALLATION
Fridges & Freezers Boxes
SERIE MS
STAINLESS STEEL
Series
3.12 Door with panel
