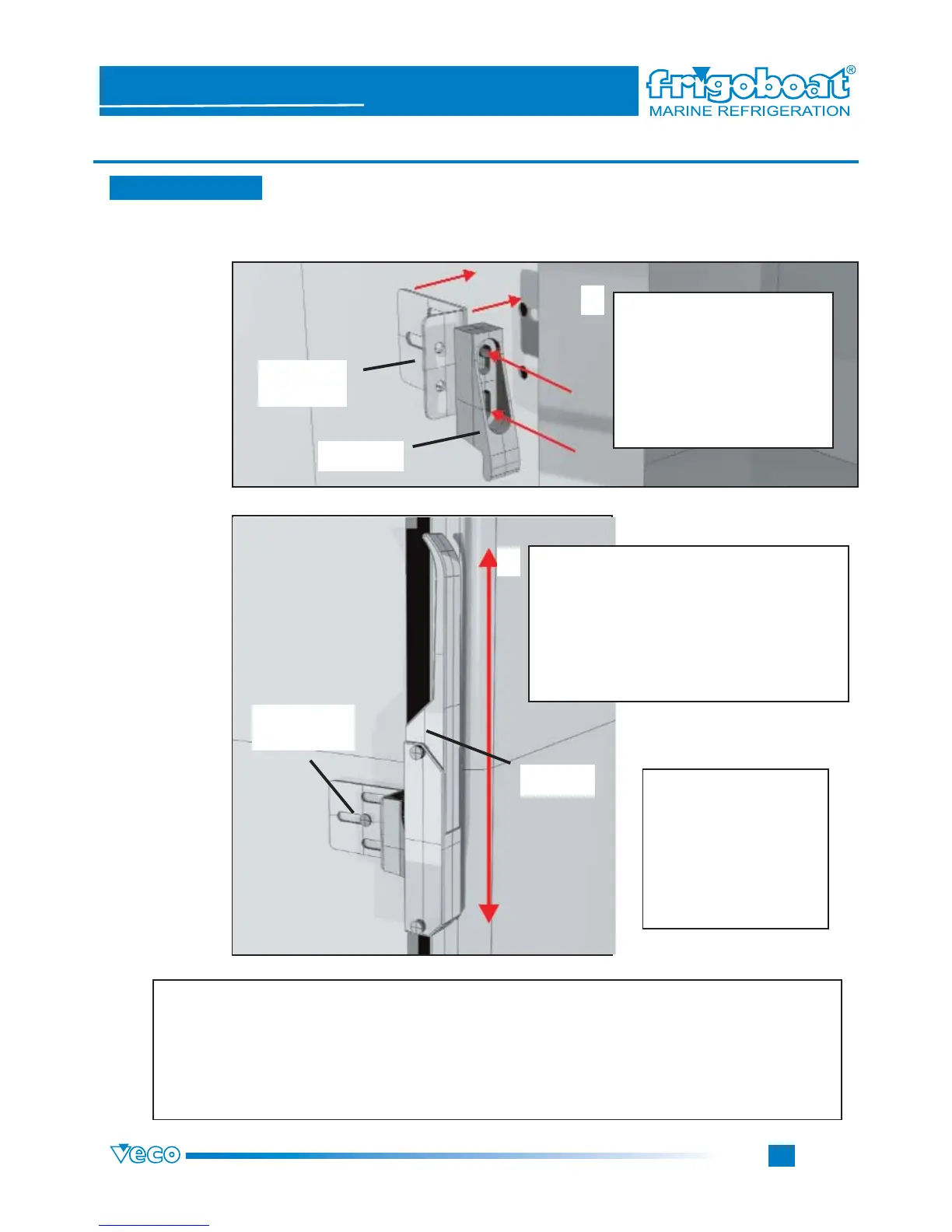

HANDLE HOOK-UP AND SETTING
Don’t tighten the screws
before having set the
handle and the hook-up,
so that they are exactly
one upon the other. Then
it is possible to tighten all
the screws.
It is very important that the handle is exactly upon its hook-up: on the contrary the
good functioning of the fastening could be impaired and some components could
break.
Handle setting
3.2 Doors/handles
IMPORTANT
Fridges/freezers have got sui-
table holes for the handle and
the hook-up. If you change the
opening mode, it is necessary
to dismount the hook-up from
its support and fasten it upsi-
de-down, so that the handle is
upwards.
HOOK-UP
SUPPORT
HOOK-UP
SUPPORT
HOOK-UP
HANDLE
As the hook-up, the handle too is fastened to
the fridge/freezer by means of a steel clamp. If
you change the opening mode, it is necessary
to unfasten the handle from the clamp and
fasten it again after having tipped over the
clamp. On the door there are some holes to
hook the handle support clamp and to open the
door both on the right and on the left.
