Frigoboat MS SERIES - Fridge;Freezer - Compressor Connection

Page
16
Fridges & Freezers Boxes
SERIE MS
STAINLESS STEEL
Series
PAY ATTENTION BENDING PIPES (AS WE CAN
SEE IN THE PICTURE). AVOID ANGLES AND
BEND PIPES FORMING A WIDE RADIUS.
A SHARP BEND COULD IMPAIR THE GOOD
FUNCTIONING OF THE EVAPORATOR.
To install a fridge/freezer with hidden evaporator, it is necessary to connect:
FOR THE FRIDGE
1) the pipes to the compressor unit (A)
2) the thermostat wires (B)
3) the internal light wires (C - 12 or 24 V)
4) the condensation outlet pipe (E - on page 11)
FOR THE FREEZER
1) the pipes to the compressor unit (A)
2) the thermostat wires (B)
3) the internal light wires (C - 12 or 24 V)
4) the FILO CALOR

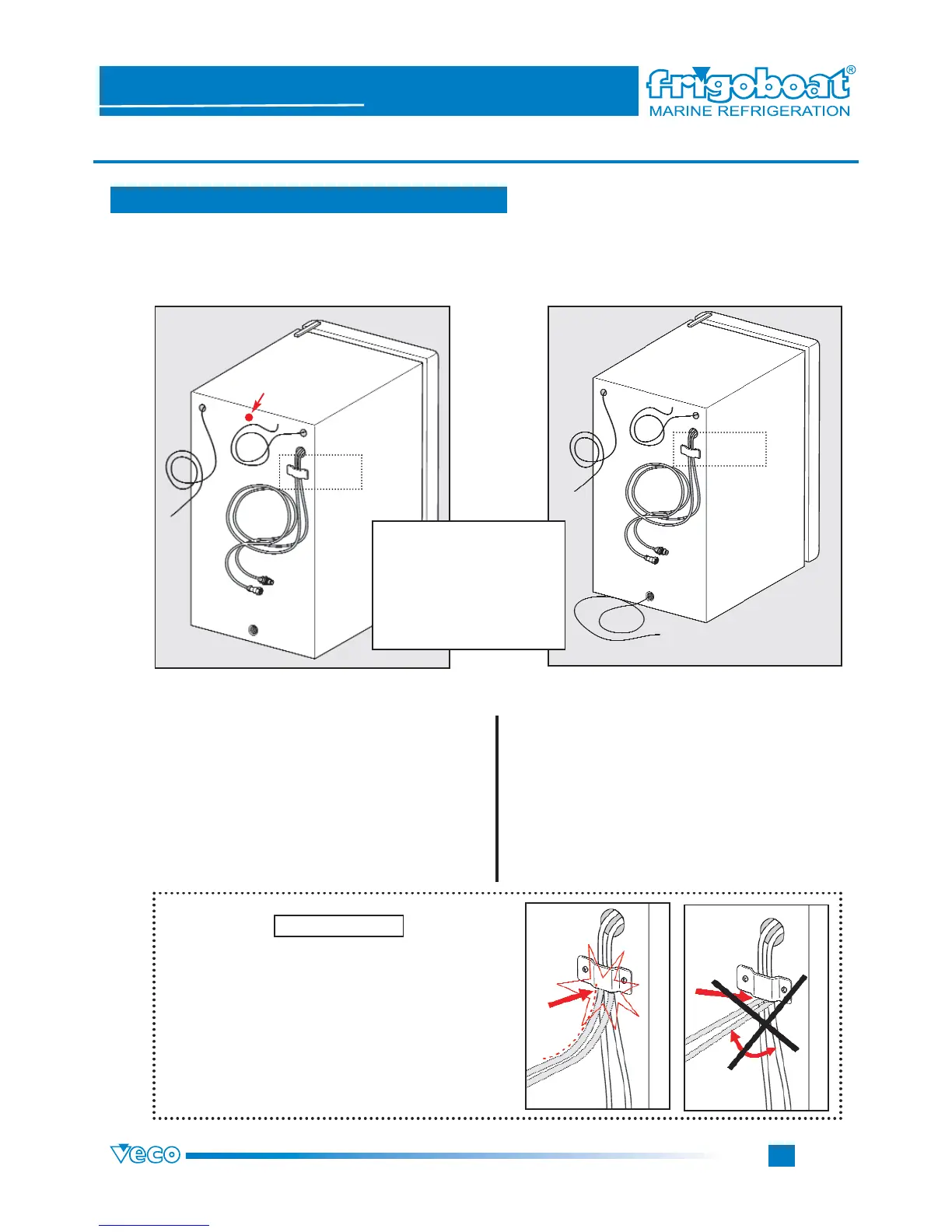

CONNECTIONS FOR FRIDGES AND FREEZERS WITH HIDDEN EVAPORATOR
ATTENTION
FREEZER
with hidden evaporator
FRIDGE
with hidden evaporator
SEE
BOX 1
SEE
BOX 1
BOX 1
A = RAPID HOOK-UPS
B = THERMOSTAT
C = LIGHT
D = RECHAUFFAGE PORTE
(FILO CALOR)
E = CONDENSATION OUTLET
G = VOLTAGE WARNING LIGHT
A
A
E
D
B
B
C
C
G
3. INSTALLATION
3.7 Fridge/freezer - compressor connection
