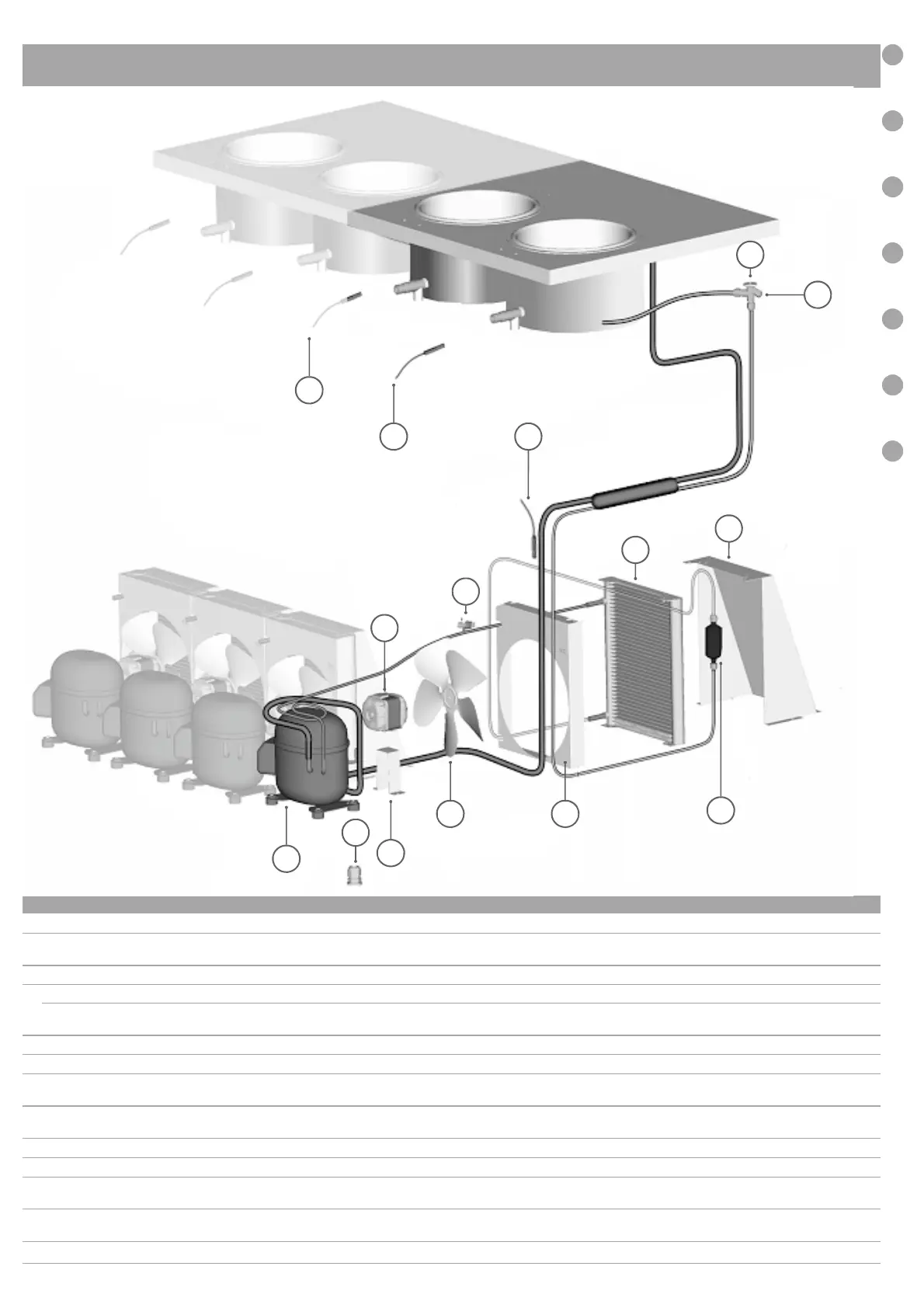

TAV 02 : (GX2, GX4) Gruppo frigorifero - modelli ad acqua ● Refrigerant Unit - Water Model ● Unitè de réfrigeration - Models a l’eau ● Kühlag-
gregat ● Unidad de refrigeración
N. COD. DESCRIZIONE DESCRIPTION DESCRIPTION BESCHREIBUNBG DESCRIPTION
1 A04.42302 Deflettore Deflector déflecteur Deflektor Deflector
2 Z05.42290
Condensatore ad
aria
Air condenser
Condensateur á
air
Luftkondensator Condensador aire
3 A07.032 Filtro Filter Filtre Filter Filtro
B03.42347 Ventola Fan Ventilateur Lüfter Ventilador
A04.42303 Convogliatore Conveyor Convoyeur
Kühlerhaube -
Gleiter
Transportador
9 A02.140 Pressostato Pressure switch Pressostat Druckwächter Presóstato
10 E09.39163 Pressacavo Cable grip Presse-fils Kabelhalter Sujeta-cables
11 A02.190
Valvola
termostatica
Thermostatic valve
Soupape thermo-
statique
Thermostatisches
Ventil
Válvula
termostática
12 A02.191
Orificio per valvola
termostatica
Orifice for thermo-
static valve
Orifice suopape
thermostatique
Öffnung für ther-
most. Ventil
Orificio válvula
termostática
13 E05.42965 Sonda PT 1000 Probe PT 1000 Sonde PT 1000 Sonde PT 1000 Sonda PT 1000
5
4
6 E01.42346 Motore ventilatore Fan motor Moteur ventilateur Ventilatormotor Motor ventilador
7 B03.42345 Staffa Fan support Etrier Halter Estribo
8 B01.42301
Compressore
230/50/1
Compressor
230/50/1
Compresseur
230/50/1
Kompressor
230/50/1
Compresor
230/50/1
8 B01.42425
Compressore
220/60/1
Compressor
220/60/1
Compresseur
220/60/1
Kompressor
220/60/1
Compresor
220/60/1
13
3
11
1
4
13
12
2
5
7
8
10
6
9
13
