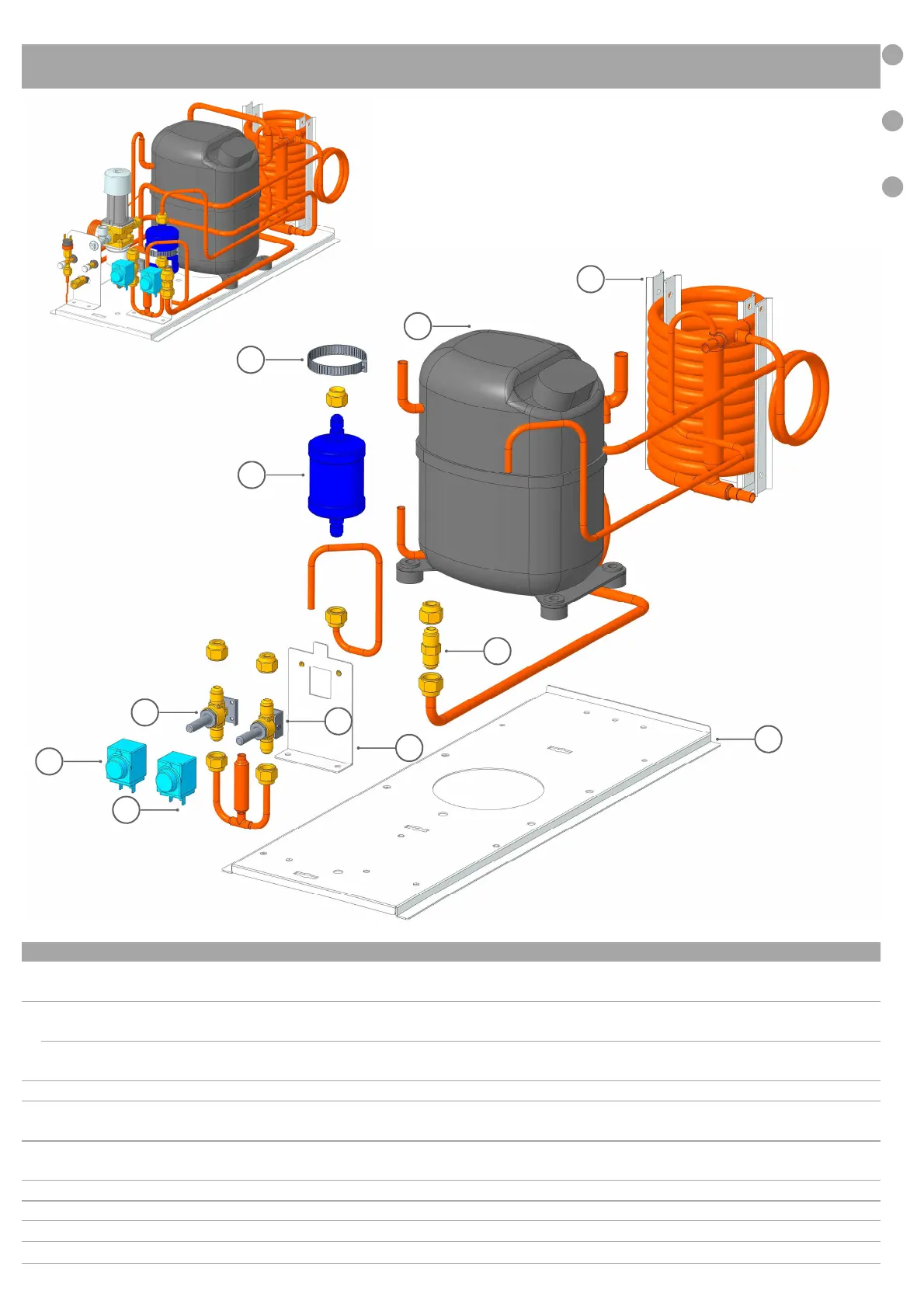

TAV 05 : Gruppo frigorifero, particolari 1/2 ● Refrigerant Unit, details 1/2 ● Unitè de réfrigeration, particuliers 1/2 ●
Kühlaggregat, details 1/2 ● Unidad de refrigeración, detalles 1/2
N. COD. DESCRIZIONE DESCRIPTION DESCRIPTION BESCHREIBUNBG DESCRIPTION
1 Z44.37404 Condensatore acqua Water Condenser Condenseur à eau Wasserkühler
Condensador de
agua
A01.237
Compressore
400/50/3
Compressor
400/50/3
Compresseur
400/50/3
Kompressor
400/50/3
Compresor
400/50/3
B01.42425
Compressore
220/60/3
Compressor
220/60/3
Compresseur
220/60/3
Kompressor
220/60/3
Compresor
220/60/3
3 G03.43113 Fascetta Clamp Serrer Klemme Abrazadera
4 A07.032 Filtro gas Refrigerant Filter Filtre réfrigérant Kältemittelfilter
Filtro de
refrigerante
5 B10.43222 Valvola solenoide Solenoid Valve Électrovanne Magnetventil Válvula de solen.
6 A02.154 Bobina Coil Bobine Spule Elektroventil Bobina
7 B12.43221 Raccordo Joint Jonction Kreuzung Unión
8 A04.43168 Staffa support Mounting Bracket Support Stützhalterung Soporte
9 A04.43028 Piastra Plate Plaque Platte Placa
2
1
1
1
1
2
3
4
5
6
9
7
8
5
6
