FRIGOMAT GX4Kompact, GX6, GX8 M04.42026 R.2019.05.30 x
EN
IT
FR

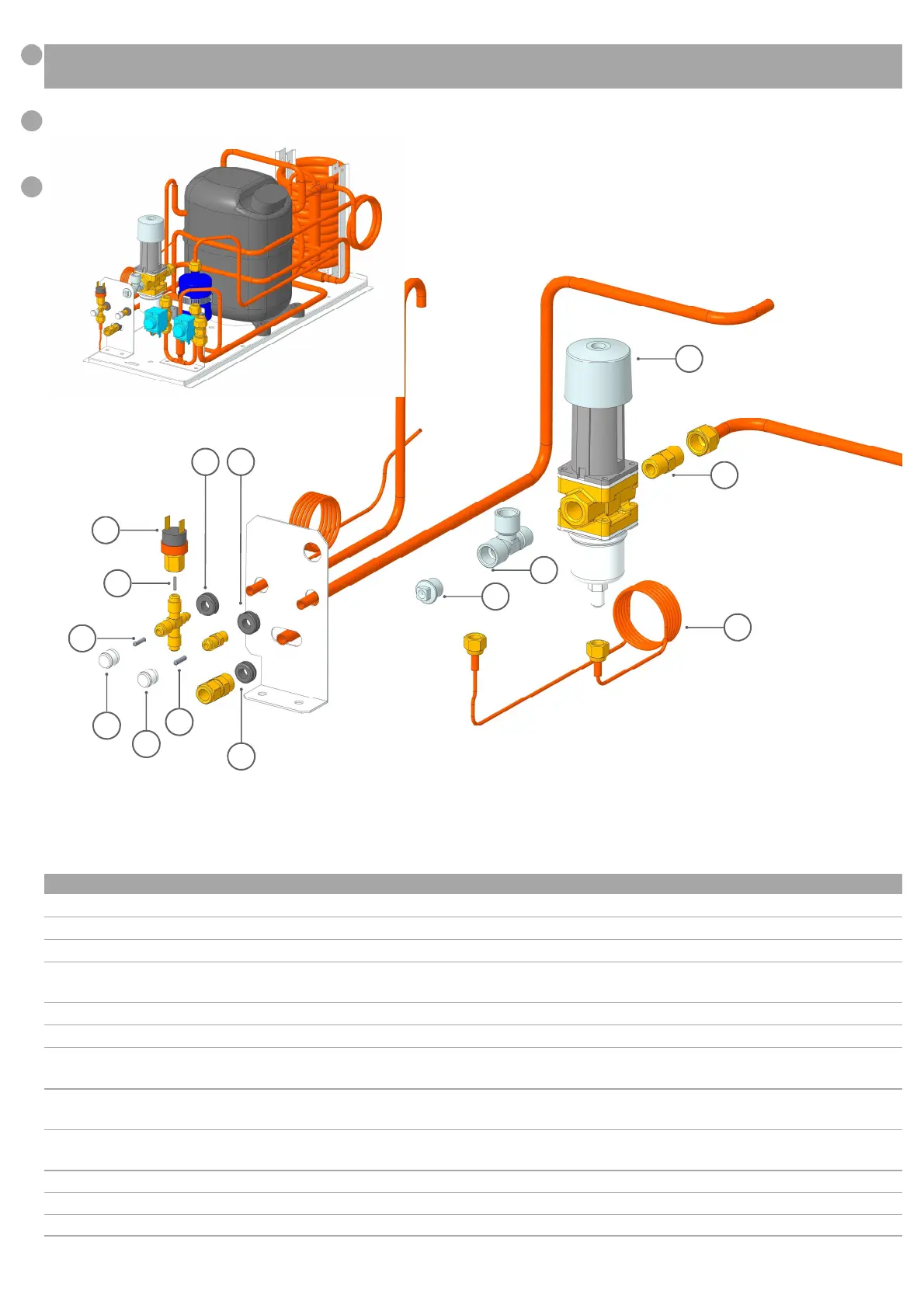

TAV 06 : Gruppo frigorifero, particolari 2/2 ● Refrigerant Unit, details 2/2 ● Unitè de réfrigeration, particuliers 2/2 ●
Kühlaggregat, details 2/2 ● Unidad de refrigeración, detalles 2/2
N. COD. DESCRIZIONE DESCRIPTION DESCRIPTION BESCHREIBUNBG DESCRIPTION
1 A02.061 Valvola pressostatica Water Valve Vanne d'eau Wasserventil Válvula de agua
2 B12.43170 Raccordo Joint Raccord Anschlußstück Unión
3 R05.009 Raccordo a T Tee-joint Raccord “T” T Anschlußstück Unión en “T”
4 R08.055 Tappo Closing Cap
Bouchon de
fermeture
Verschlusskappe Tapa de cierre
5 T50.016 Capillare Capillary Tube Tube capillaire Kapillarrohr Tubo capilar
6 A02.140 Pressostato Pressure Switch Pressostat Druckwächter Presóstato
7 B12.43115 Spillo alta temp.
Core Access
Valve HT
Aiguille HT
Hochtemperatur-
nadel
Aguja de alta
temperatura
8 R02.034 Spillo bassa temp.
Core Access
Valve LT
Aiguille LT
Niedertemperatur-
nadel
Aguja de baja
temperatura
9 R02.032 Cappuccio protective cap
capuchon de pro-
tection
Schutzkappe Tapa protectora
10 P04.007 Antivibrante Anti vibration Anti vibration Anti vibration anti-vibración
11 D06.057 Antivibrante Anti vibration Anti vibration Anti vibration anti-vibración
1
1
1
9
6
1
2
3
4
5
7
7
9
8
10
11
10
