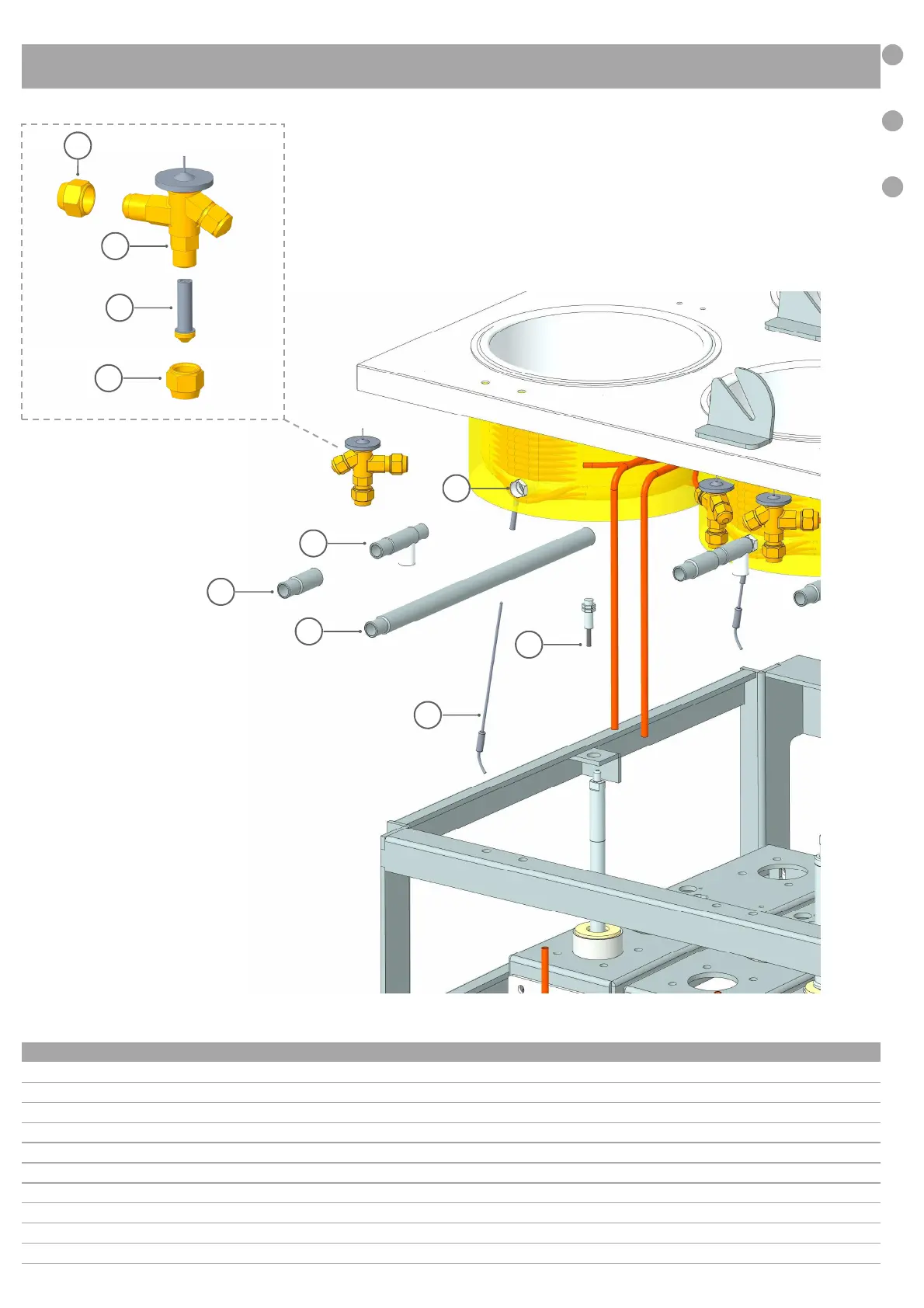

TAV 11 : Componenti circuito refrigerazione ● Refrigeration circuit components ● Composants du circuit de réfrigération ●
Komponenten des Kühlkreislaufs ● Componentes del circuito de refrigeración.
N. COD. DESCRIZIONE DESCRIPTION DESCRIPTION BESCHREIBUNBG DESCRIPTION
1 A02.190 Valvola Termostatica Liquid Valve Vanne thermost. Thermostatventil Válvula termostát.
2 A02.191 Orificio Orifice Orifice Öffnung Orificio
3 R01.007 Raccordo Nut Écrou Nuss Tuerca
4 R01.021 Raccordo Nut Écrou Nuss Tuerca
5 L19.41953 Ghiera Locking ring Anneau de verr. Sicherungsring Anillo de bloqueo
6 Z83.41952 Rubinetto scarico Drain Tap Robinet de vid. Hahn ablassen Drene la polla
7 L19.43173 Tubo scarico Water Drain Pipe Tuyau de drainage Wasserablaufrohr Tubo de drenaje
8 L19.43167 Tubo scarico Water Drain Pipe Tuyau de drainage Wasserablaufrohr Tubo de drenaje
9 D05.141 Sensore Reed Capteur Sensor Sensor
10 E05.43129 Sonda Thermistor Thermistance Thermistor Termistor
2
7
6
8
10
9
3
1
4
5
