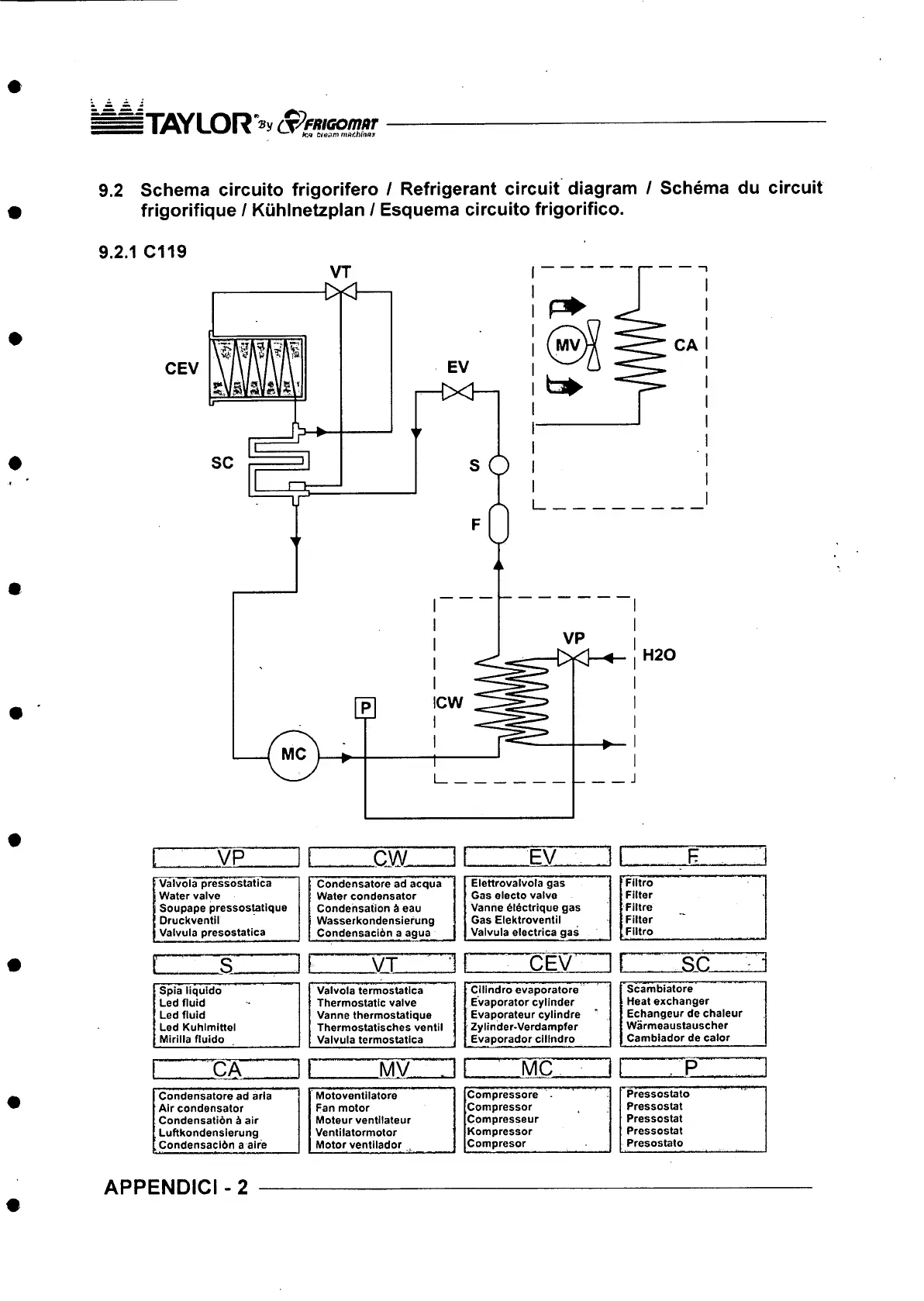

9.2 Schema circuito frigorifero / Refrigerant circuit diagram / Schema du circuit
frigorifique / Kuhinetzplan / Esquema circuito frigorifico.
9.2.1 C119
CEV
VP
.............
CW
_______
J
EV F
Valvola pressostatica
Condensatore ad acqua
Elettrovalvola gas
Filtro
Water valve
Water condensator
Gas electo valve
Filter
Soupape pressostatique
Condensation i eau
Vanne blectrique gas
Filtre
Druckventil Wasserkondensiefung
Gas Elektroventil
Filter
Valvula presostatica
Condensacibn a agua
Valvula electrica gas
Filtro
s
V T . ■ ^ •
[ _ SC . ■
Spia liquido Valvola termostatica j
Cllindro evaporators
Scambiatore
Led fluid Thermostatic valve j
Evaporator cylinder
Heat exchanger
Led fluid Vanne thermostatique j
Evaporateur cylindre
Echangeur de chaleur
Led Kuhimittel Thermostatisches ventll j
Zylinder-Verdampfer
Warmeaustauscher
Mirilla fluido Valvula termostatica |
Evaporador cilindro
Cambiador de calor
CA 1 MV
MC
P
Condensatore ad aria
Motoventilatore
Compressors .
Pressostato
Air condensator
Fan motor
Compressor
Pressostat
Condensatidn b air
Moteur ventilateur
Compresseur
Pressostat
Luftkondenslerung
Ventilatormotor
Kompressor
Pressostat
Condensacibn a aire Motor ventilador ^
Compresor
Presostato
