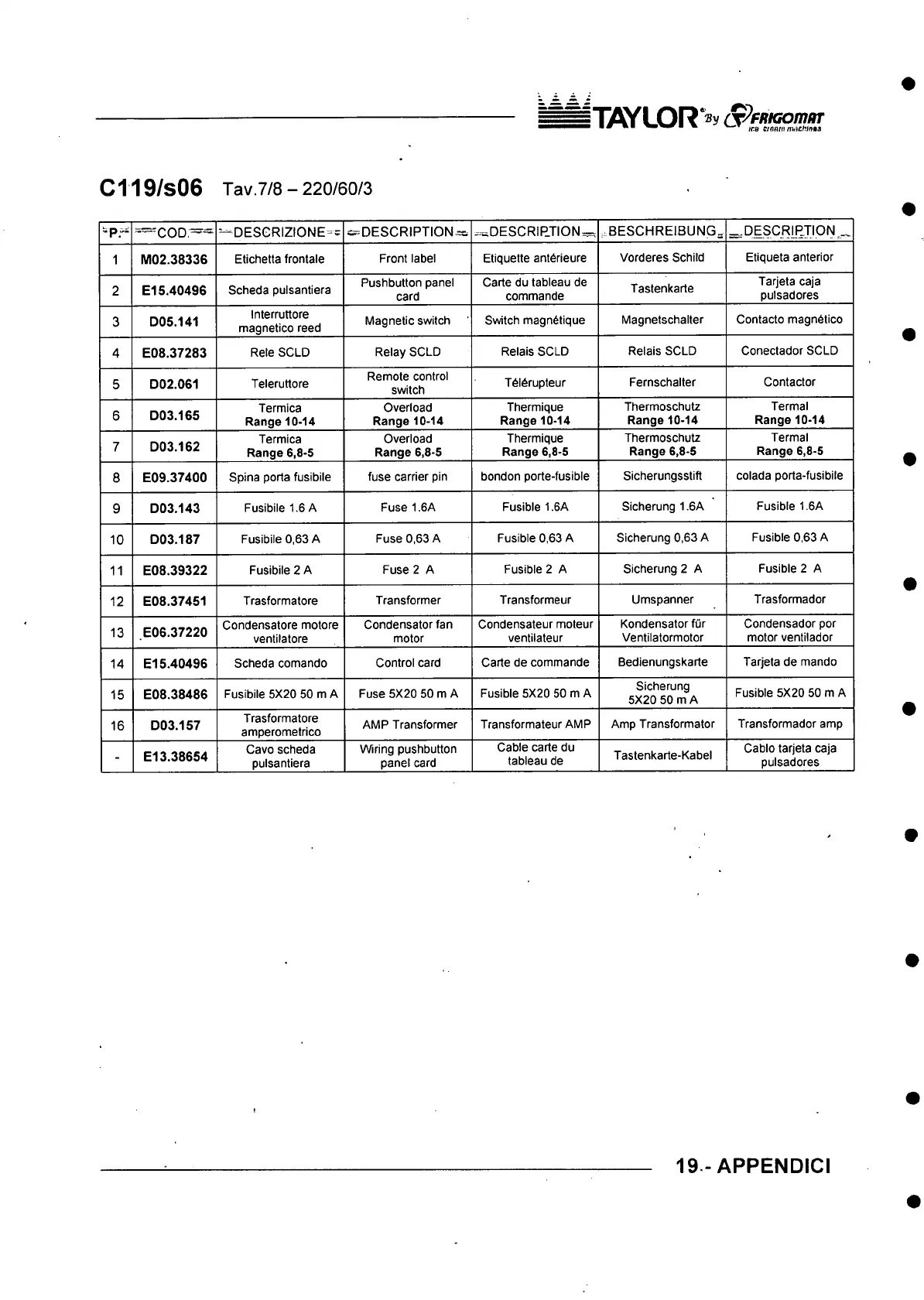

C119/s06 Tav.7/8 - 220/60/3
-p ." = C O D .= = ^
=-“ DESGRIZIONE-=
^D E S C R IP T IO N ^
^DESCRIP.TION=:r,
,.BESCHREIBUNG, ^D E S C R LP JIO N _
1
M 02.38336
Etichetta frontale
Front label Etiquette ant6rieure
Vorderes Schild
Etiqueta anterior
2
E l 5.40496
Scheda pulsantiera
Pushbutton panel
card
Carte du tabieau de
commande
Tastenkarte
Tarjeta caja
pulsadores
3
D05.141
Interruttore
magnetico reed
Magnetic switch
Switch magn6tique
Magnetschalter Contacto magndtico
4 E08.37283
Rele SOLD
Relay SCLD
Relais SCLD
Relais SCLD
Conectador SCLD
5
D02.061
Teleruttore
Remote control
switch
T6i6rupteur
Fernschalter
Contactor
6
D03.165
Termica
Range 10-14
Overload
Range 10-14
Thermique
Range 10-14
Thermoschutz
Range 10-14
Termal
Range 10-14
7 D03.162
Termica
Range 6,8-5
Overload
Range 6,8-5
Thermique
Range 6,8-5
Thermoschutz
Range 6,8-5
Termal
Range 6,8-5
8
E09.37400
Spina porta fusibile
fuse carrier pin
bondon porte-fusibie
Sicherungsstift
colada porta-fusibile
9
D03.143
Fusibiie 1.6 A
Fuse 1.6A
Fusible 1.6A
Sicherung 1.6A Fusible 1.6A
10
D03.187
Fusibiie 0,63 A
Fuse 0,63 A
Fusible 0,63 A
Sicherung 0,63 A Fusible 0,63 A
11
E08.39322
Fusibile 2 A
Fuse 2 A
Fusible 2 A
Sicherung 2 A Fusible 2 A
12
E08.37451
Trasformatore
Transformer Transformeur
Umspanner Trasformador
13
E06.37220
Condensatore motore
ventilatore
Condensator fan
motor
Condensateur moteur
ventilateur
Kondensator fur
Ventilatormotor
Condensador por
motor ventilador
14 E l 5.40496
Scheda comando
Controi card
Carte de commande
Bedienungskarte Tarjeta de mando
15
E08.38486
Fusibile 5X20 50 m A
Fuse 5X20 50 m A
Fusible 5X20 50 m A
Sicherung
5X20 50 m A
Fusible 5X20 50 m A
16
D03.157
Trasformatore
amperometrico
AMP Transformer
Transformateur AMP
Amp Transformator Transformador amp
-
E l 3.38654
Cavo scheda
pulsantiera
Wiring pushbutton
panel card
Cable carte du
tableau de
Tastenkarte-Kabel
Cablo tarjeta caja
pulsadores
