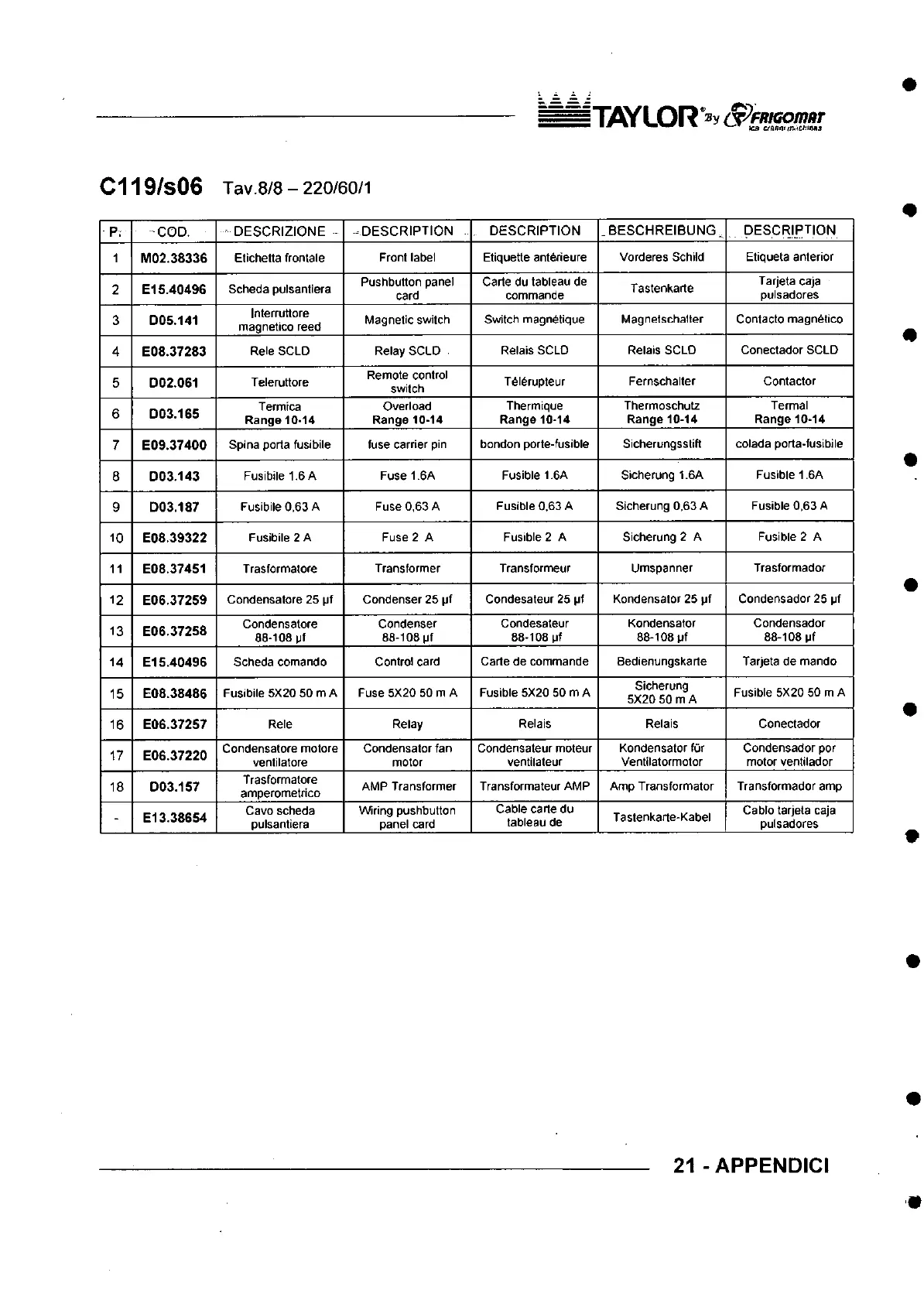

C119/s06 Tav.8/8 - 220/60/1
Pv -COD.
DESCRIZIONE ^
-DESCRIPTION DESCRIPTION
^BESCHREIBUNG^
DESCRIPTION
1
M02.38336
Etichetta frontale
Front label
Etiquette ant6rieure Vorderes Schild
Etiqueta anterior
2
E15.40496
Scheda pulsantiera
Pushbutton panel
card
Carte du tableau de
commande
Tastenkarte
Tarjeta caja
pulsadores
3 D05.141
Interrutlore
magnetico reed
Magnetic switch
Switch magn^tique Magnetschalter Contacto magnStico
4 E08.37283
Rele SCLD
Relay SCLD .
Relais SCLD Relais SCLD
Conectador SCLD
5 D02.061
Teleruttore
Remote control
switch
T6l6rupteur Fernschalter
Contactor
6 D03.16S
Termica
Range 10-14
Overload
Range 10-14
Thermique
Range 10-14
Thermoschutz
Range 10-14
Termal
Range 10-14
7 E09.37400
Spina porta fusibile
fuse carrier pin
bondon porte-fusible
Sicherungsstift colada porta-fusibile
8 D03.143
Fusibile 1.6 A
Fuse 1.6A
Fusible 1.6A
Sicherung 1.6A Fusible 1.6A
9 D03.187
Fusibile 0,63 A
Fuse 0,63 A
Fusible 0,63 A
Sicherung 0,63 A Fusible 0,63 A
10
E08.39322
Fusibile 2 A
Fuse 2 A Fusible 2 A
Sicherung 2 A
Fusible 2 A
11 E08.37451
Trasformatore
Transformer Transformeur
Umspanner Trasformador
12
E06.37259
Condensatore 25 pf
Condenser 25 pf
Condesateur 25 pf
Kondensator 25 pf Condensador 25 pf
13
E06.37258
Condensatore
88-108 pf
Condenser
88-108 pf
Condesateur
88-108 pf
Kondensator
88-108 pf
Condensador
88-108 pf
14
E15.40496
Scheda comando Control card
Carte de commande
Bedienungskarte Tarjeta de mando
15
E08.38486
Fusibile 5X20 50 m A Fuse 5X20 50 m A
Fusible 5X20 50 m A
Sicherung
5X20 50 m A
Fusible 5X20 50 m A
16
E06.37257
Rele
Relay Relais Relais
Conectador
17 E06.37220
Condensatore motore
ventilatore
Condensator fan
motor
Condensateur moteur
ventilateur
Kondensator fur
Ventilatormotor
Condensador por
motor ventilador
18
D03.157
Trasformatore
amperometrico
AMP Transformer
Transformateur AMP Amp Transformator
Transformador amp
-
El 3.38654
Cavo scheda
pulsantiera
Wiring pushbutton
panel card
Cable carte du
tableau de
Tastenkarte-Kabel
Cablo tarjeta caja
pulsadores
