2.3 Removing the old combustion chamber

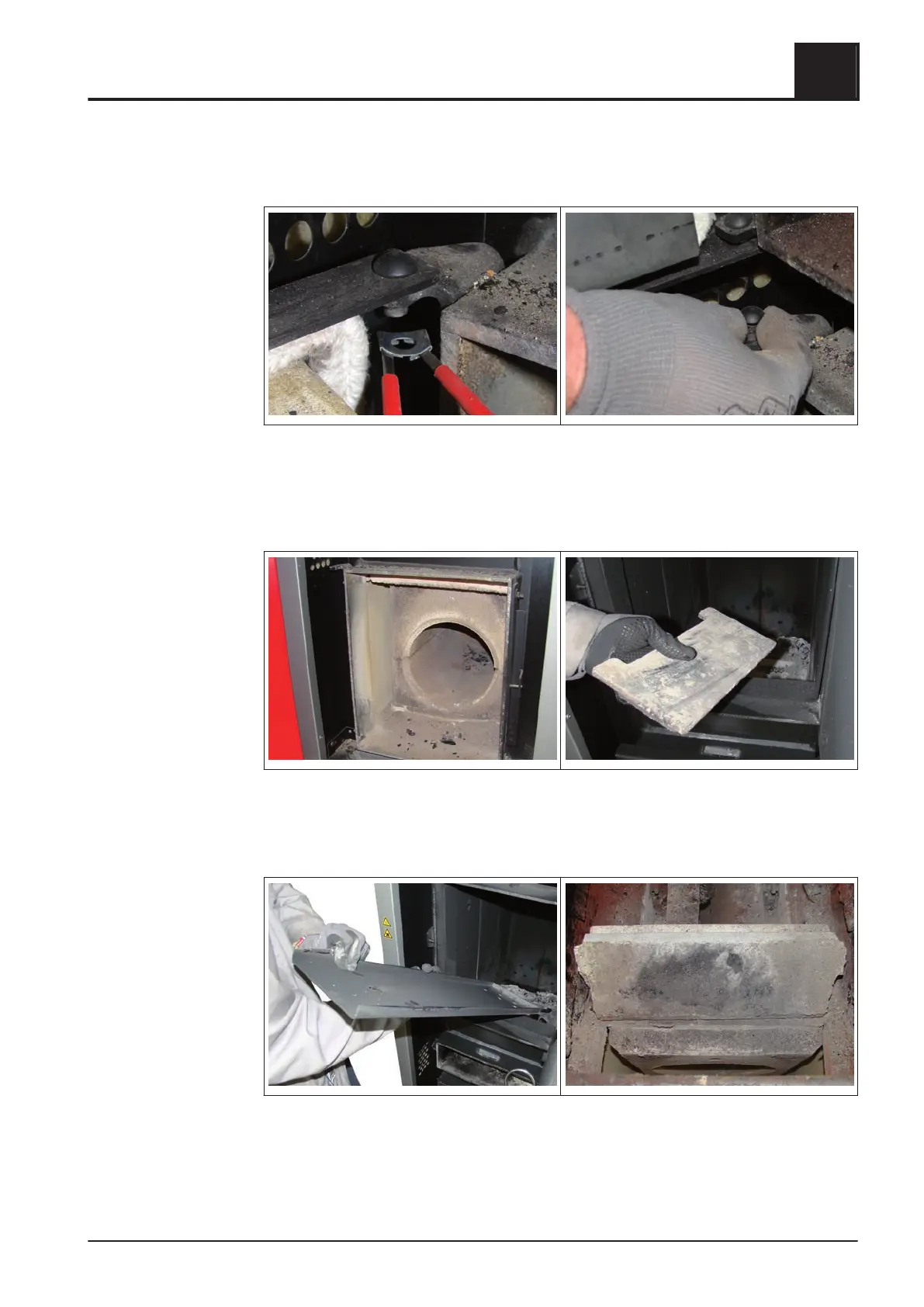

❒ Open the insulating door and combustion chamber door
❒
Gently bend open the bottom pin retainer using two flathead screwdrivers and re‐
move
❒ Pull out the door pin
❒
Repeat these steps for the top door pin and remove the combustion chamber door
❒ Remove the combustion grate
❒
Unhinge the linking plates and remove from the boiler
❒ Remove the triangular stone
Replacing the combustion chamber
2
Removing the old combustion chamber
Assembly Instructions Combustion chamber for FHG/S3 Turbo | M1410012_en-us 5
