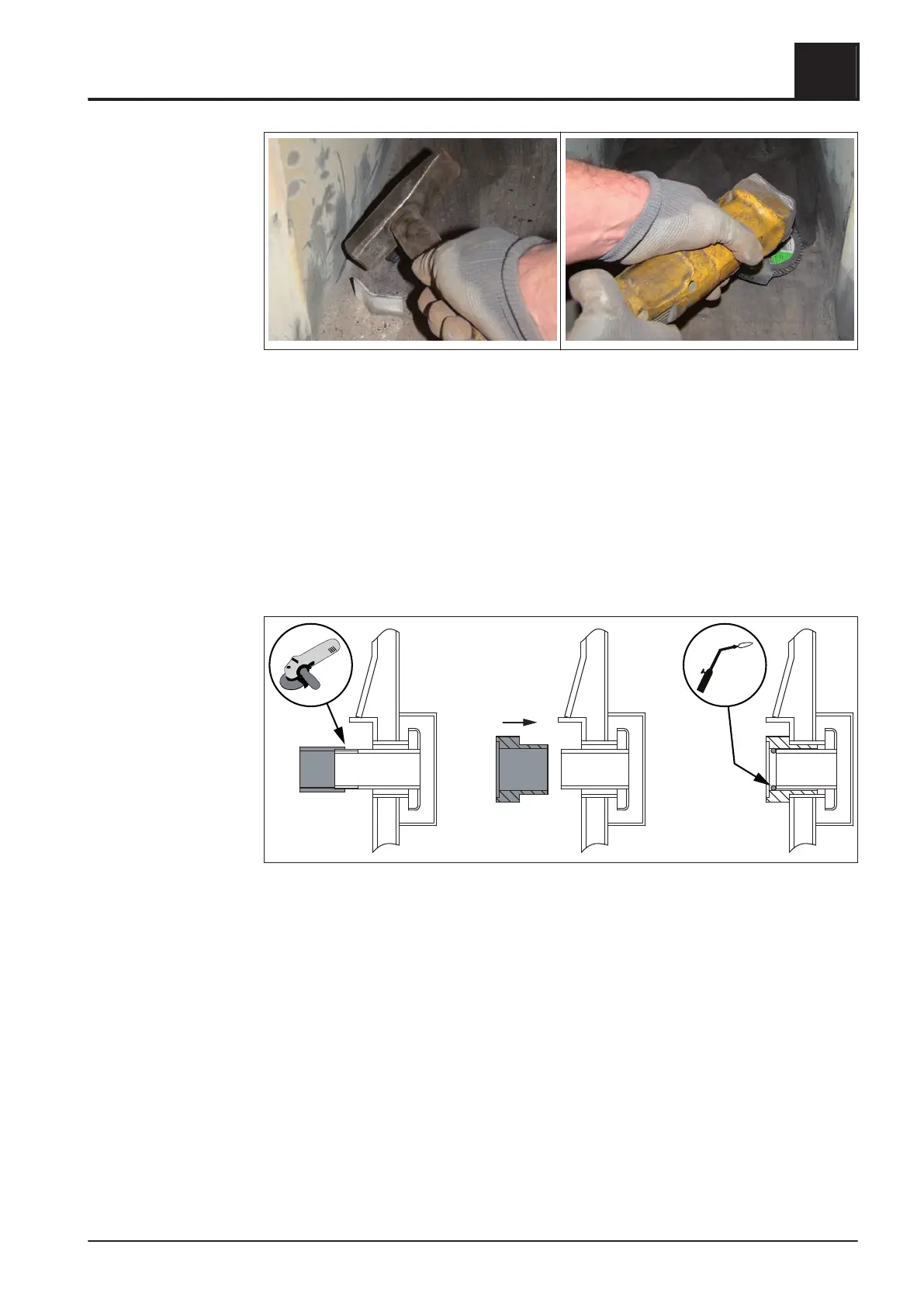

Knock out the transport clamp using the hammer
❒ Thoroughly clean the boiler base and boiler casing
❒ Plane the protruding welds from the transport clamp on the boiler base using an
angle grinder
2.4 Additional steps for boilers constructed between 1995 and 2000
In combustion chambers constructed between 1995 and 2000 the secondary air pipes
protrude into the combustion chamber. The following additional steps are required be‐
fore installing the new combustion chamber:
❒
Cut off the left and right secondary air pipes directly at the sleeve using the angle
grinder
❒ Put on the adapter pipes provided and push in as far as the boiler casing
❒ Pull the air pipes in the adapter pipe inwards and affix with the welder
Replacing the combustion chamber
2
Additional steps for boilers constructed between 1995 and 2000
Assembly Instructions Combustion chamber for FHG/S3 Turbo | M1410012_en-us 7
