Froling T4 Series - General T4 Product Overview; T4 Product Overview

1.1 T4 product overview

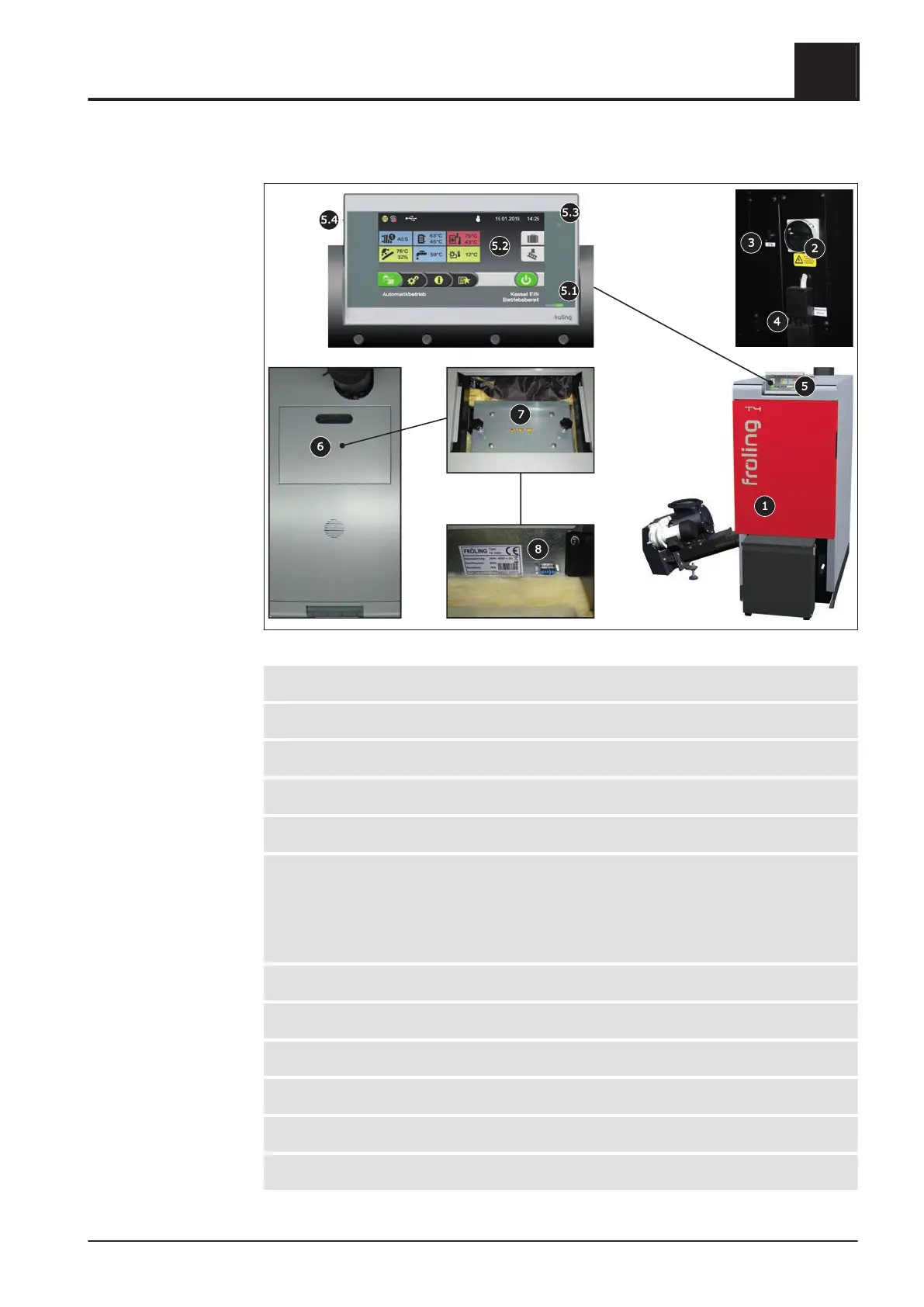

1 Wood chip boiler – Froling T4
2 Main switch: switches the power supply on and off for the entire system
3 High-limit thermostat STL
4 Mains supply
5 Control panel of the Lambdatronic H 3200 T4 Touch controller
5.1 Status LED (operating status):
- GREEN constant: BOILER SWITCHED ON
- GREEN flashing (interval: 5 sec. OFF, 1 sec. ON): BOILER SWITCHED OFF
- ORANGE flashing: WARNING
- RED flashing: FAULT
5.2 Large touch screen for displaying and changing operating statuses and parameters
5.3 Brightness sensor to automatically adjust the display brightness
5.4 USB port for connecting a USB stick for software updates
6 Insulating cover
7 Heat exchanger cover
8 Service port
