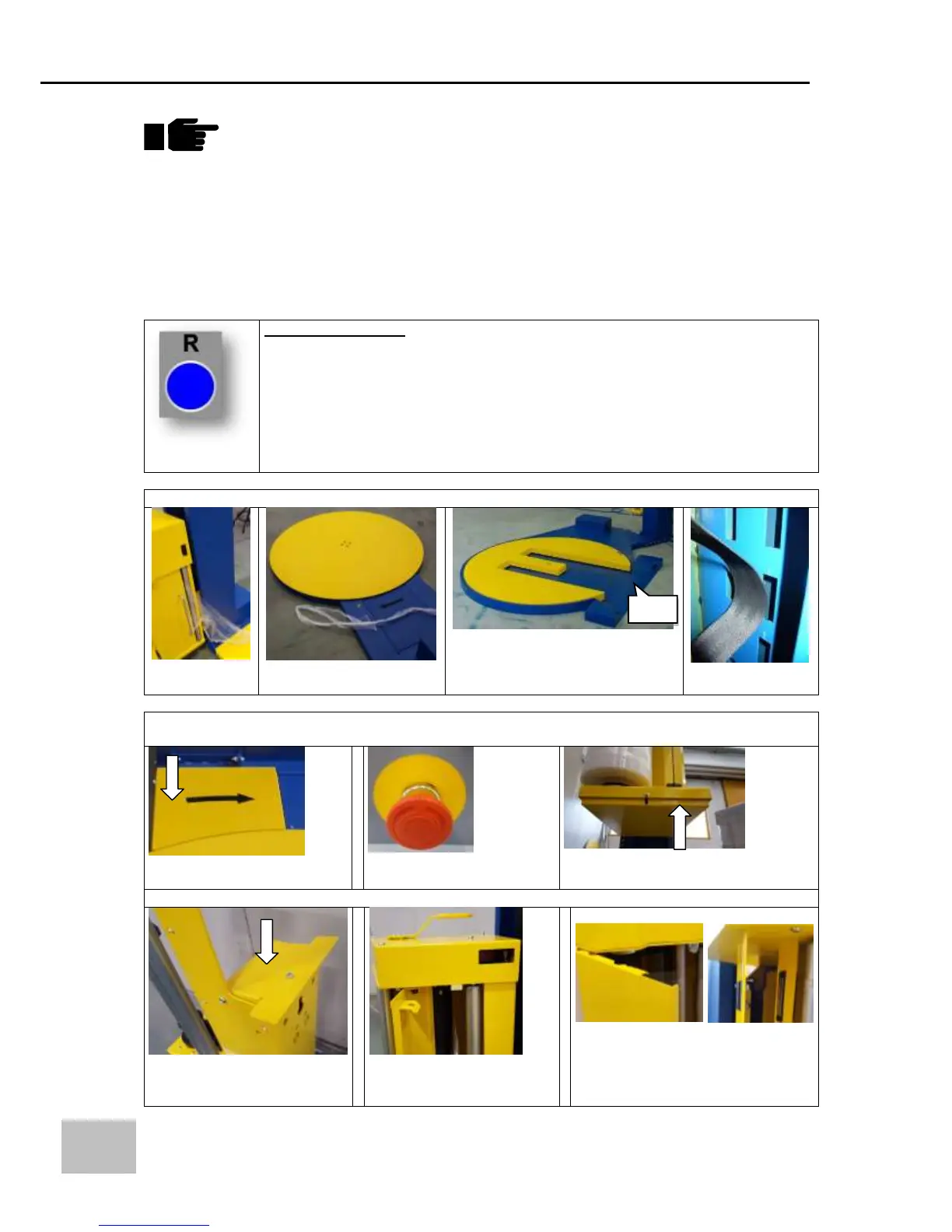

ALARMS
E1: Fault inverter 1x long continue beep / warning light continue
E2: Film brake 2x beep / warning light (repeated sequence)
E3: Safety contact 3x beep / warning light (repeated sequence)
E4: No pallet detect 4x beep / warning light (repeated sequence)
E5: Safety horseshoe 5x beep / warning light (repeated sequence)
E6: Turntable time out 6x beep / warning light (repeated sequence)
E7: Belt tension 7x beep / warning light (repeated sequence)
Information
Reactivation button.
Reactivation power in the wrapping machine.
When an error involving a Stop occurs, once it has been removed the cause that has
generated the error, it is necessary press the Reactivation button to restore the
power in the panel.
Pressing Reactivation button one time, the machine will do an continue beep
simultaneously with an continue flash on the buzzer.
Film brake (Fig.1) / No pallet detect (Fig.2) / SAFETY DEVICE horseshoe (Fig.3) / Belt tension (Fig.4)
Fig. 1 E2
Fig. 2 E4
Fig.3 E5
An obstacle between the
photocell and the reflector
Fig. 4 E7
The safety device of the base (Only for 1.650mm Turntables) has been pressed (Fig.1).
The Emergency button (Fig.2) and safety protections has been pressed (Fig.3).
Fig.1 E3
Fig.2 E3
Fig.3 E3 / Carriage:
Anti-crushing device
Safety device and the protections on the Carriages are activated (Fig. 1 / 2 / 3)
Fig.1 E3
Carriage with roll core brake.
The bracket is pressed
Fig.2 E3
Carriage with one roll brake.
The door is open
Front Back
Fig.3 E3
Carriage with one motor pre-stretch.
The doors are open
