MAINTENANCE INSTRUCTIONS

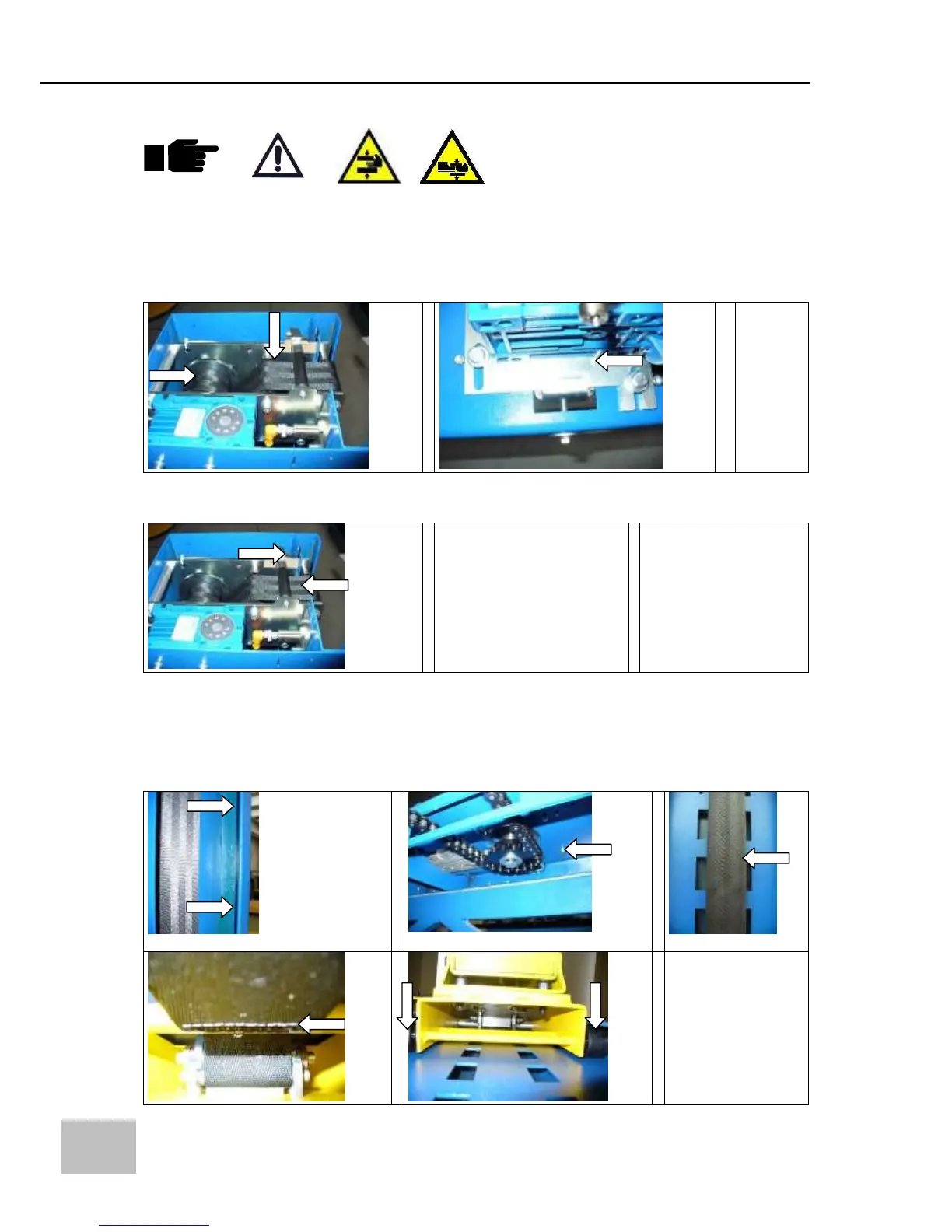

Twice-yearly maintenance operations
- Check the conditions of the motor-reducer-belt unit. (Fig.1)
- Check the tension of the chain that rotates the disk; adjust the tension by tightening or loosening
the hex screws. (Fig.2)
Fig.1
Fig. 2
- Check operation of the “belt tension control system”. (Fig.1)
Fig. 1
- Grease the column along which the carriage moves up and down; (Fig.1)
- Grease the chain that rotates the turntable; (Fig.2)
- Check the conditions of the column’s safety belt; (Fig.3)
- Check the belt’s mesh; (Fig.4)
- Check the conditions of wear of the carriage unit’s wheels; (Fig.5)
Fig.1
Fig.2
Fig.3
Fig.4
Fig.5
