Fromm P320 - EXCHANGE OF WEARING PARTS; 10.1 Exchange of tensioning wheel and grippers

17
10 EXCHANGE OF WEARING PARTS
Remove always the battery from the tool before starting maintenance works.
10.1 Exchange of tensioning wheel and grippers
Disassembling
• Unscrew end cover P32.1238 and remove it;
• Remove the torsion spring N2.5823;
• Remove the tensioning body P32.1221;
• Remove the tensioning wheel together with the bearing N3.1172 from the tool;
• Unscrew the holders P32.1228 and P32.1229 and remove them from the tensioning body;
• Remove the grippers from the tensioning body .
Assembling
Assembling in opposite order. Observe the following:
• Lubricate the internal toothing of the tensioning wheel with Molykote BR 2 plus.

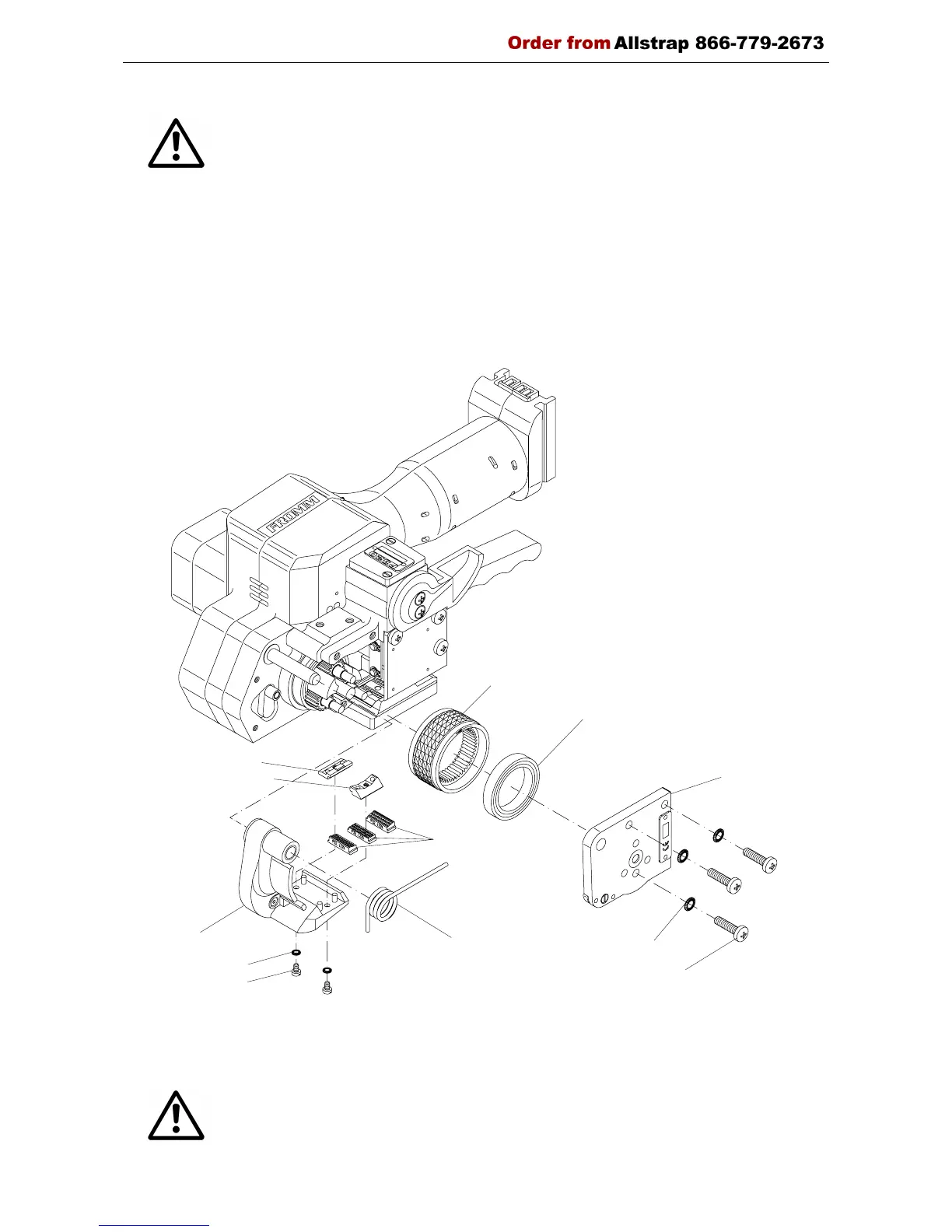

Observe the position of the tensioning wheel. The direction of rotation of the
tensioning wheel is marked at the front of the tensioning wheel (see drawing).
Observe the position of the grippers (see drawing).
P32.1238
N2.5823
P32.1221
N3.1172
Tensioning wheel
N1.1909
P32.1229
P32.1228
Grippers
N1.1904
N1.6503
N1.6505
