19
Assembling
Assembling in opposite order. Observe the following:
• Pay attention to the proper seat of the thrust piece on the spring bolt P32.1030 when lifting the rocker.
• Pay attention to the fitting position of the cutter (see drawing).
Lubrication
• Lubricate the rocker and the bolt P32.1028 in the area of the welding jaw with Klüber Isoflex NBU 15.
• Lubricate the balls, ball cage and the running surface of the balls on the welding gripper with Klüber Isoflex
Alltime SL2.
• Lubricate the cutter and the driver with Esso Beacon 2.
After assembling
Adjust the welding pressure according to the thickness of the strap! (see 5.2.3)
10.3 Adjustment of the coupler P32.1250
The coupler is adjusted in our works.
In case of replacing the seesaw lever, the coupler or the lever body, the coupler has to be readjusted.
Procedure as follows:
Lever P32.1034 in start position.
The battery is removed from the tool.
The coupler is fitted into the tool.
• Loosen screw N1.1553.
• Displace thrust piece P32.1252, so that it touches
the two seesaw levers without moving them.
• Retighten screw N1.1553.

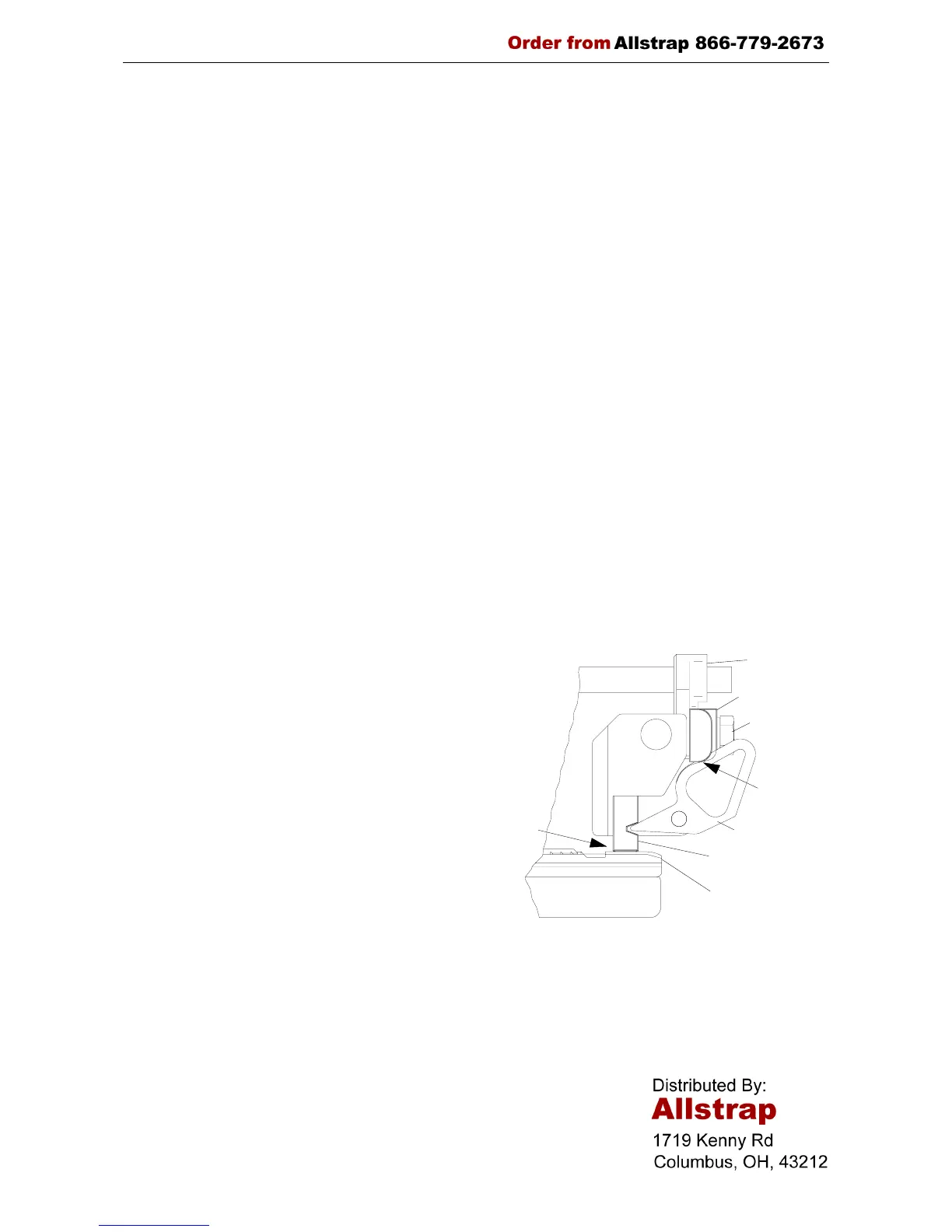

Control:
The thrust piece must touch the seesaw levers (X1).
Both guide pins must sit on the welding stop
gripper(X2).
Coupler
Thrust piece
N1.1553
Seesaw lever
Welding stop
X1
X2
Guide pin
gripper
