10.2 Exchange of cutter, welding stop gripper and welding gripper
Disassembling
• Unscrew cover P32.1211 and remove it;
• Unscrew end cover P32.1238 and remove it;
• Disassemble security ring N2.1118, pull the grip axle P32.1215 from the tool;
• Tilt down the handle lever P32.1212 and remove it from the tool;
• Don’t loosen screw N1.1553 at the coupler P32.1250.
• Disassemble the security ring N2.1121 from the coupler P32.1250, remove the coupler;
• Pull out the centering sleeve P32.1208 from the guide case to left, disassemble the guide case;
• Pull out the pressure spring N2.5237 with a screw driver from the cutter P32.1204;
• Remove the cutter from the driving pin P32.1032;
• Disassemble the screws N1.1305, lift slightly the welding stop gripper P32.1203 and the steel insert and
remove them from the tool;
• Adjust the welding pressure with the adjusting pin to the thickness of the strap 0.40 - 0.57 mm;
• Push the steel insert without welding stop gripper under the welding gripper until it touches the parallel pin
N2.2110;
• Turn the lever P32.1034 in welding position;
• Disassemble the safety ring N2.1121 from the bolt P32.1028, remove the bolt from the welding gripper;
• Turn the lever P32.1034 in start position;
• Pull out the steel insert with care to right under the welding gripper;
• Disassemble the security rings N2.1121 from the driving pin P32.1032, remove the driver P32.1035 from
the driving pin;
• Lift the rocker P32.1024 behind the welding gripper with a screw driver, remove the welding gripper
together with the ball cage P32.1027 and the balls N3.1702 from the tool;
• Lower the rocker, remove the thrust piece P32.1029 from the tool.

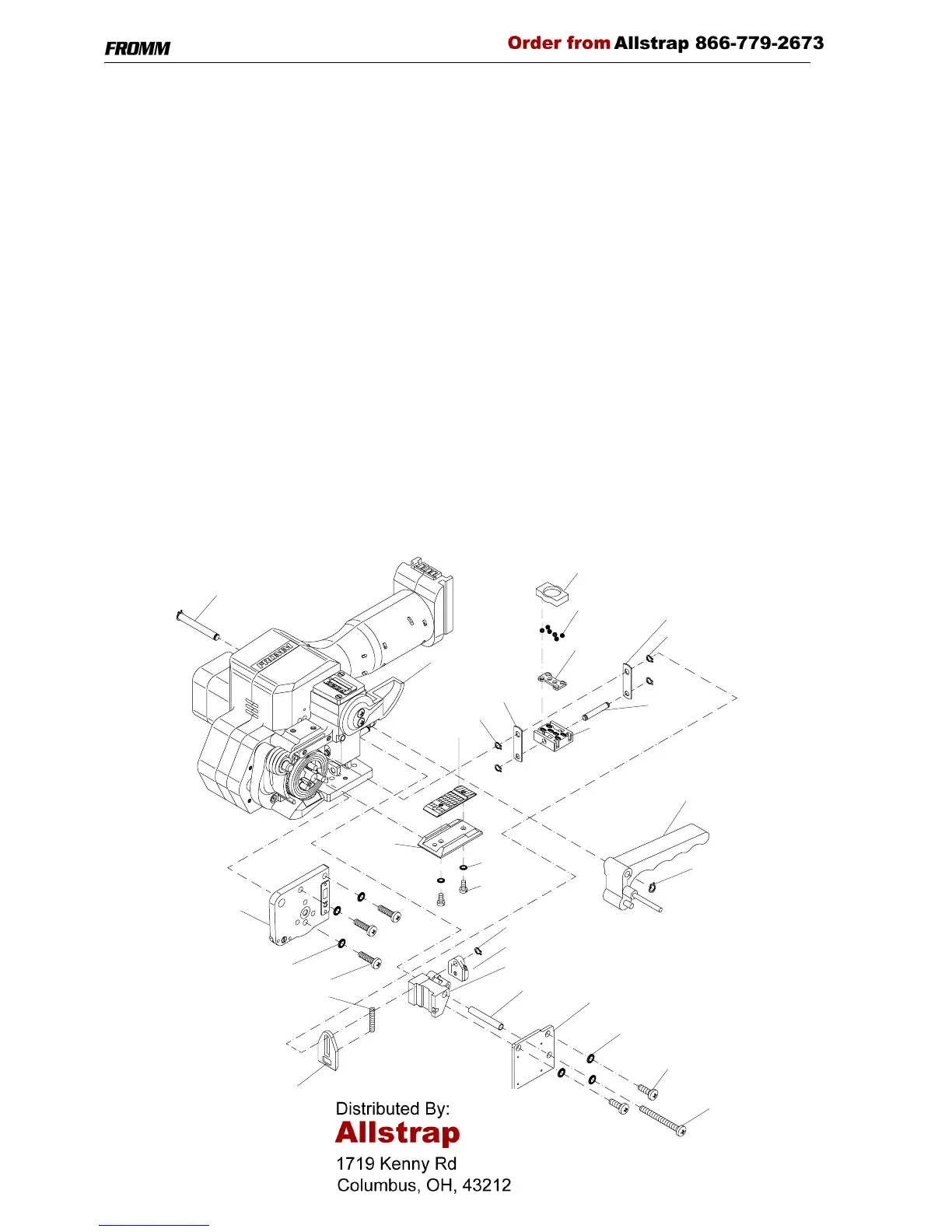

N1.1904
N1.1929
N1.6503
Steel insert
P32.1203
P32.1211
P32.1238
N1.1904
N1.6503
P32.1204
N2.5237
Guide case
P32.1250
N2.1121
P32.1208
N2.1118
N2.1121
P32.1212
N2.1121
Welding gripper
P32.1028
P32.1035
P32.1035
P32.1034
P32.1027
6 x N3.1702
P32.1029
P32.1215
N1.1305
N1.6504
