1-12
Eccentric shaft P32.8121, Spring slide P32.8116, Spring bolt P32.8117 and the Pressure spring N21.5138
have to be greased as follows:
Lubrication interval: While each maintenance or after 12 months at the latest.

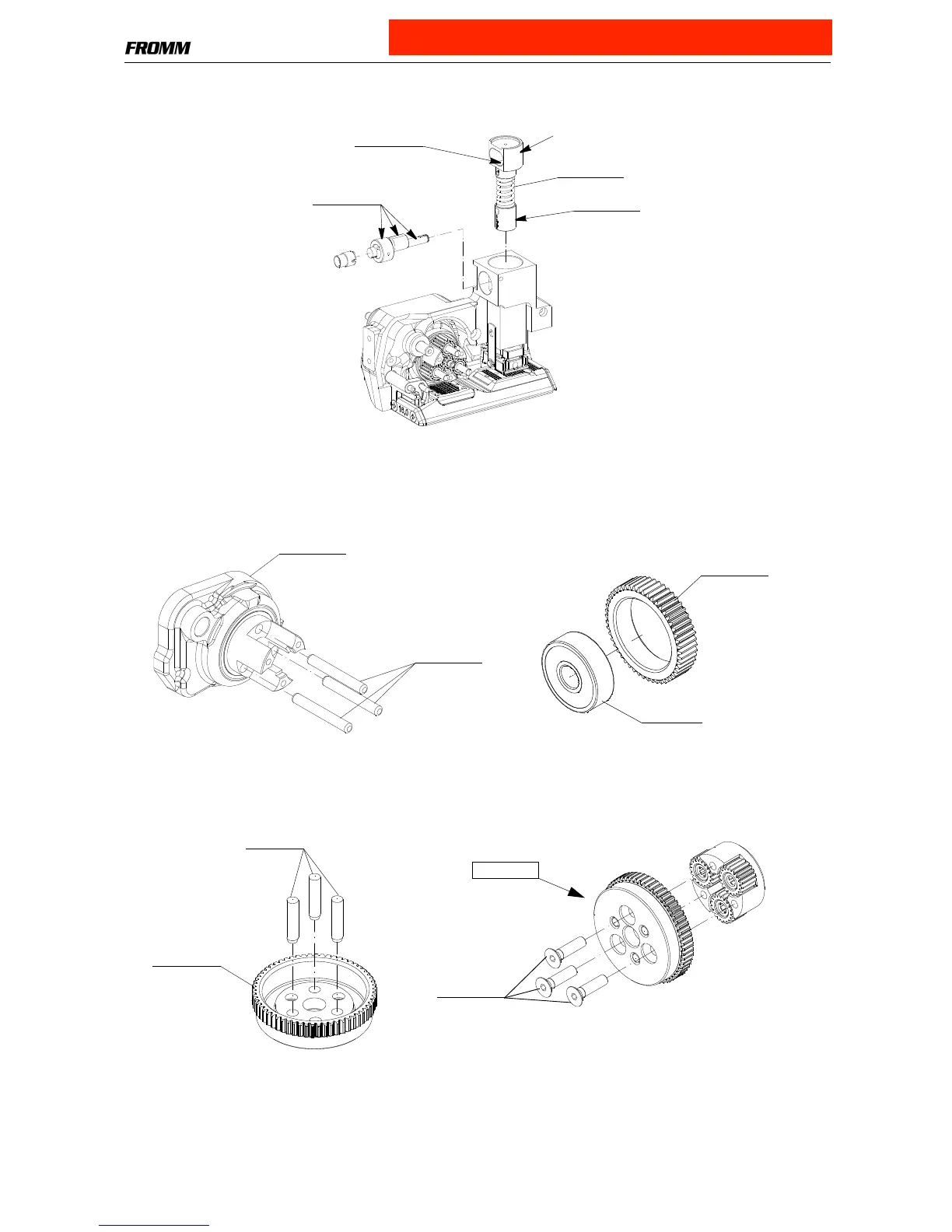

1.4.6 Glueing rules
N21.2145
N2.2145
P32.8128
N1.2188
P32.0205
P32.8131
P32.2016
N3.1159
The Bearing N3.1159 has to be glued into
the gear wheel P32.2016 with LOCTITE 603.
The parallel pins N21.2145 have to be glued into the
gear body P32.8131 using LOCTITE 603.
Gear wheel P32.8128 and
parallel pins N2.2145
have to be glued with
LOCTITE 603
The screws N1.2188 have to be glued
additionally in the wheel P32.0205 using
LOCTITE 222.
Don‘t damage the teeth when loosening or
tightening the screws.
