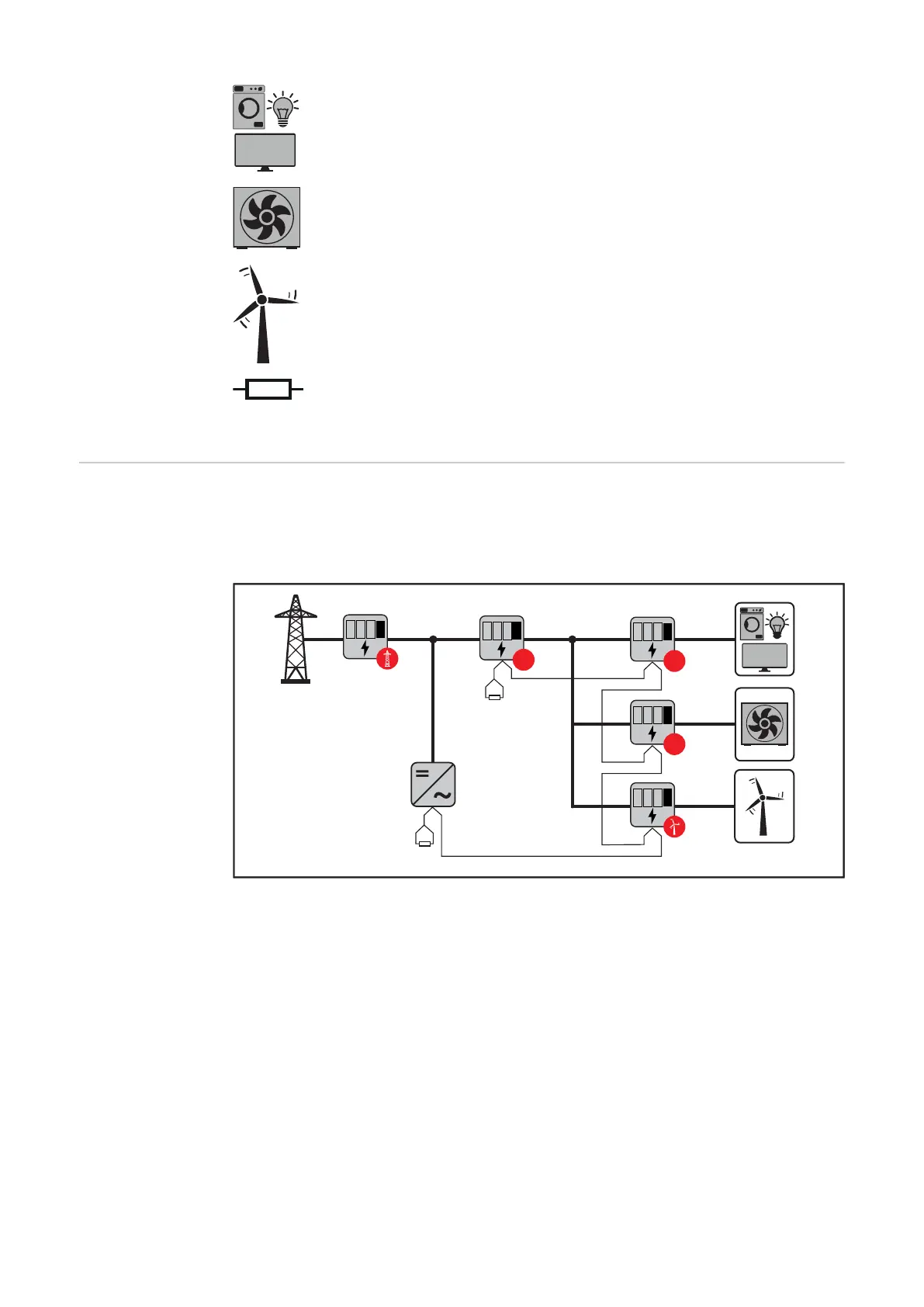

Fronius 50kA-3 - Multi-Meter System

Loads in the system
e. g. washing machine, lamps, TV, etc.
Additional loads in the system
e. g. heat pump
Additional producers in the system
e. g. wind power plant
Terminating resistor
R 120 Ohm
Multi-meter sys-
tem
If several Fronius Smart Meters are being installed, a separate address (see Setting
the address of the Fronius Smart Meter page 17) must be set for each one. The
primary meter always has address 1, all other meters are numbered in the address
range from 2 to 14. Different types of Fronius Smart Meter can be used together.
00
1
6
7
00
1
6
7
1
00
1
6
7
2
00
1
6
7
2
00
1
6
7
*
*
Data communication
Position of the primary meter in the consumption branch. *Terminating resistor R 120 Ohm
