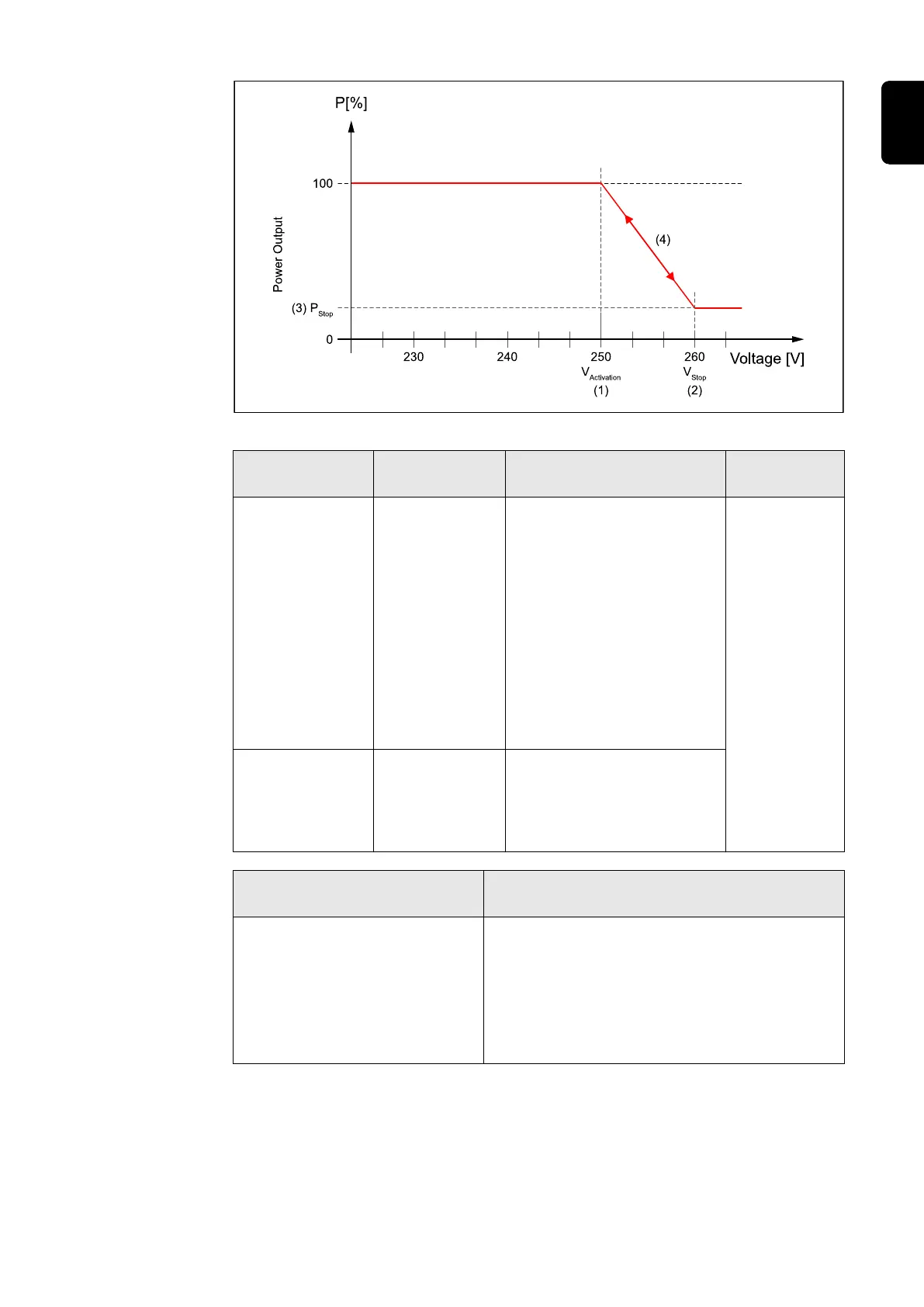

Power curve when "Activation Threshold Overvoltage" is exceeded.
Parameter Range of val-
ues
Description Availability
"Stop Voltage at
Undervoltage"
200 ‑ 311 [V] Mains voltage limit value
up to which the charging
power of the battery is re-
duced. The gradient is cal-
culated automatically
from the parameters "Ac-
tivation Threshold Under-
voltage" and "Power at
Stop Voltage at Under-
voltage". The parameters
"Gradient Undervoltage"
and "Calculation Mode"
have no function.
Used ex-
clusively in
the follow-
ing setups:
-
AUS
Region
A 2020
-
AUS
Region
B 2020
-
AUS
Region
C 2020
-
NZS
2020
"Power at Stop
Voltage - Under-
voltage"
0 ‑ 100 [%] Reference power when the
set mains voltage limit
value is reached. Only for
devices with battery in
charging mode.
Example: Setups AUS/NSZ
2020
Description of the parameters
-
"Mode": On (without hys-
teresis)
(1) "Activation Threshold Undervoltage":
210 V
(2) "Stop at Voltage at Undervoltage":
200 V
(3) "Power at Stop Voltage - Under-
voltage": 20 %
