ent power and by "Cos φ Minimum". For the characteristic curves, the data points
in the X‑axis (effective power) and in the Y‑axis (reactive power) must be entered.
Point Parameter Range of val-
ues
Description
1 "Active Power
(% of Nominal
Apparent
Power)"
0 % ‑ 100 % Effective power in percent
[%] related to the nominal ap-
parent power S
n
(X‑axis).
"Reactive Power
(% of Nominal
Apparent
Power)"
-100 % ‑ 100 % Reactive power in percent [%]
related to the nominal appar-
ent power S
n
(Y‑axis).
2 "Active Power
(% of Nominal
Apparent
Power)"
0 % ‑ 100 % Effective power in percent
[%] related to the nominal ap-
parent power S
n
(X‑axis).
"Reactive Power
(% of Nominal
Apparent
Power)"
-100 % ‑ 100 % Reactive power in percent [%]
related to the nominal appar-
ent power S
n
(Y‑axis).
3 "Active Power
(% of Nominal
Apparent
Power)"
0 % ‑ 100 % Effective power in percent
[%] related to the nominal ap-
parent power S
n
.
"Reactive Power
(% of Nominal
Apparent
Power)"
-100 % ‑ 100 % Reactive power in percent [%]
related to the nominal appar-
ent power S
n
(Y‑axis).
4 "Active Power
(% of Nominal
Apparent
Power)"
0 % ‑ 100 % Effective power in percent
[%] related to the nominal ap-
parent power S
n
(X‑axis).
"Reactive Power
(% of Nominal
Apparent
Power)"
-100 % ‑ 100 % Reactive power in percent [%]
related to the nominal appar-
ent power S
n
(Y‑axis).

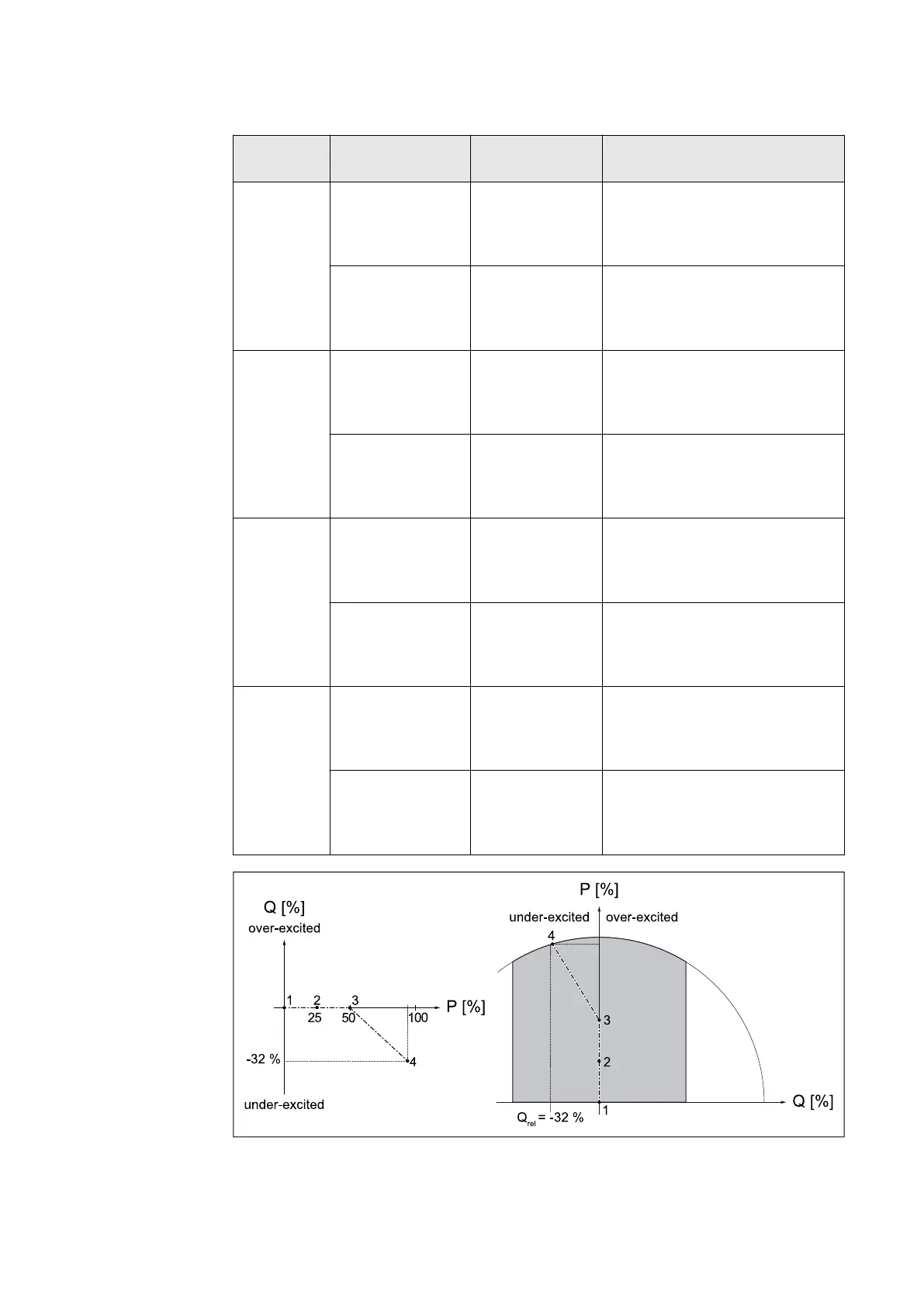

Example: Curve defined by four data points.
1 P = 0 %, Q = 0 %
2 P = 25 %, Q = 0 %
68

Fronius GEN24 Specifications

General

Type	Hybrid Inverter
Power Range	3.0 kW to 10.0 kW
Max. DC input voltage	1000 V
Number of MPP Trackers	2
Operating Temperature Range	-25°C to +60°C
Efficiency	98.2%
MPPT voltage range	200 - 800 V
Interfaces	Wi-Fi / Ethernet / USB / RS485
Warranty	5 years (extendable)
Cooling	Active cooling
