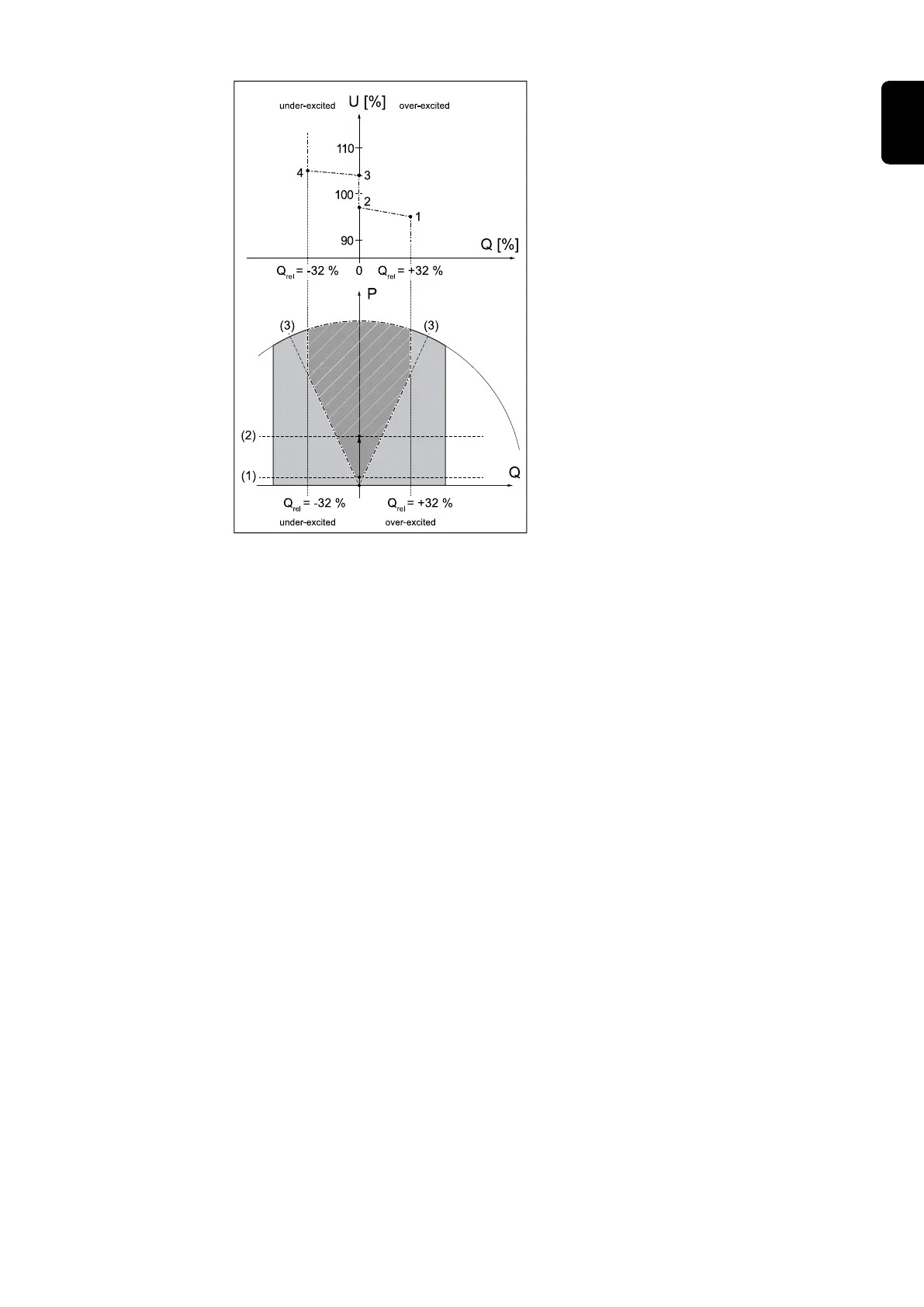

Example: Curve defined by four data points.
1 U = 95 %, Q = 32 %
2 U = 97 %, Q = 0 %
3 U = 104 %, Q = 0 %
4 U = 105 %, Q = -32 %
(1) Lock-Out P-Dependent (% of
Nominal Apparent Power) = 5 %
(2) Lock-In P-Dependent (% of
Nominal Apparent Power) =
30 %
(3) Cos φ minimum = 0.9
