EMI COMP
Compensation of the EMC filter during operation
ON / OFF / N.A.
MIX MODE
DC operating mode
*** alternating display
N.A. not available
- Press 'Enter' to display the respective value
- Press 'Esc' to exit the displayed value

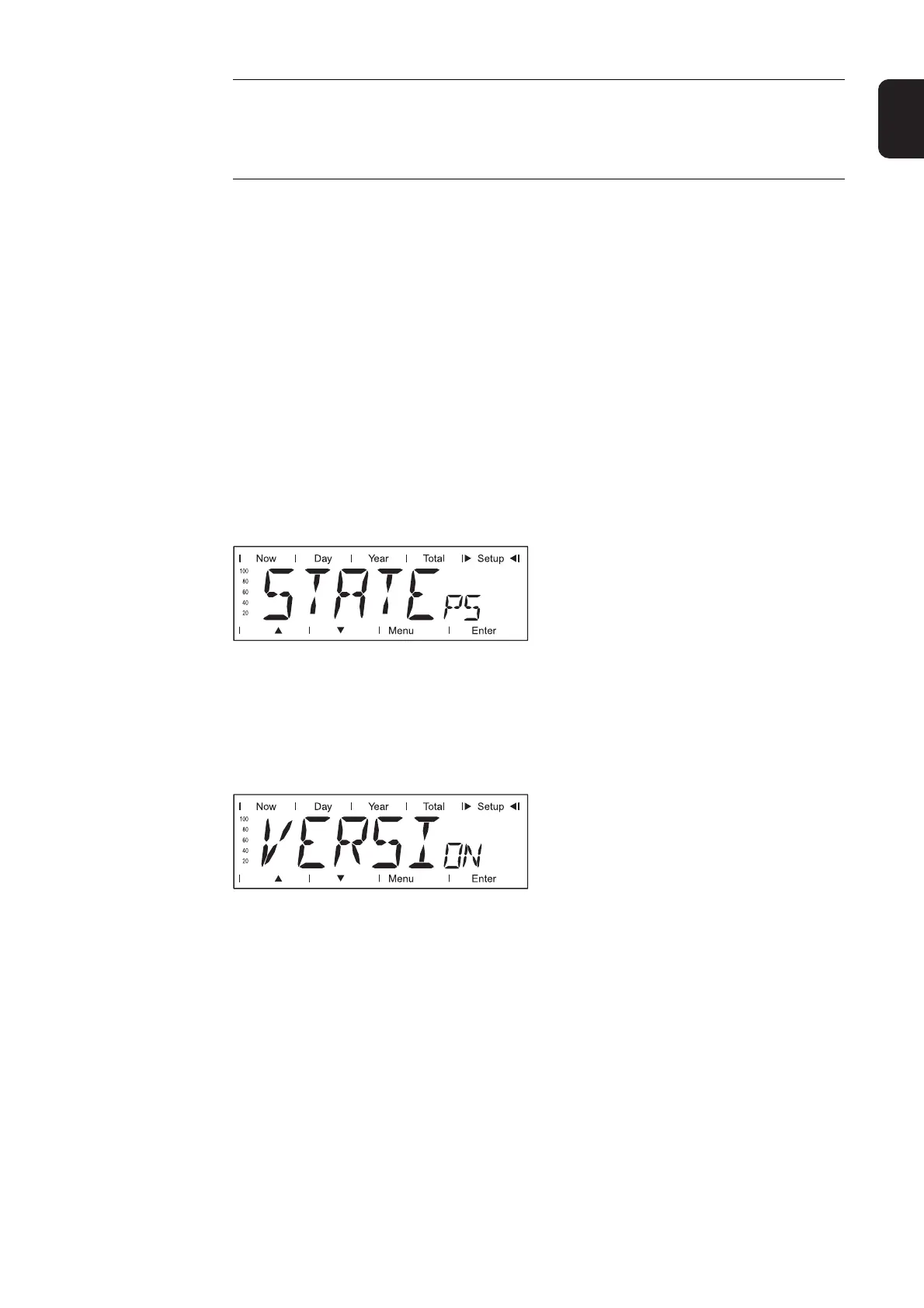

STATE PS
Status display of power stage sets; the last
error that has occurred can be displayed
VERSION
Displays the version number and serial
number of electronic components (e.g., IG
Brain, power stage sets, display, country
setup)
FULL / LVRT*** "Low Voltage Ride Through"
Function for bridging a grid voltage gap that was caused by grid
voltage parameters outside of the limits
ON / OFF / N.A.
IMPORTANT! Due to the low level of irradiance early in the morning and in the evening,
the status codes 306 (power low) and 307 (DC low) are displayed routinely at these times
of day. These status messages do not indicate any kind of fault.
Unit -
Display area MAIN CTRL / LCD / PS (PS00, PS01, PS02) / SETUP
Factory setting -
MAINCTRL Version data of IG Brain unit (inverter control)
LCD Display version data
PS Power stage set version data (PS00 - max. PS02)
SETUP Display of current country setup
The current country setup is displayed (2-3 letters) by pressing
the "Enter" key, e.g., "DE" for Germany country setup;
Exit the Country Setup display by pressing the "Esc" key
