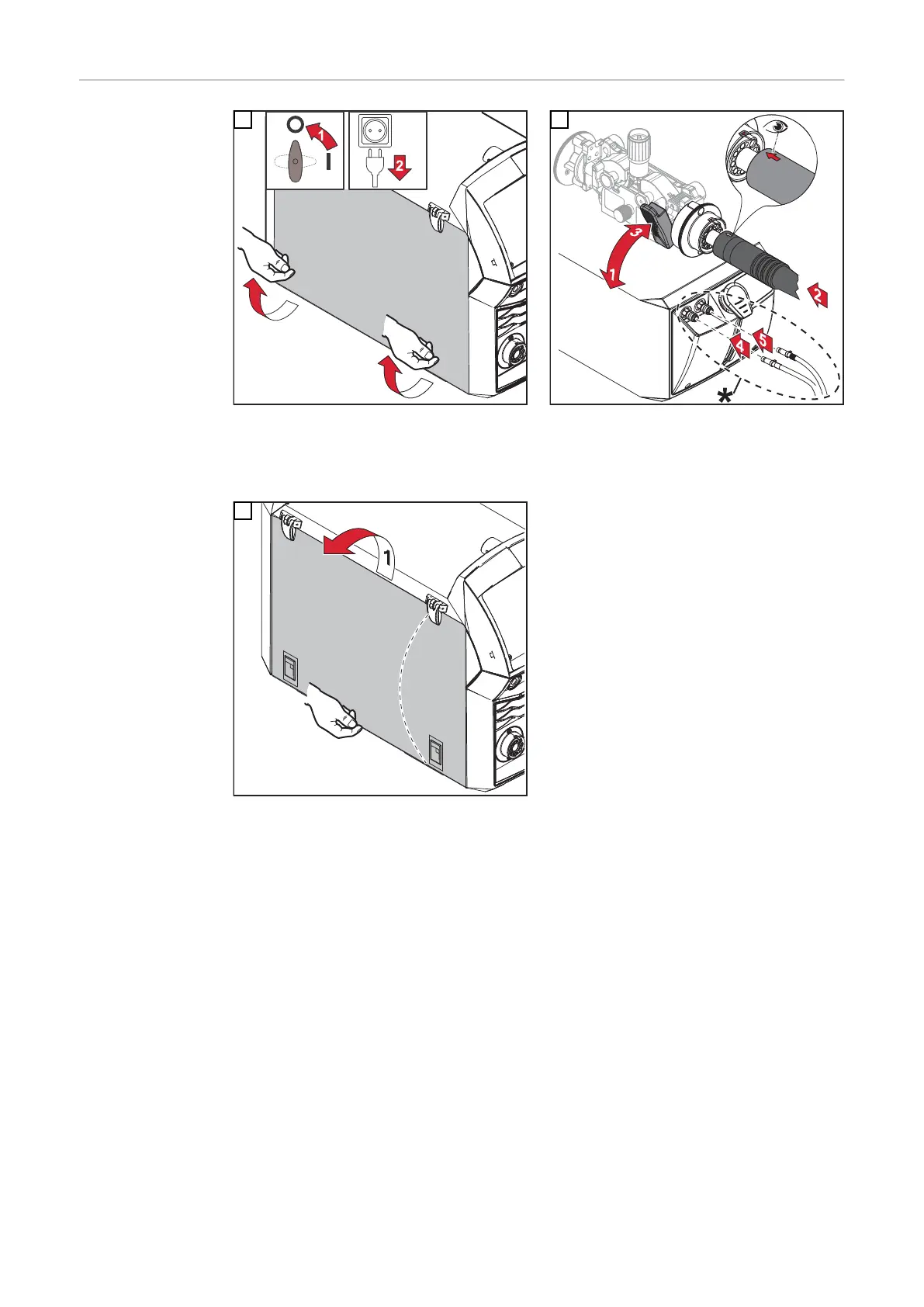

Fronius MTB 200i G ML/L268/flex - Connecting the welding torch to the power source and the cooling unit

Connecting the
welding torch to
the power source
and the cooling
unit
3
3
1 2
* Only if the optional coolant connections are fitted in the cooling unit and when
using a water-cooled welding torch.
Always connect the coolant hoses according to their colour coding.
3
44
