Fronius Primo GEN24 4.0 User Manual

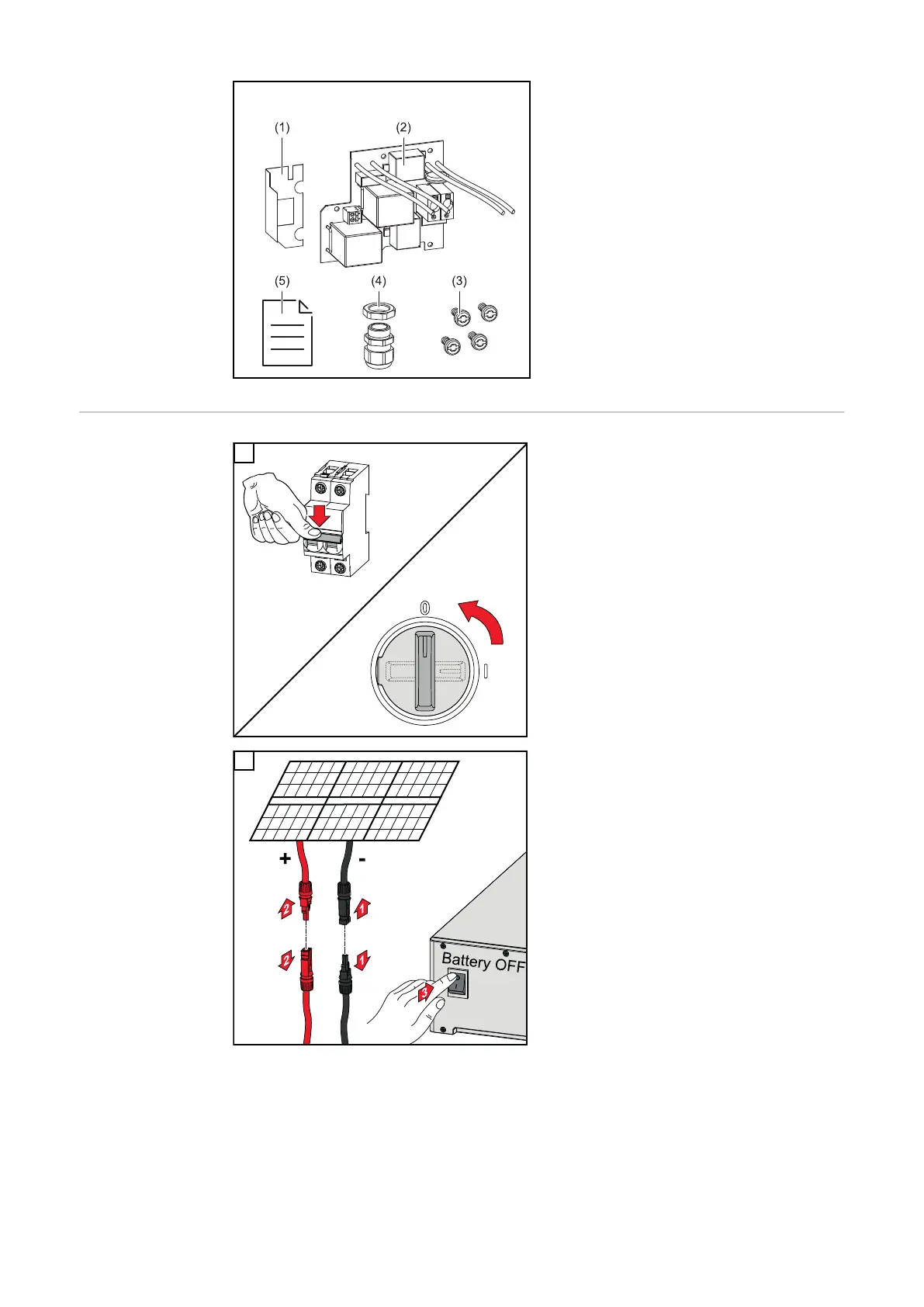

1.
Insulation film
2.
PV Point Comfort
3.
4 TX20 screws
4.
Cable gland
5.
User Information
De-energising
the inverter
AC~
OFF
1
ON
OFF
2
1
Turn off the automatic circuit breaker.
Set the DC disconnector to the "Off"
switch position.
2
Disconnect connections from the solar
module strings (+/-). Switch off the
battery connected to the inverter.
Wait for the capacitors of the inverter
to discharge (2 minutes).
162

Fronius Primo GEN24 4.0 Specifications

General

Model	Fronius Primo GEN24 4.0
Type	Hybrid Inverter
Rated Power	4.0 kW
Dimensions	530 x 474 x 165 mm
IP Rating	IP66
Grid frequency	50 / 60 Hz
THD	< 3%
Number of MPP trackers	2
Max. input current per MPP tracker	12 A
Maximum Input Voltage	600 V
Operating Temperature Range	-25°C to +60°C
Communication Interfaces	Ethernet
Max. apparent AC power	4.6 kVA
Max. DC power	6 kW
Cooling	Active cooling
Warranty	5 years
