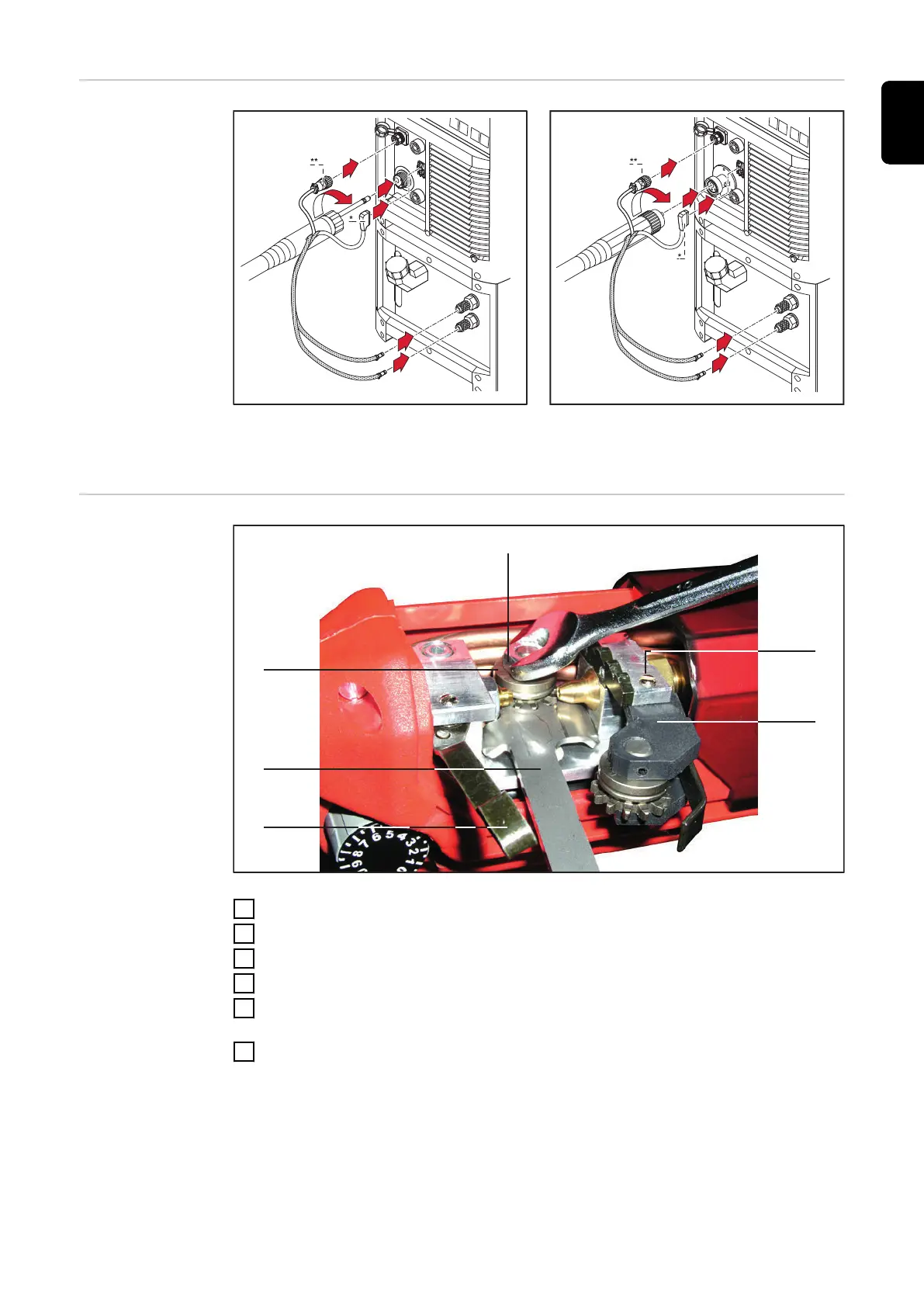

Connecting up
the welding
torch
2
3
3
1
4
4
2
3
3
1
4
4
* Standard plug (Standard or Up/Down torches)
** JobMaster plug (JobMaster welding torches)
Replace Feed
Rolls
(1)
(3)
(4)
(5)
(6)
(2)
1
Unscrew pressure lever (1)
2
Unscrew axle (2) using slotted screwdriver
3
Remove complete unit (3)
4
Fix drive roll (4) using driving gear key (5) provided
5
Unscrew hexagon nut (6) using open-ended spanner - spanner size 10 mm
(.394 in.)
6
Remove drive roll (4)
