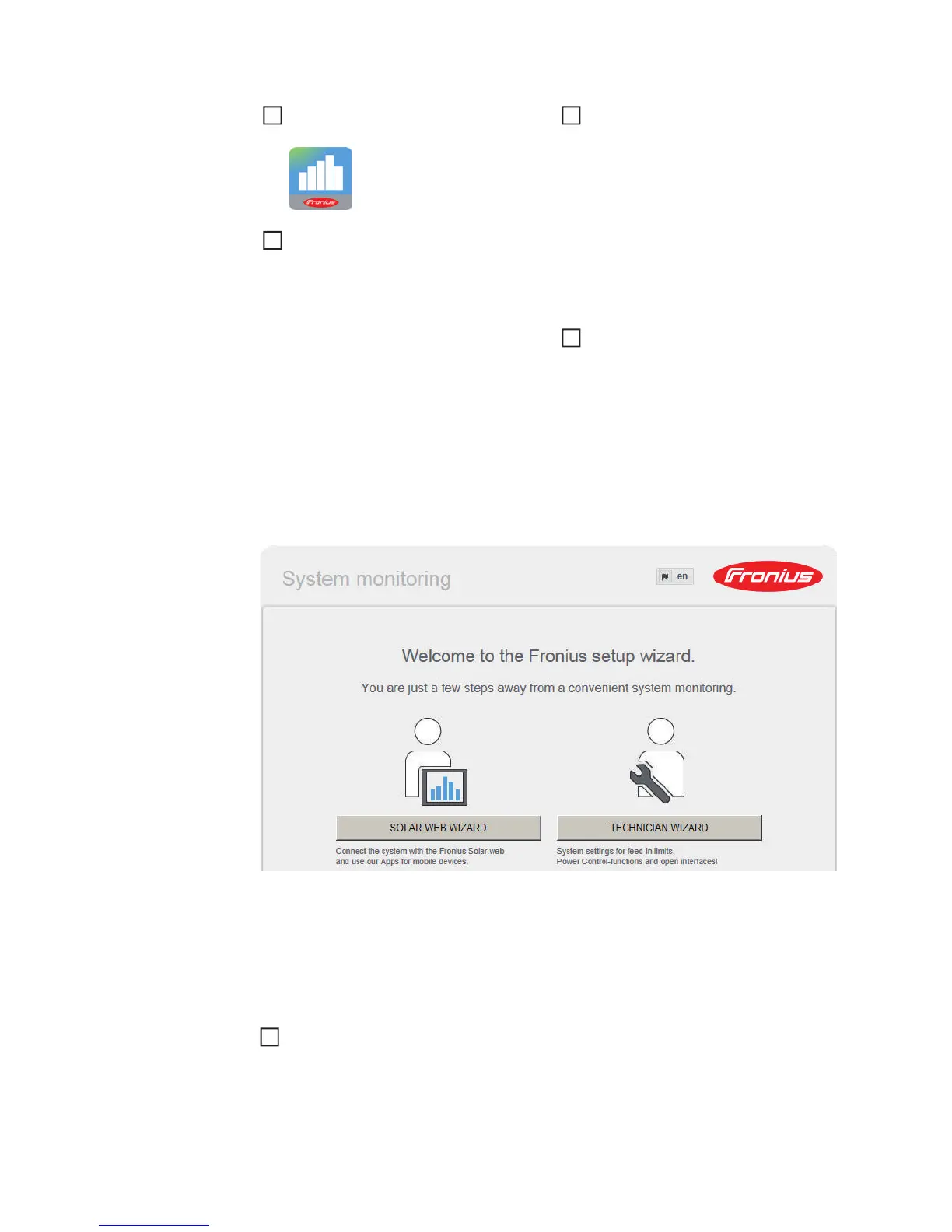

The Setup wizard start page is displayed.
The technician wizard is intended for the installer and contains standard-specific settings.
Running the technician wizard is optional.
If the technician wizard is run, it is vital to note the service password that is issued. This
service password is necessary for setting the EVU Editor menu item.
If the technician wizard is not run, no specifications regarding power reduction are set.
Running the Solar Web wizard is mandatory.
Run the Solar Web wizard and follow the instructions.
The Fronius Solar.web homepage is displayed,
or
the Fronius Datamanager 2.0 web page is displayed.
Installation using the Solar.web App Installation using a web browser
Download the Fronius Solar.web
App.
Run the Fronius Solar.web App.
Connect the end device to the WLAN
access point
SSID = Fronius_240.xxxxx (5-8 dig-
its)
- Search for a network with the
name "Fronius_240.xxxxx"
- Establish a connection to this
network.
- Enter the password 12345678.
(Alternatively, connect the end device
and inverter using an Ethernet cable.)
Enter the following in the browser:
http://datamanager
or
192.168.250.181 (IP address for
WLAN connection)
or
169.254.0.180 (IP address for LAN
connection).
4
5
4
5
6

Fronius Symo 10.0-3-M Specifications

General

Max. output current	16.7 A
Max. input voltage	1000 V
MPP voltage range	200 - 800 V
Number of MPP trackers	2
Protection class	IP 65
AC voltage range	150 - 280 V
Frequency	50 / 60 Hz
THD	< 3 %
AC Nominal Power	10000 W
MPPT Voltage Range	200 - 800 V
AC Frequency	50 / 60 Hz
AC nominal output	10000 W
Max. apparent AC power	10000 VA
DC input voltage range	200-1000 V
Operating Temperature	-25°C to +60°C
Dimensions (W x H x D)	725 x 510 x 225 mm
AC nominal voltage	3 x 230 / 400 V
